UGC DOR5983582
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$469.37 CAD - $469.37 CAD
$469.37 CAD
$469.37 CAD - $469.37 CAD
$469.37 CAD

Vendu en lots de : 1

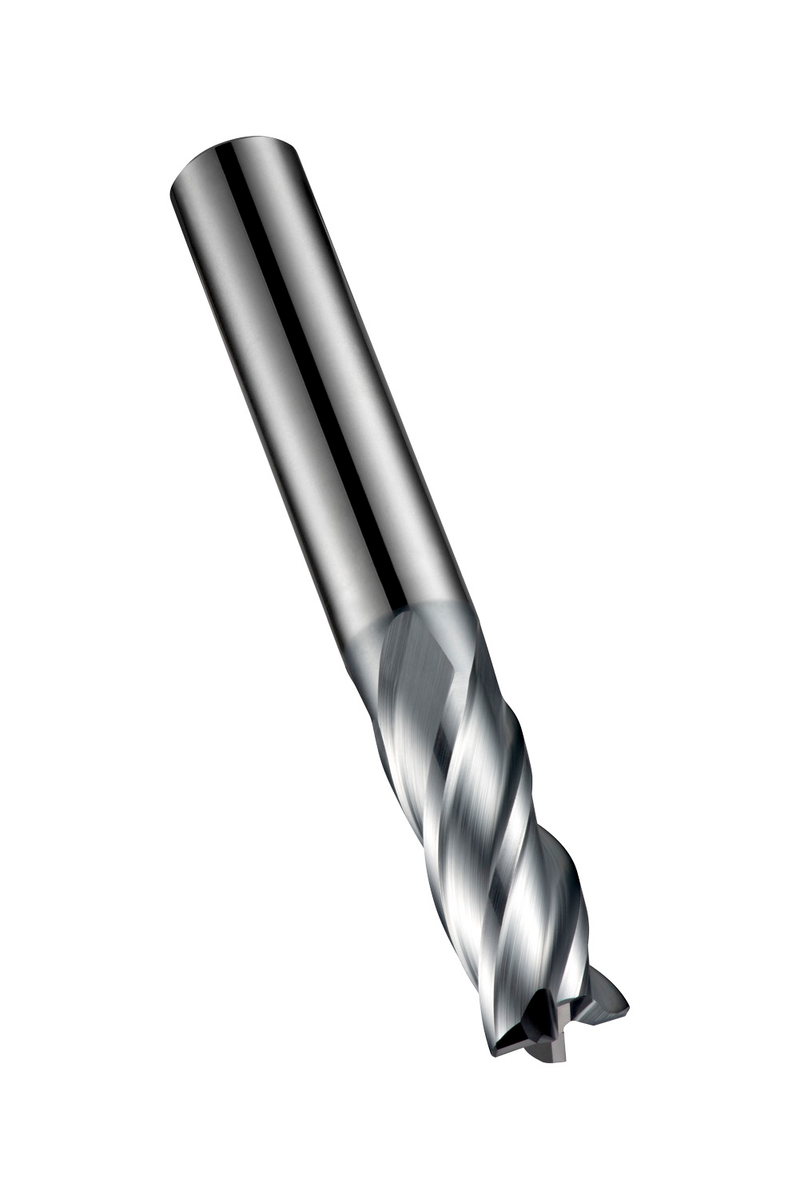

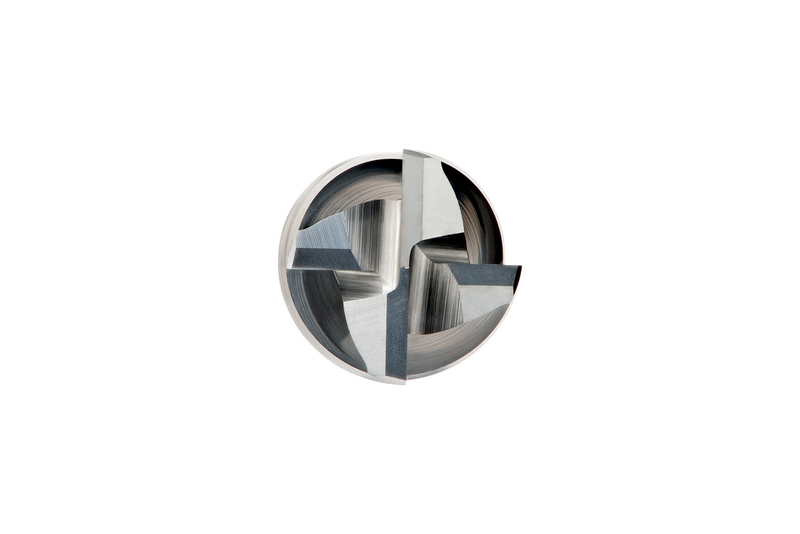

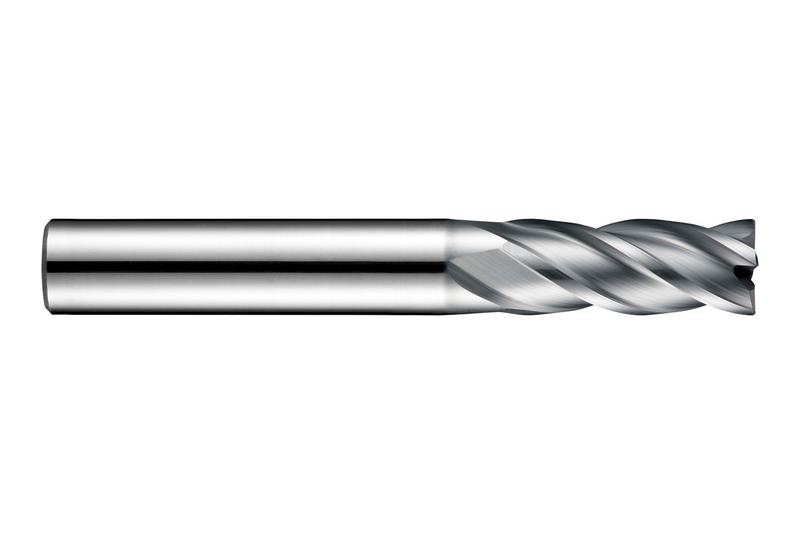

Fraise en bout série courte 4 dents, diamètre 25mm avec longueur de coupe 45mm, longueur totale 121mm et chanfrein d'angle 0.3mm à 45°, selon la norme DIN 6527 L avec queue cylindrique 25mm, en carbure monobloc avec revêtement AlCrN, hélice 34° et angle de dépouille 9° pour le fraisage d'épaulement et le plongement dans l'acier et l'acier moulé, l'acier inoxydable ferritique et martensitique, la fonte et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI)S814HA25.0
Product Name (ISO)S814HA25,0
GradeAlCrN
Product Number5983582
Product FamilyS814HA
Insert Geometry

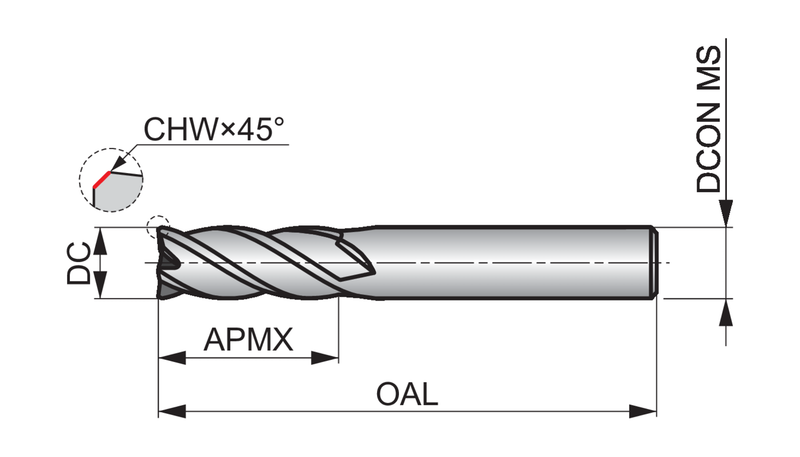

Depth of Cut Max — in (APMX)1.7717"
Depth of Cut Max — mm (APMX)45.0 mm
Dimensions
Cutting Diameter — in (DC)0.9843"
Cutting Diameter — mm (DC)25.0 mm
Overall Length — in (OAL)4.7638"
Overall Length — mm (OAL)121.0 mm
Connection Dia. — in (DCON)0.9843"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6527 L
Reference Numbers
EDP Number642603
EAN7320760642603
File Type Download
S814HA25.0 — 3D Model STP Download
S814HA25.0 — 2D Model DXF Download
S814HA25.0 — Line Drawing PDF Download
