S804HB20.0
S804HB20.0
S804HB20.0
S804HB20.0

S804HB20.0

UGC DOR5983584
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$403.30 CAD - $403.30 CAD
$403.30 CAD
$403.30 CAD - $403.30 CAD
$403.30 CAD

Vendu en lots de : 1

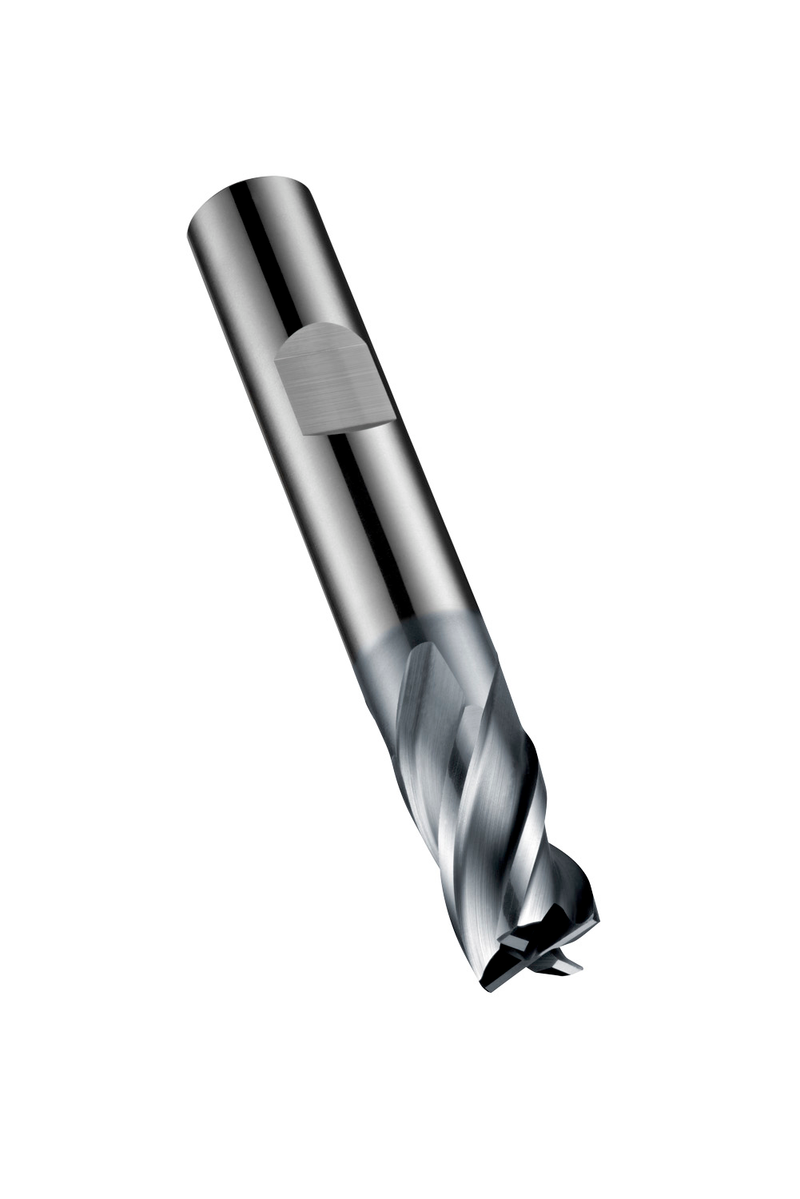

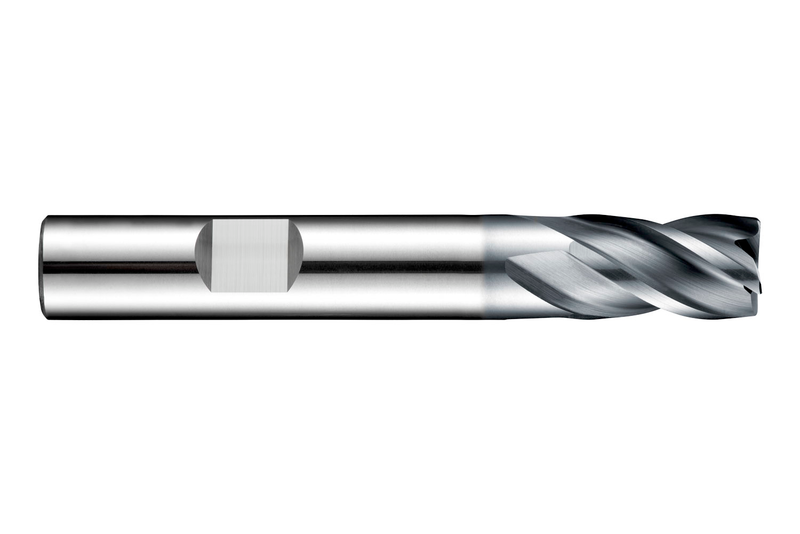

Fraise en bout série extra-courte à 4 dents, diamètre 20mm avec 26mm de longueur de coupe, 92mm de longueur totale et chanfreins d'angle de 0,3mm à 45°, selon la norme DIN 6527 K avec une queue Weldon de 20mm, carbure monobloc avec revêtement AlCrN, hélice de 34° et angle de dépouille de 9° pour le fraisage d'épaulement et le plongement dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S804HB20.0
GradeAlCrN
Product Number5983584
Product FamilyS804HB

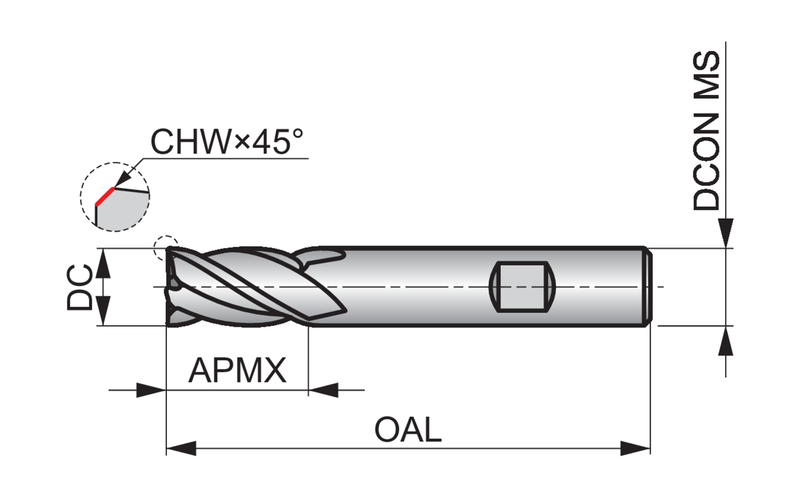

Insert Geometry
Depth of Cut Max — in (APMX)1.0236"
Depth of Cut Max — mm (APMX)26.0 mm
Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)3.622"
Overall Length — mm (OAL)92.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm

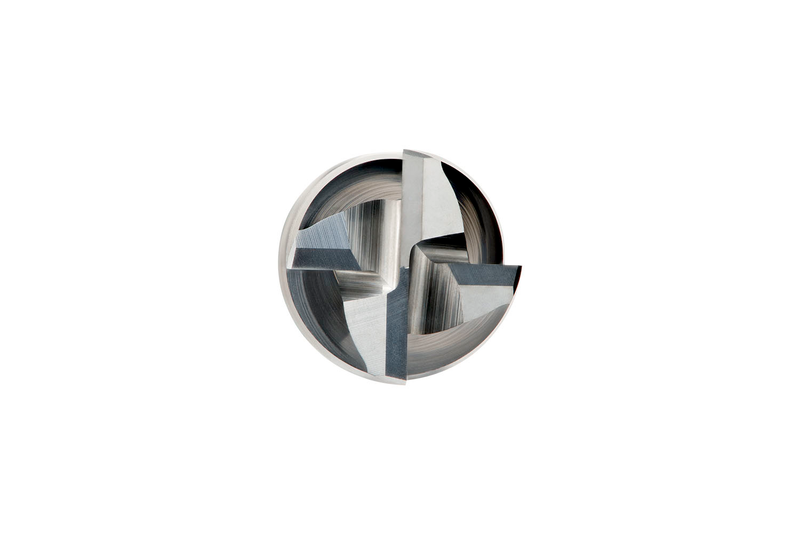

Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardDIN 6527 K
Reference Numbers
EDP Number641804
EAN7320760641804
File Type Download
S804HB20.0 — 3D Model STP Download
S804HB20.0 — 2D Model DXF Download
S804HB20.0 — Line Drawing PDF Download
