S812HB5.0
S812HB5.0
S812HB5.0
S812HB5.0

S812HB5.0

UGC DOR5983587
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$56.56 CAD - $56.56 CAD
$56.56 CAD
$56.56 CAD - $56.56 CAD
$56.56 CAD

Vendu en lots de : 1

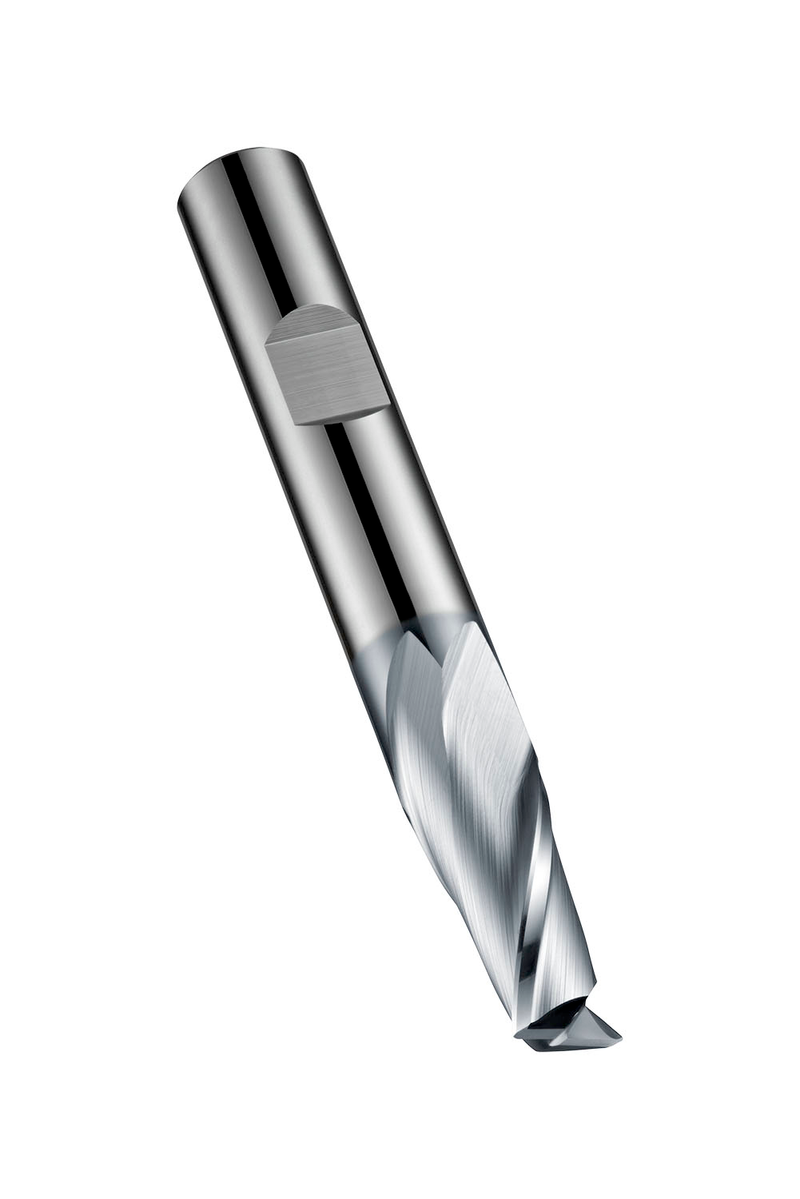

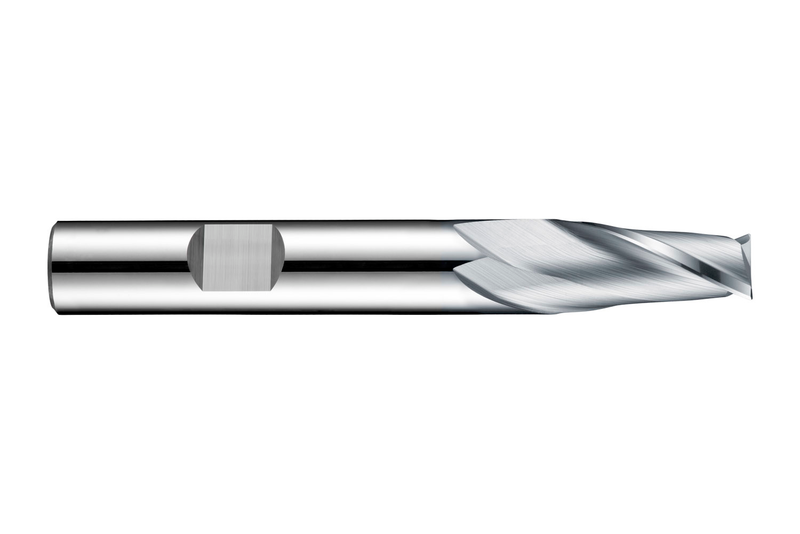

Fraise 2 dents de série courte, diamètre 5mm, longueur de coupe 10mm, longueur totale 57mm et bords à chanfrein de 0,13mm à 45°, selon la norme DIN 6527 L avec queue Weldon 6mm, carbure monobloc avec revêtement AlCrN, hélice 28° et angle de dépouille 9° pour l'usinage de rainures et l'interpolation hélicoïdale dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, l'aluminium corroyé ou moulé, le cuivre ou les alliages de cuivre et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S812HB5.0
GradeAlCrN
Product Number5983587
Product FamilyS812HB
Insert Geometry
Depth of Cut Max — in (APMX)0.3937"
Depth of Cut Max — mm (APMX)10.0 mm

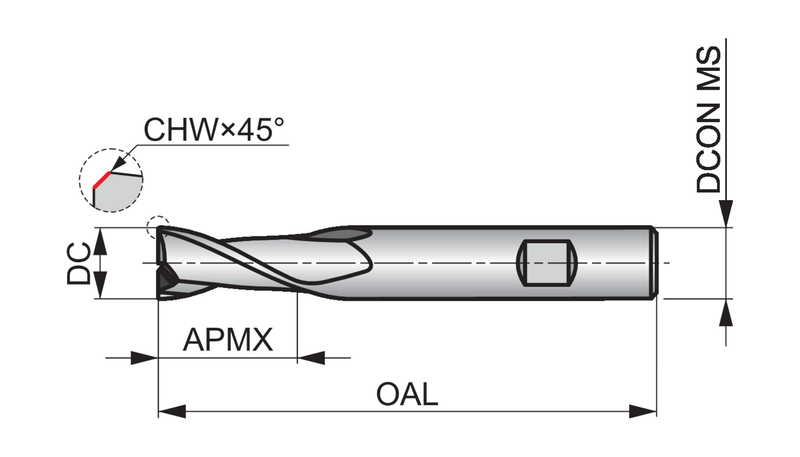

Dimensions
Cutting Diameter — in (DC)0.1969"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)2.2441"
Overall Length — mm (OAL)57.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardDIN 6527 L
Reference Numbers
EDP Number642054
EAN7320760642054
File Type Download
S812HB5.0 — 3D Model STP Download
S812HB5.0 — 2D Model DXF Download
S812HB5.0 — Line Drawing PDF Download
