UGC DOR5983590
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$56.56 CAD - $56.56 CAD
$56.56 CAD
$56.56 CAD - $56.56 CAD
$56.56 CAD

Vendu en lots de : 1

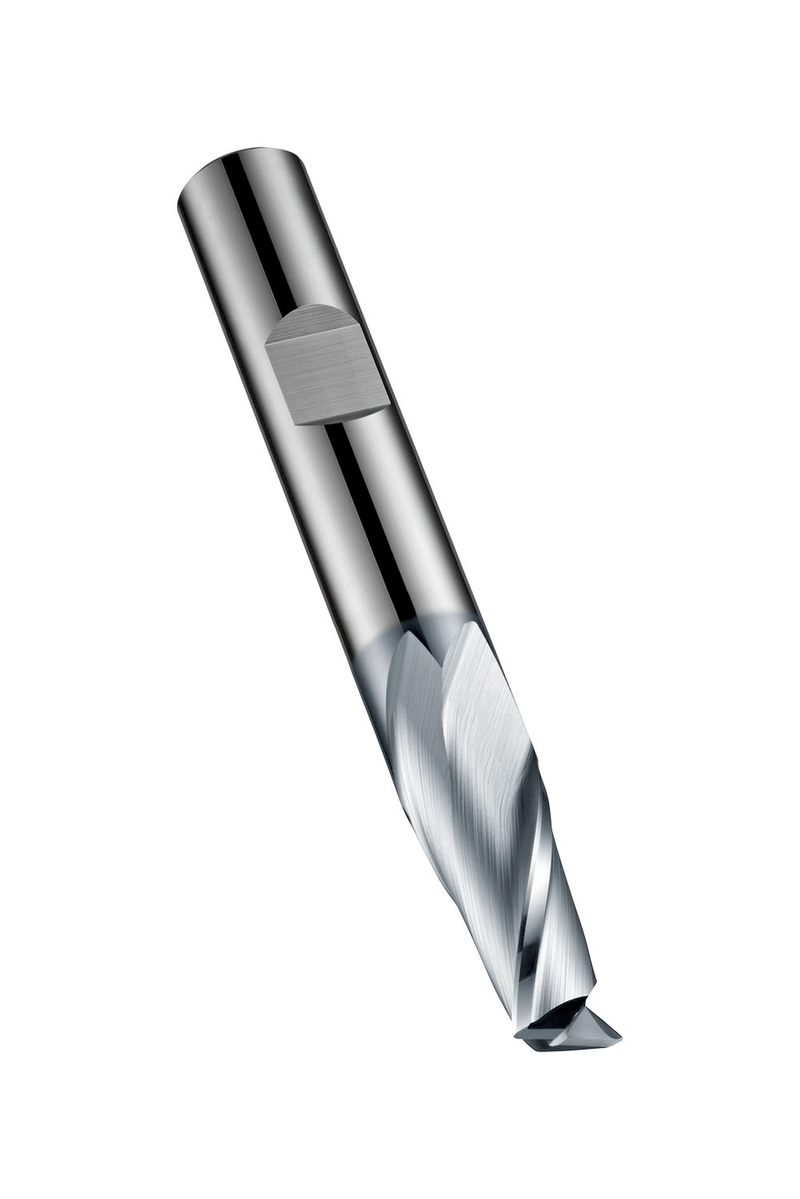

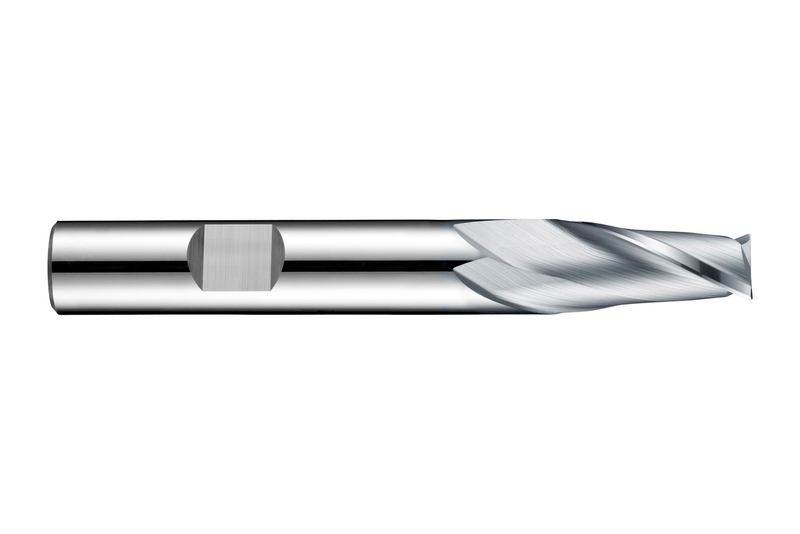

Fraise-scie courte 2 dents, diamètre 6mm, longueur de coupe 10mm, longueur totale 57mm et chanfrein 45° de 0,13mm, selon la norme DIN 6527 L avec queue Weldon 6mm, carbure monobloc avec revêtement AlCrN, hélice 28° et angle de dépouille 9° pour le fraisage de rainures et l'interpolation hélicoïdale dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, l'aluminium corroyé, moulé et le cuivre ou les alliages de cuivre et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S812HB6.0
GradeAlCrN
Product Number5983590
Product FamilyS812HB

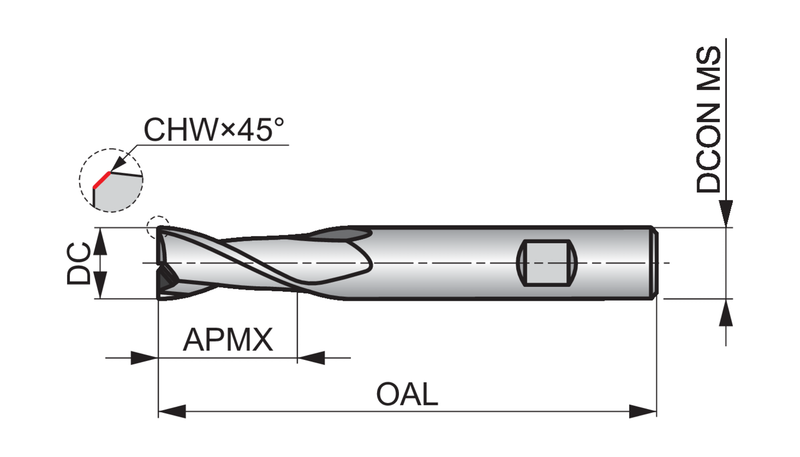

Insert Geometry
Depth of Cut Max — in (APMX)0.3937"
Depth of Cut Max — mm (APMX)10.0 mm
Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)2.2441"
Overall Length — mm (OAL)57.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardDIN 6527 L
Reference Numbers
EDP Number642061
EAN7320760642061
File Type Download
S812HB6.0 — 3D Model STP Download
S812HB6.0 — 2D Model DXF Download
S812HB6.0 — Line Drawing PDF Download
