UGC DOR5983598
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$112.06 CAD - $112.06 CAD
$112.06 CAD
$112.06 CAD - $112.06 CAD
$112.06 CAD

Vendu en lots de : 1

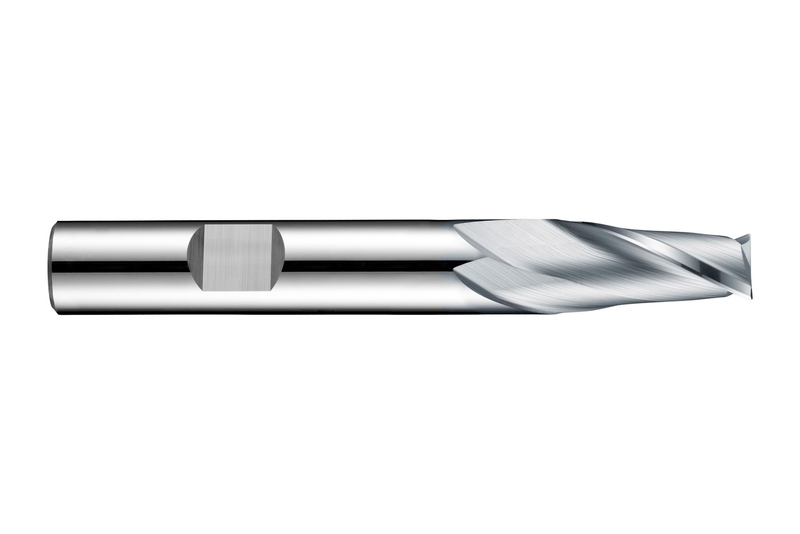

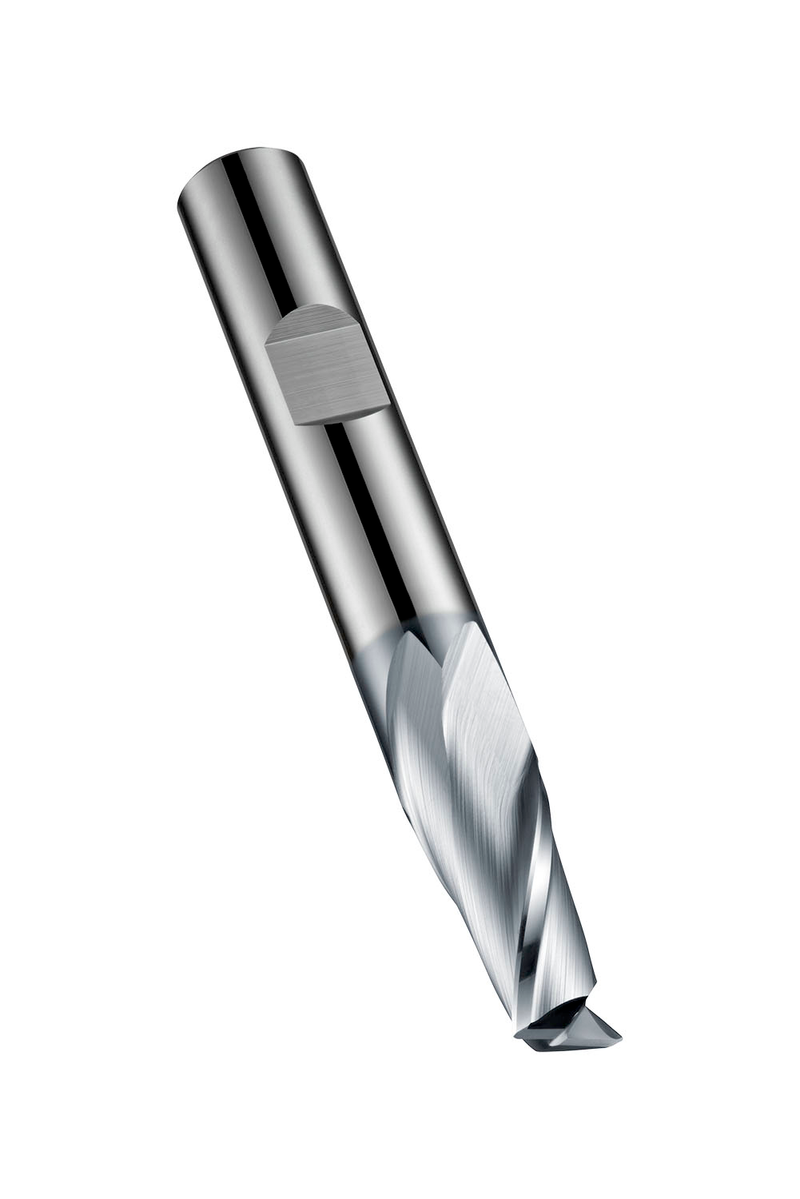

Fraise 2 dents pour rainures, série courte, diamètre 9 mm, longueur de coupe 16 mm, longueur totale 72 mm, chanfrein à 45° de 0,2 mm, selon la norme DIN 6527 L, avec queue Weldon de 10 mm, en carbure monobloc avec revêtement AlCrN, hélice à 28° et angle de dépouille de 9° pour le fraisage de rainures et l'interpolation hélicoïdale dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, l'aluminium corroyé, l'aluminium moulé et le cuivre ou les alliages de cuivre et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S812HB9.0
GradeAlCrN
Product Number5983598
Product FamilyS812HB
Insert Geometry
Depth of Cut Max — in (APMX)0.6299"
Depth of Cut Max — mm (APMX)16.0 mm

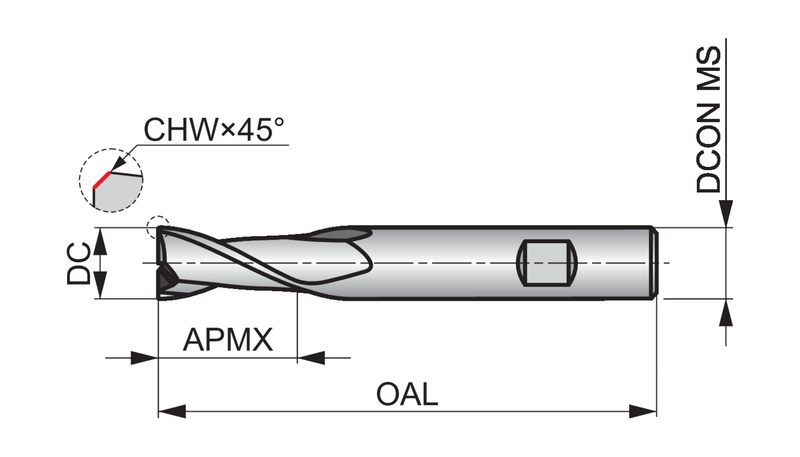

Dimensions
Cutting Diameter — in (DC)0.3543"
Cutting Diameter — mm (DC)9.0 mm
Overall Length — in (OAL)2.8346"
Overall Length — mm (OAL)72.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardDIN 6527 L
Reference Numbers
EDP Number642092
EAN7320760642092
File Type Download
S812HB9.0 — 3D Model STP Download
S812HB9.0 — 2D Model DXF Download
S812HB9.0 — Line Drawing PDF Download
