UGC DOR5983604
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$117.34 CAD - $117.34 CAD
$117.34 CAD
$117.34 CAD - $117.34 CAD
$117.34 CAD

Vendu en lots de : 1

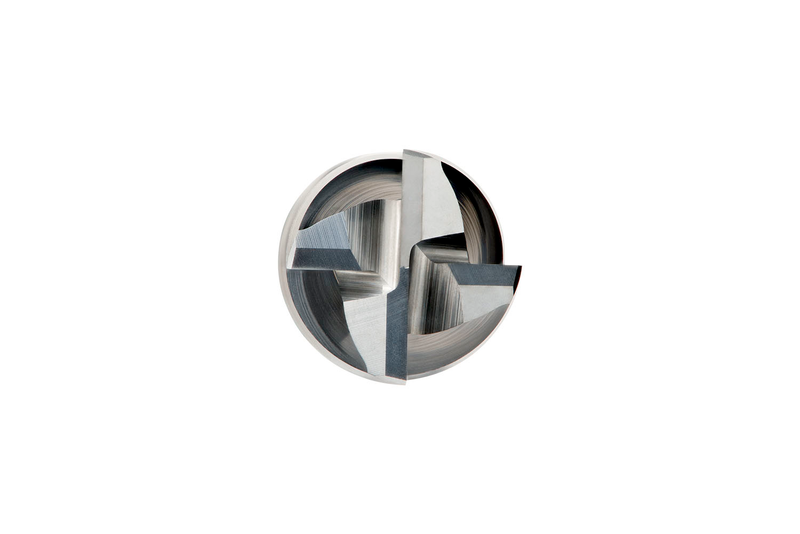

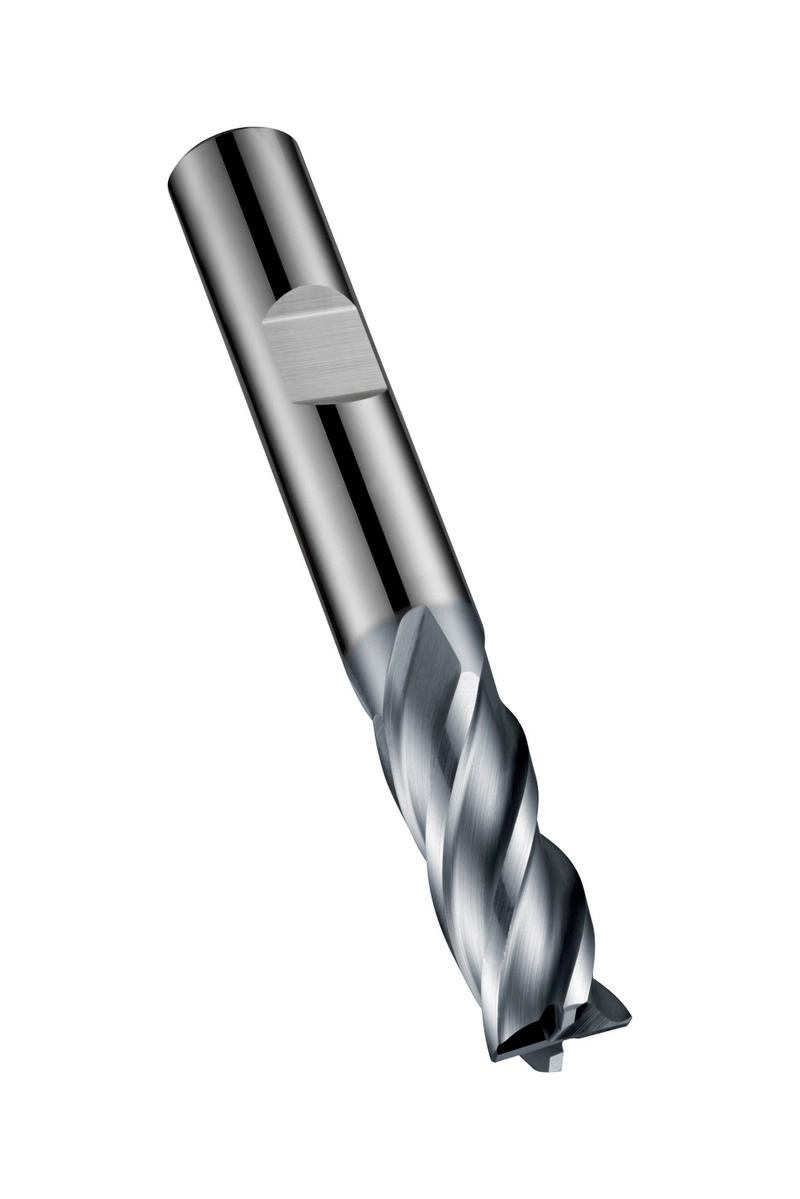

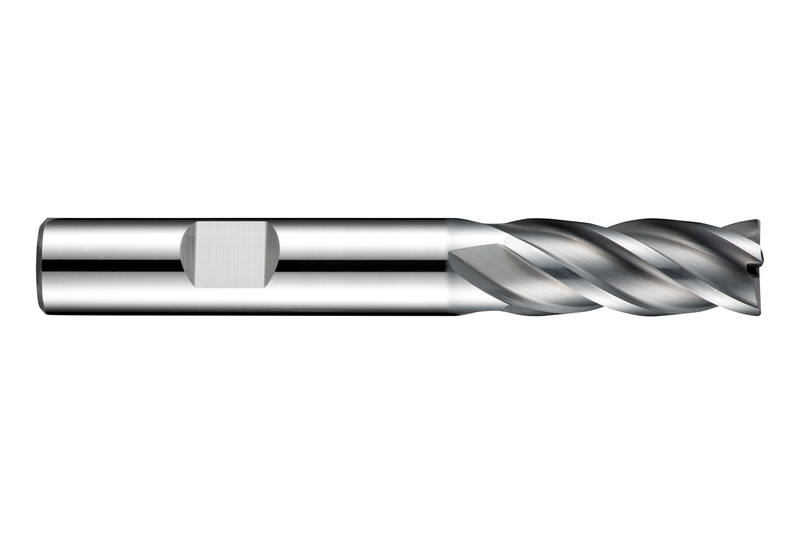

Fraise en carbure monobloc à queue courte, 4 arêtes de coupe, diamètre 10 mm, longueur de coupe 22 mm, longueur totale 72 mm, chanfrein à 45° de 0,2 mm sur les arêtes, conforme à la norme DIN 6527 L, queue Weldon de 10 mm, revêtement AlCrN, hélice 34° et angle de dépouille 9°, pour le fraisage en plongée et d'épaulement dans l'acier et l'acier moulé, l'acier inoxydable ferritique et martensitique, la fonte et le cuivre ou ses alliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S814HB10.0
GradeAlCrN
Product Number5983604
Product FamilyS814HB

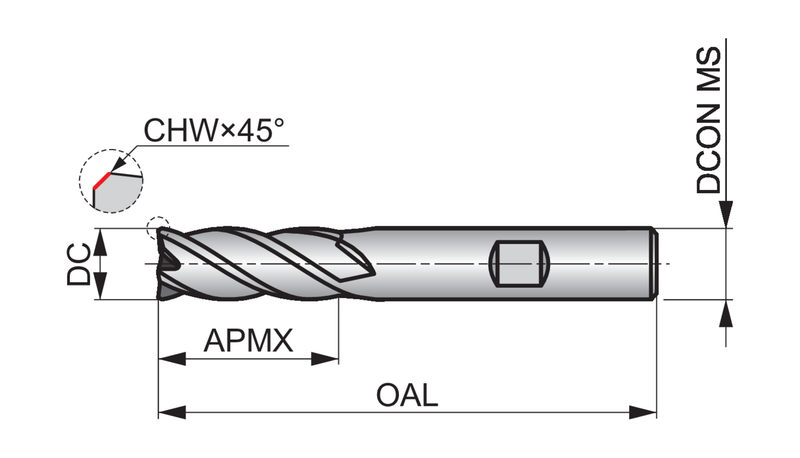

Insert Geometry
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.8346"
Overall Length — mm (OAL)72.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardDIN 6527 L
Reference Numbers
EDP Number642672
EAN7320760642672
File Type Download
S814HB10.0 — 3D Model STP Download
S814HB10.0 — 2D Model DXF Download
S814HB10.0 — Line Drawing PDF Download
