S813HA12.0
S813HA12.0
S813HA12.0
S813HA12.0

S813HA12.0

UGC DOR5983605
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$140.07 CAD - $140.07 CAD
$140.07 CAD
$140.07 CAD - $140.07 CAD
$140.07 CAD

Vendu en lots de : 1

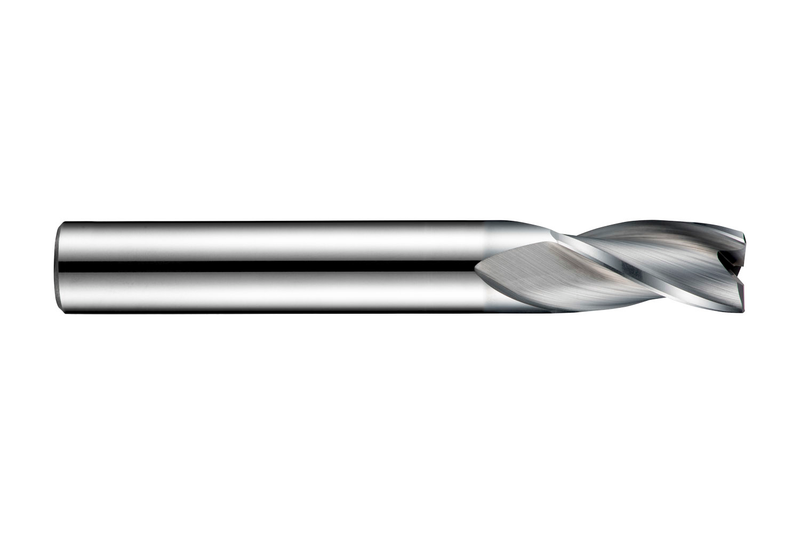

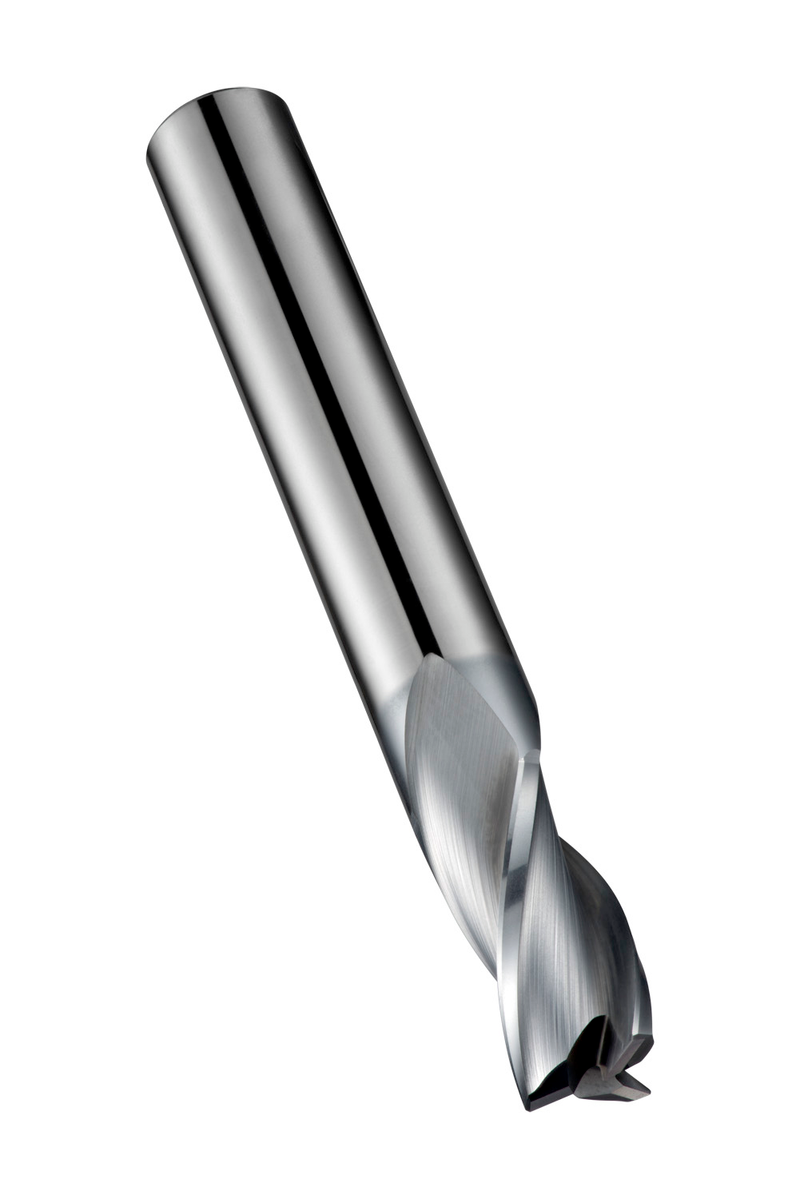

Fraise-scie à rainurer série courte à 3 dents, diamètre de 12 mm avec longueur de coupe de 22 mm, longueur totale de 83 mm et coins chanfreinés à 45° de 0,2 mm, conforme à la norme DIN 6527 L avec queue cylindrique de 12 mm, carbure monobloc avec revêtement AlCrN, hélice de 28° et angle de dépouille de 9° pour le fraisage en bout, le plongement, le fraisage de rainures et le fraisage en rampe dans l'acier et l'acier moulé, l'acier inoxydable ferritique et martensitique, la fonte et l'aluminium moulé et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S813HA12.0
GradeAlCrN
Product Number5983605
Product FamilyS813HA
Insert Geometry
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm

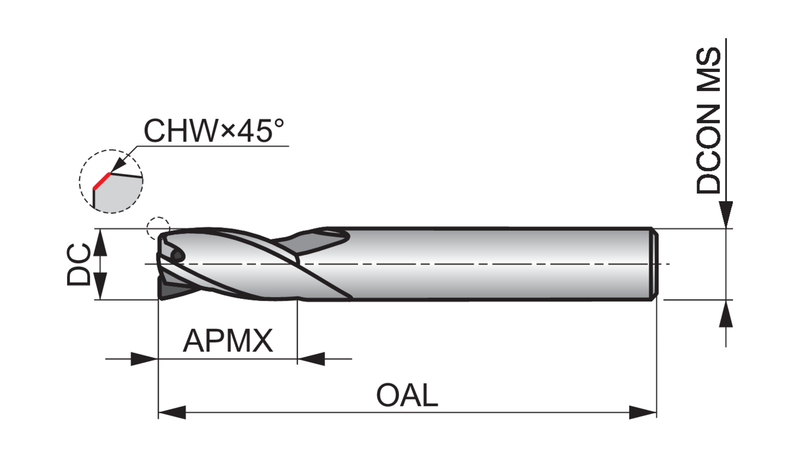

Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)3.2677"
Overall Length — mm (OAL)83.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm

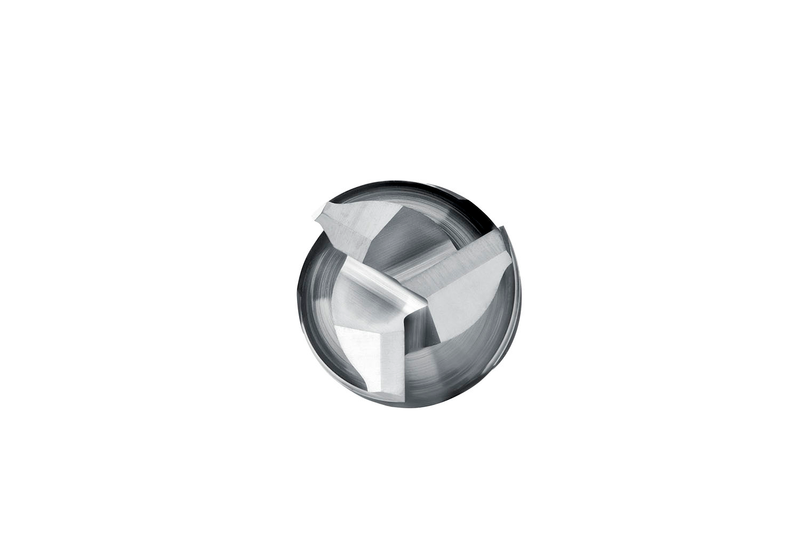

Number of Flutes (NOF)3
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6527 L
Reference Numbers
EDP Number642283
EAN7320760642283
File Type Download
S813HA12.0 — 3D Model STP Download
S813HA12.0 — 2D Model DXF Download
S813HA12.0 — Line Drawing PDF Download
