S813HA16.0
S813HA16.0
S813HA16.0
S813HA16.0

S813HA16.0

UGC DOR5983611
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$229.40 CAD - $229.40 CAD
$229.40 CAD
$229.40 CAD - $229.40 CAD
$229.40 CAD

Vendu en lots de : 1

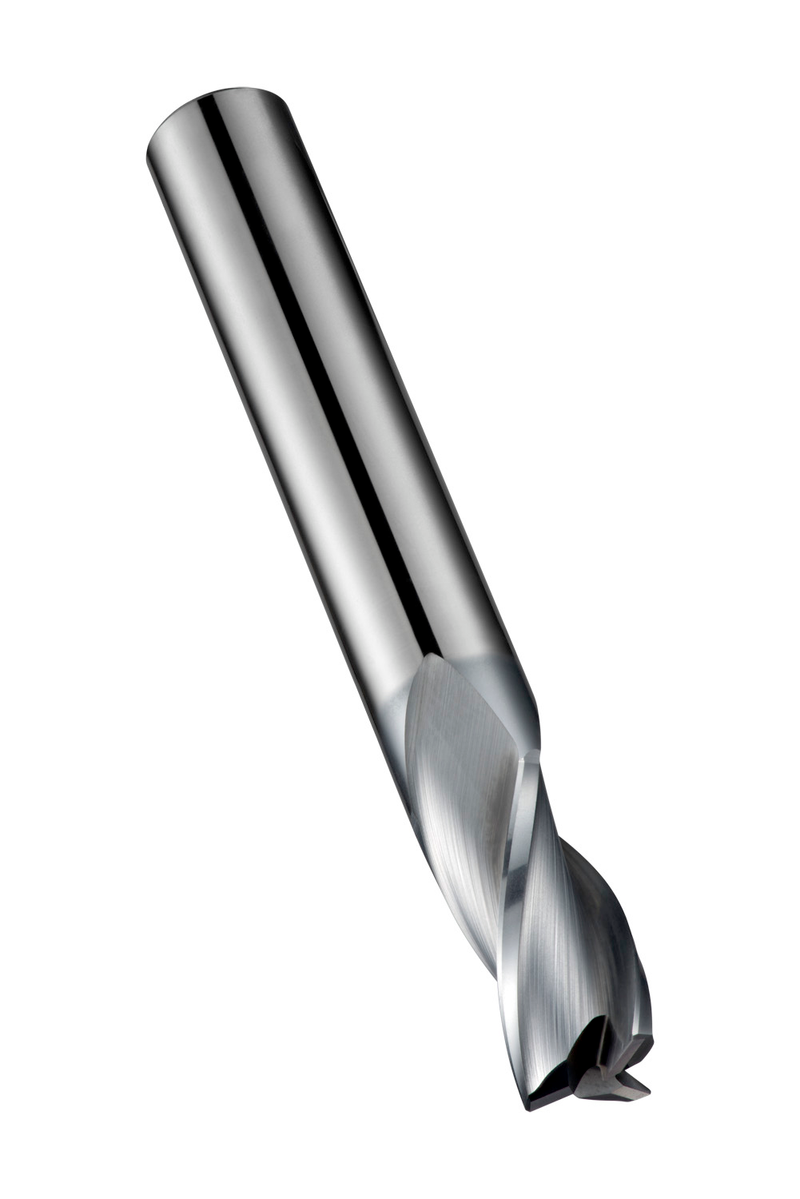

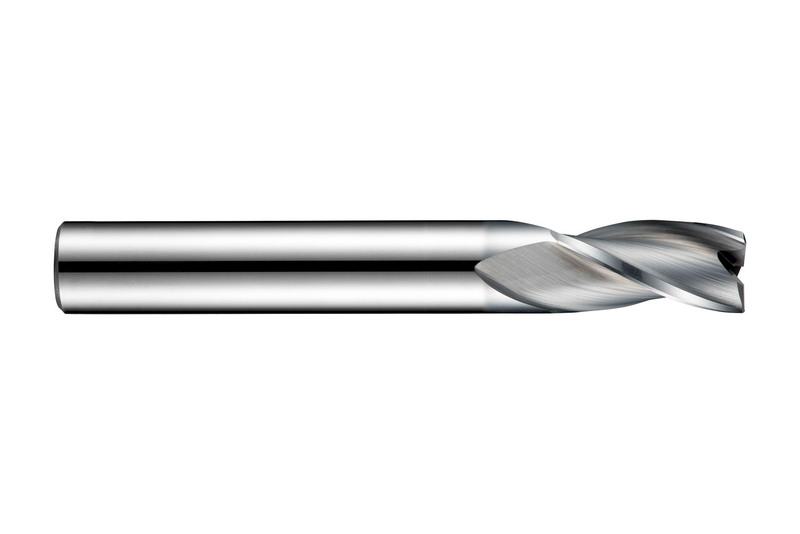

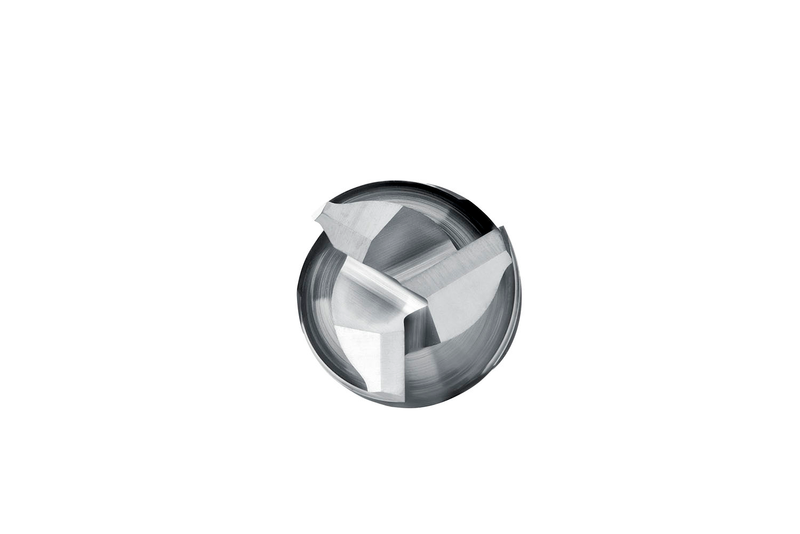

Fraise-scie courte à 3 dents, diamètre 16mm avec 26mm de longueur de coupe, 92mm de longueur totale et des bords d'angle chanfreinés de 0,2mm à 45°, selon la norme DIN 6527 L avec une queue cylindrique de 16mm, carbure monobloc avec revêtement AlCrN, hélice de 28° et angle de dépouille de 9° pour le fraisage d'épaulements, le plongement, le fraisage de rainures et le fraisage en rampe dans l'acier et l'acier moulé, l'acier inoxydable ferritique et martensitique, la fonte et l'aluminium moulé et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S813HA16.0
GradeAlCrN
Product Number5983611
Product FamilyS813HA

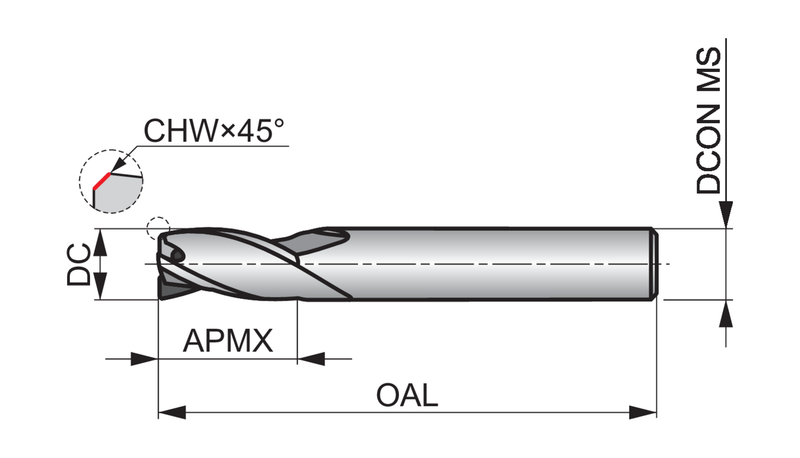

Insert Geometry
Depth of Cut Max — in (APMX)1.0236"
Depth of Cut Max — mm (APMX)26.0 mm
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)3.622"
Overall Length — mm (OAL)92.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6527 L
Reference Numbers
EDP Number642306
EAN7320760642306
File Type Download
S813HA16.0 — 3D Model STP Download
S813HA16.0 — 2D Model DXF Download
S813HA16.0 — Line Drawing PDF Download
