S814HB2.0
S814HB2.0
S814HB2.0
S814HB2.0

S814HB2.0

UGC DOR5983612
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$57.09 CAD - $57.09 CAD
$57.09 CAD
$57.09 CAD - $57.09 CAD
$57.09 CAD

Vendu en lots de : 1

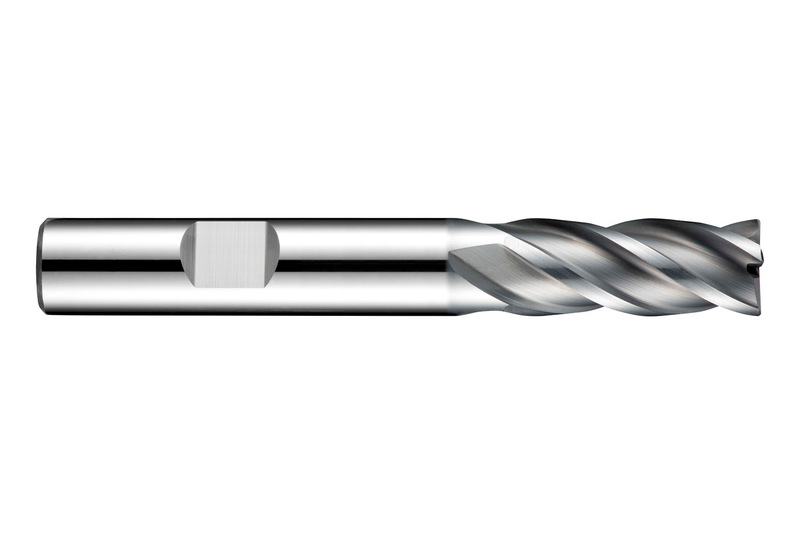

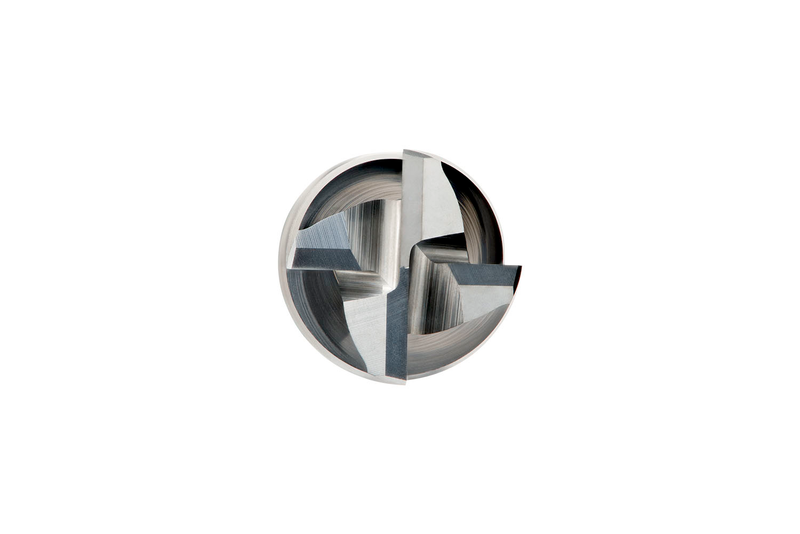

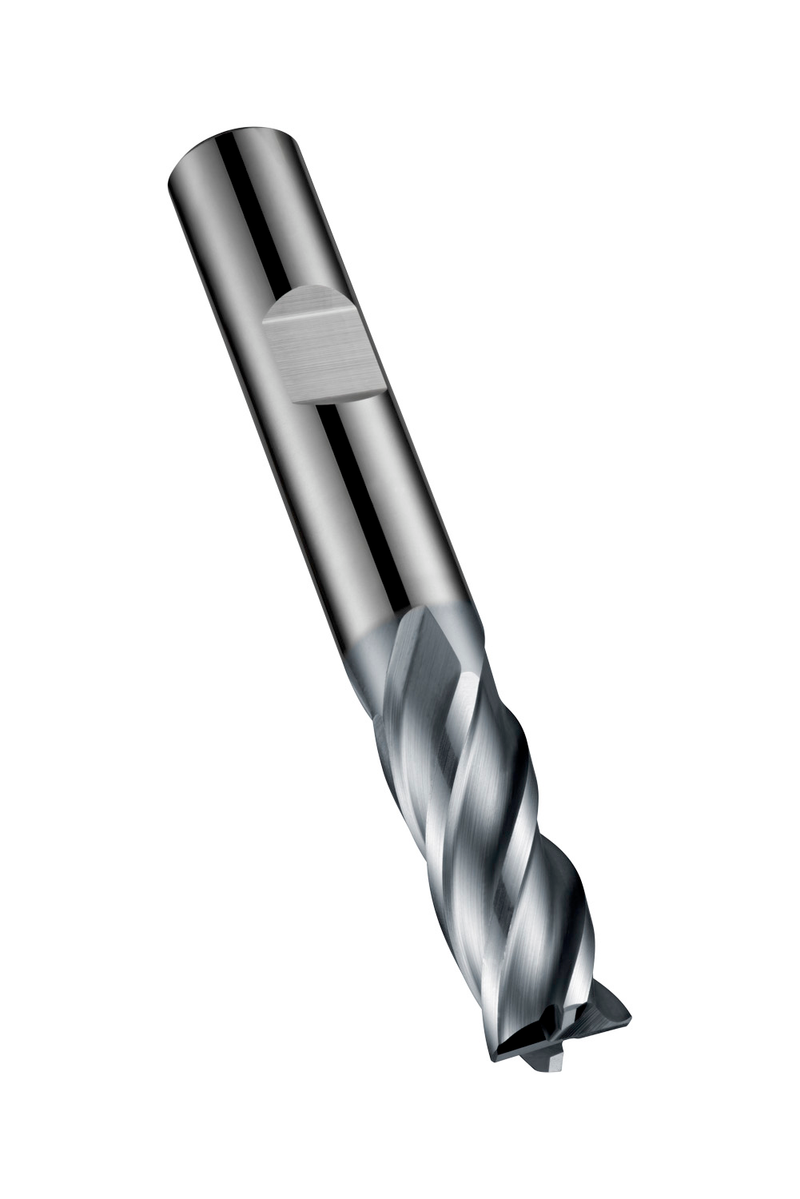

Fraise carbure monobloc à queue courte 4 dents, diamètre 2 mm, longueur de coupe 7 mm et longueur totale 57 mm, conforme à la norme DIN 6527 L avec queue Weldon 6 mm, revêtement AlCrN, hélice 34° et angle de dépouille 9° pour le fraisage d'épaulement et le plonger dans l'acier et l'acier moulé, l'acier inoxydable ferritique et martensitique, la fonte et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S814HB2.0
GradeAlCrN
Product Number5983612
Product FamilyS814HB

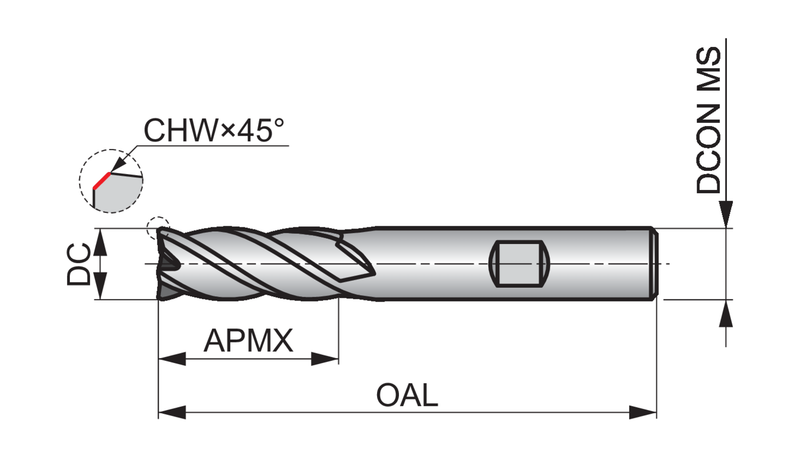

Insert Geometry
Depth of Cut Max — in (APMX)0.2756"
Depth of Cut Max — mm (APMX)7.0 mm
Dimensions
Cutting Diameter — in (DC)0.0787"
Cutting Diameter — mm (DC)2.0 mm
Overall Length — in (OAL)2.2441"
Overall Length — mm (OAL)57.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardDIN 6527 L
Reference Numbers
EDP Number642610
EAN7320760642610
File Type Download
S814HB2.0 — 3D Model STP Download
S814HB2.0 — 2D Model DXF Download
S814HB2.0 — Line Drawing PDF Download
