UGC DOR5983615
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$411.23 CAD - $411.23 CAD
$411.23 CAD
$411.23 CAD - $411.23 CAD
$411.23 CAD

Vendu en lots de : 1

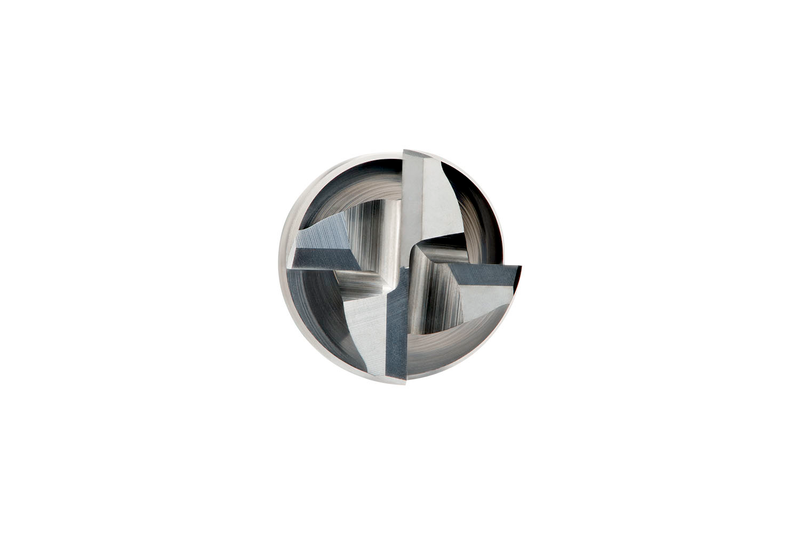

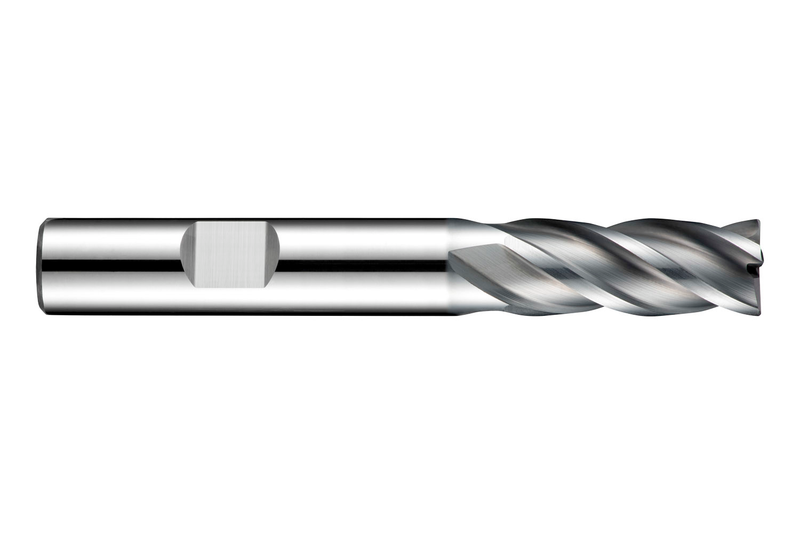

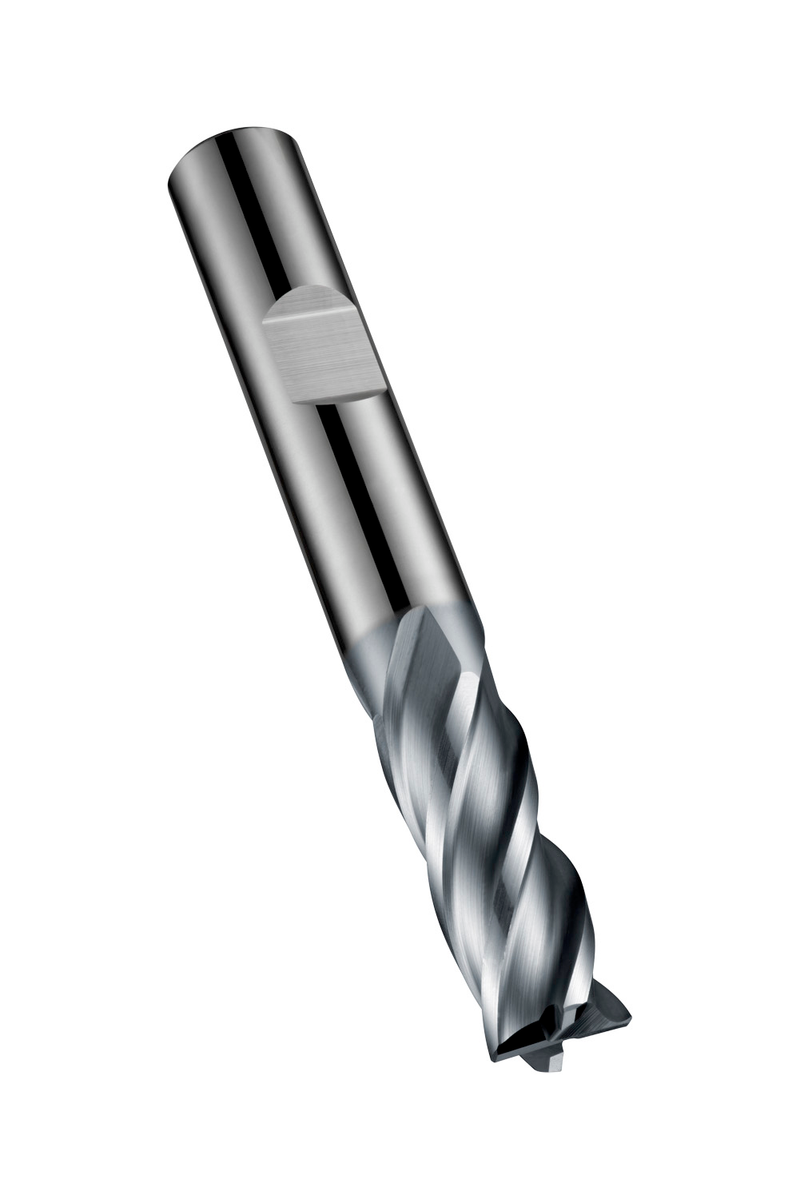

Fraise en bout série courte 4 dents, diamètre 20mm, longueur de coupe 38mm, longueur totale 104mm et chanfrein d'arête à 45° de 0,3mm, selon la norme DIN 6527 L avec un embout Weldon de 20mm, en carbure monobloc avec revêtement AlCrN, hélice à 34° et angle de dégagement à 9° pour le fraisage d'épaulement et le fraisage en plongée dans l'acier et l'acier moulé, l'acier inoxydable ferritique et martensitique, la fonte et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S814HB20.0
GradeAlCrN
Product Number5983615
Product FamilyS814HB

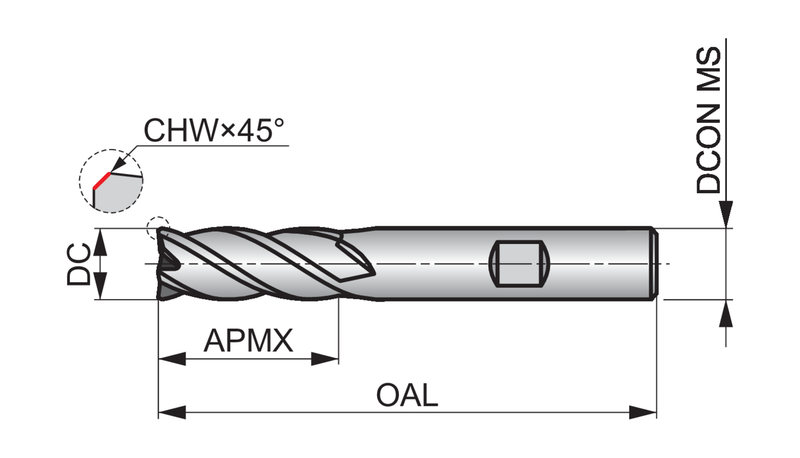

Insert Geometry
Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm
Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)4.0945"
Overall Length — mm (OAL)104.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardDIN 6527 L
Reference Numbers
EDP Number642702
EAN7320760642702
File Type Download
S814HB20.0 — 3D Model STP Download
S814HB20.0 — 2D Model DXF Download
S814HB20.0 — Line Drawing PDF Download
