UGC DOR5983616
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$482.59 CAD - $482.59 CAD
$482.59 CAD
$482.59 CAD - $482.59 CAD
$482.59 CAD

Vendu en lots de : 1

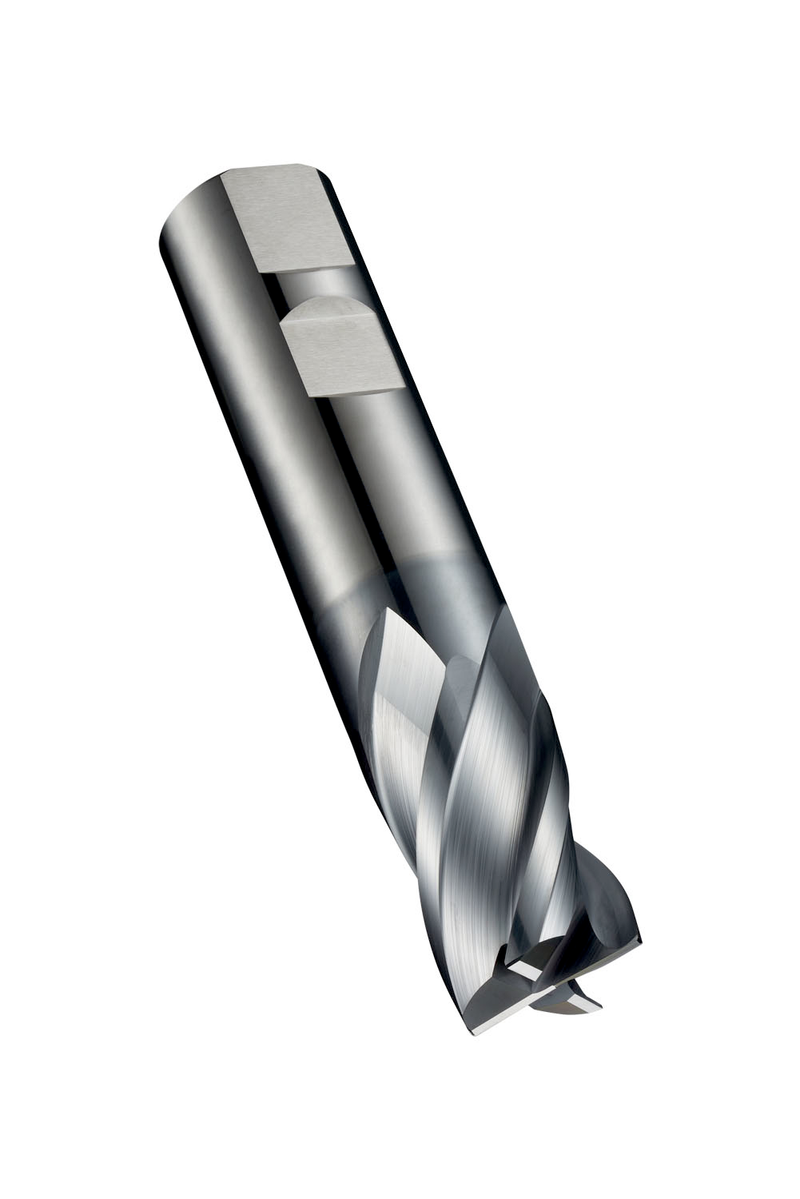

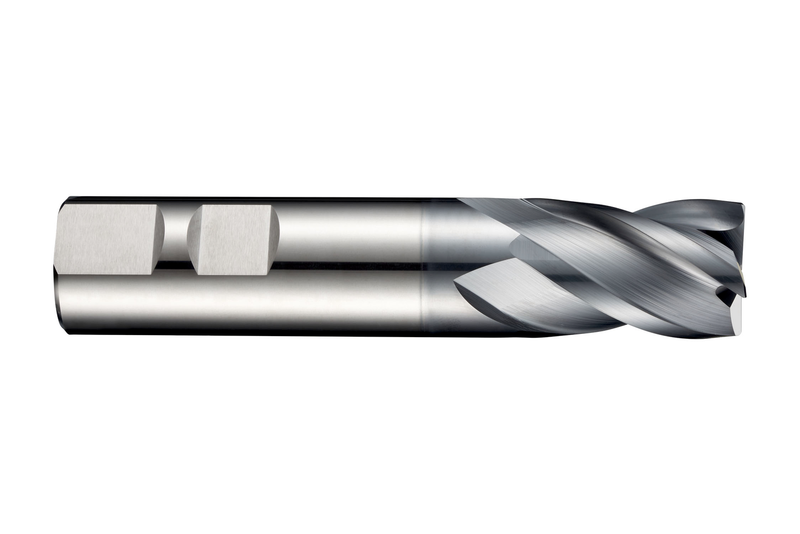

Fraise en bout extra-courte à 4 dents, diamètre 25mm avec longueur de coupe de 32mm, longueur totale de 121mm et chanfrein d'angle de 0.3mm à 45°, selon la norme DIN 6527 K avec une queue Weldon de 25mm, carbure monobloc avec revêtement AlCrN, hélice de 34° et angle de dépouille de 9° pour le fraisage d'épaulement et le plongement dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S804HB25.0
GradeAlCrN
Product Number5983616
Product FamilyS804HB

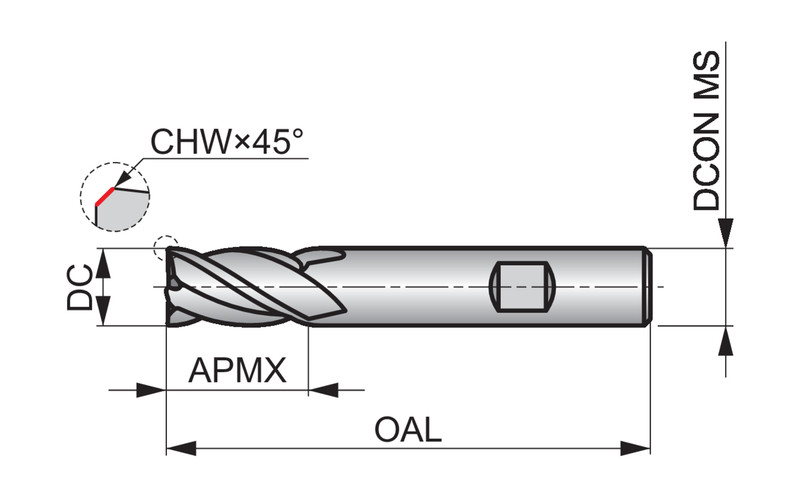

Insert Geometry
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm
Dimensions
Cutting Diameter — in (DC)0.9843"
Cutting Diameter — mm (DC)25.0 mm
Overall Length — in (OAL)4.7638"
Overall Length — mm (OAL)121.0 mm
Connection Dia. — in (DCON)0.9843"
Connection Dia. — mm (DCON)25.0 mm

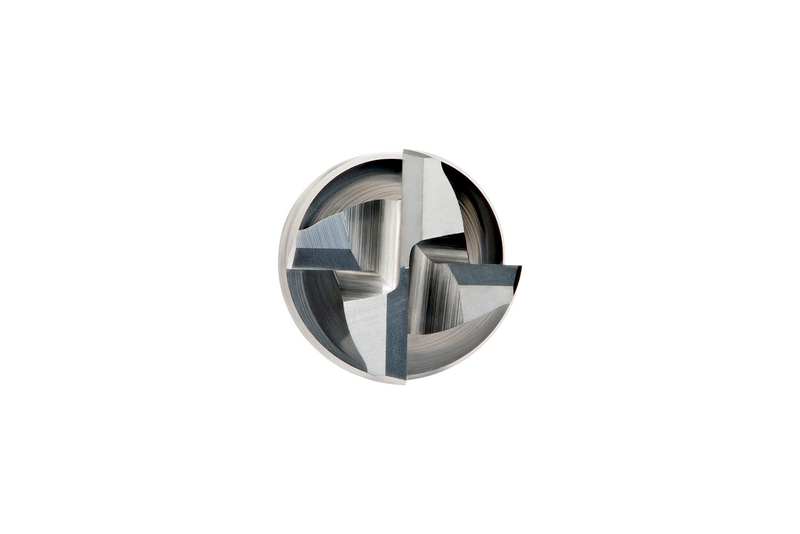

Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardDIN 6527 K
Reference Numbers
EDP Number641811
EAN7320760641811
File Type Download
S804HB25.0 — 3D Model STP Download
S804HB25.0 — 2D Model DXF Download
S804HB25.0 — Line Drawing PDF Download
