UGC DOR5983619
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$49.31 CAD - $49.31 CAD
$49.31 CAD
$49.31 CAD - $49.31 CAD
$49.31 CAD

Vendu en lots de : 1

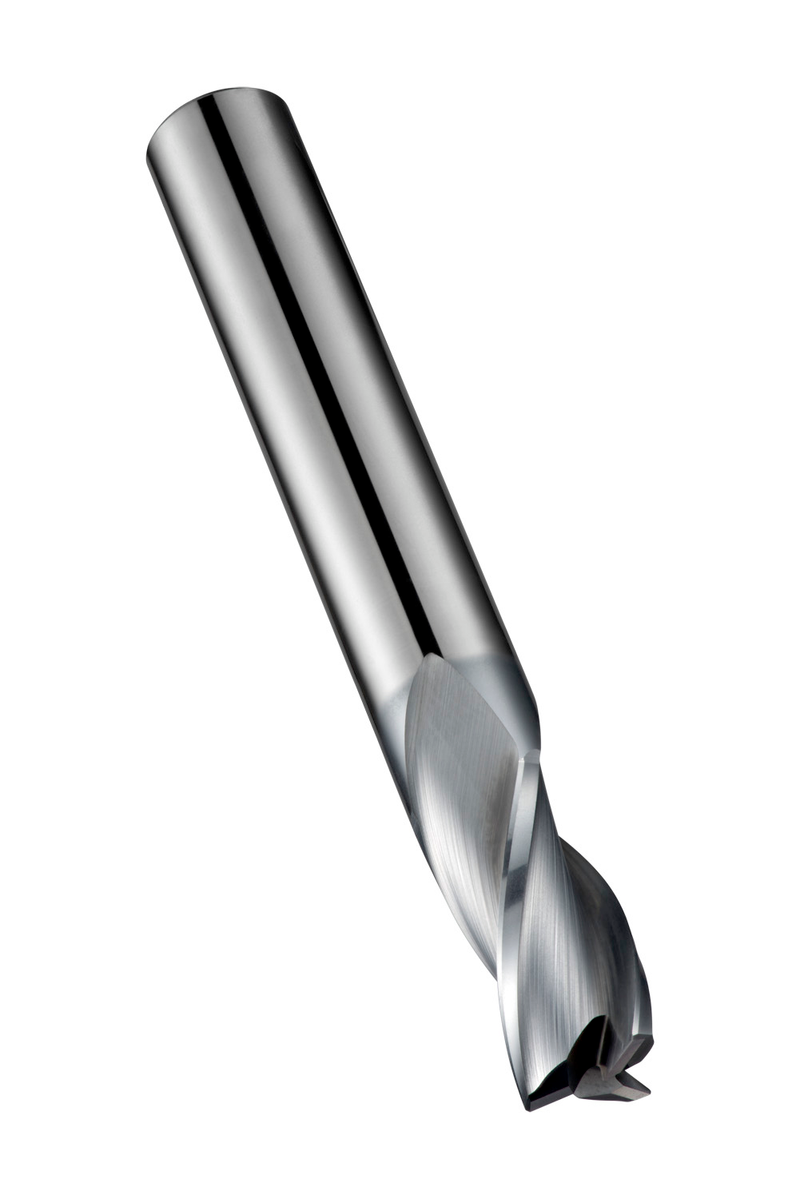

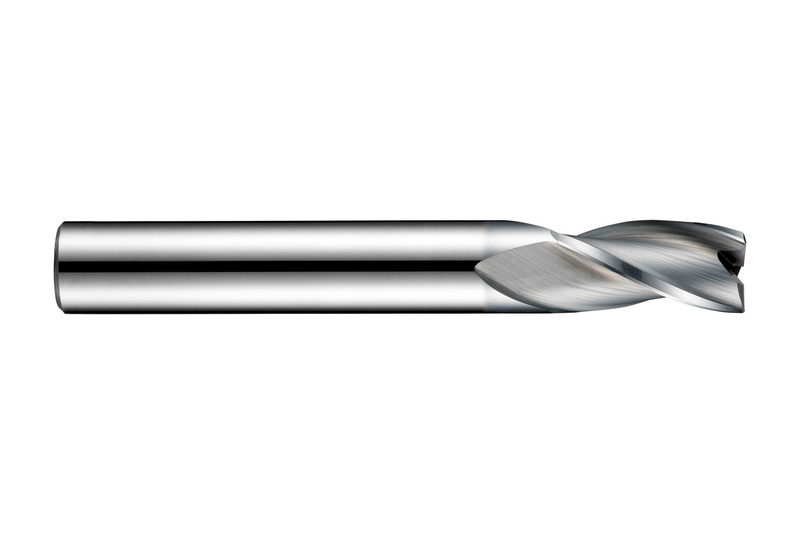

Fraise 3 dents à queue cylindrique, série courte, diamètre 2 mm, longueur de coupe 6 mm et longueur totale 57 mm, selon la norme DIN 6527 L avec queue cylindrique 6 mm, en carbure monobloc avec revêtement AlCrN, hélice 28° et angle de dépouille 9° pour l'usinage d'épaulements, l'usinage en plongée, le fraisage de rainures et l'usinage en ramping dans l'acier et l'acier moulé, l'acier inoxydable ferritique et martensitique, la fonte et l'aluminium moulé et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S813HA2.0
GradeAlCrN
Product Number5983619
Product FamilyS813HA
Insert Geometry

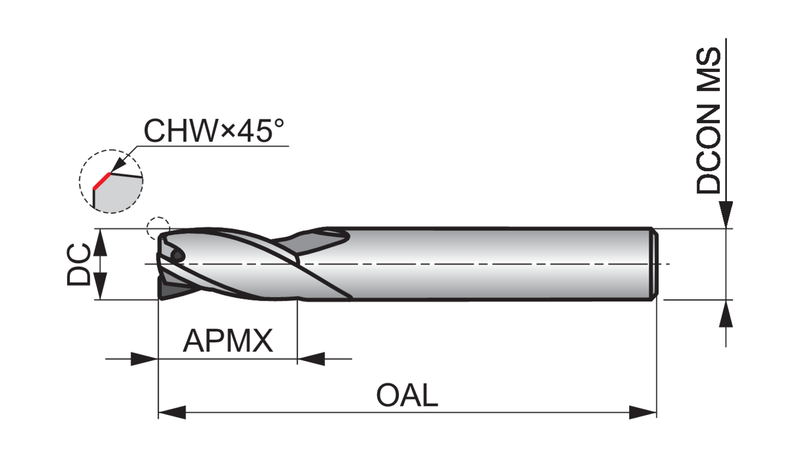

Depth of Cut Max — in (APMX)0.2362"
Depth of Cut Max — mm (APMX)6.0 mm
Dimensions
Cutting Diameter — in (DC)0.0787"
Cutting Diameter — mm (DC)2.0 mm
Overall Length — in (OAL)2.2441"
Overall Length — mm (OAL)57.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm

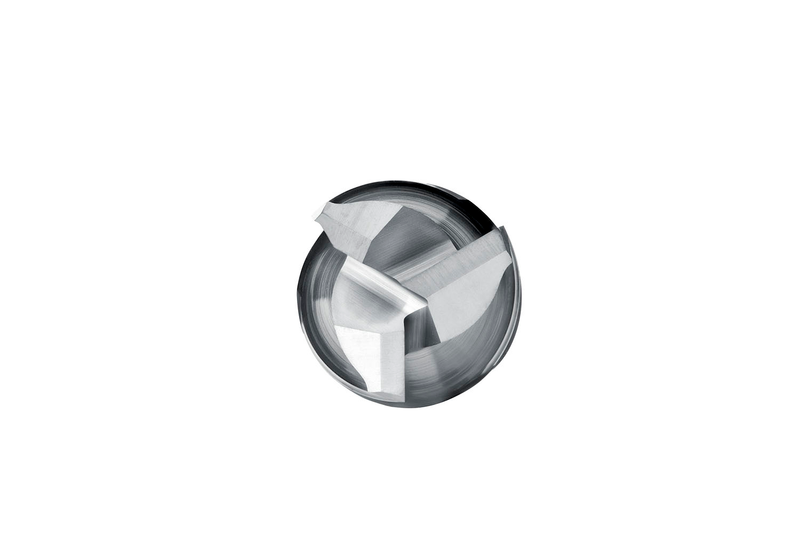

Number of Flutes (NOF)3
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6527 L
Reference Numbers
EDP Number642160
EAN7320760642160
File Type Download
S813HA2.0 — 3D Model STP Download
S813HA2.0 — 2D Model DXF Download
S813HA2.0 — Line Drawing PDF Download
