UGC DOR5983624
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$62.37 CAD - $62.37 CAD
$62.37 CAD
$62.37 CAD - $62.37 CAD
$62.37 CAD

Vendu en lots de : 1

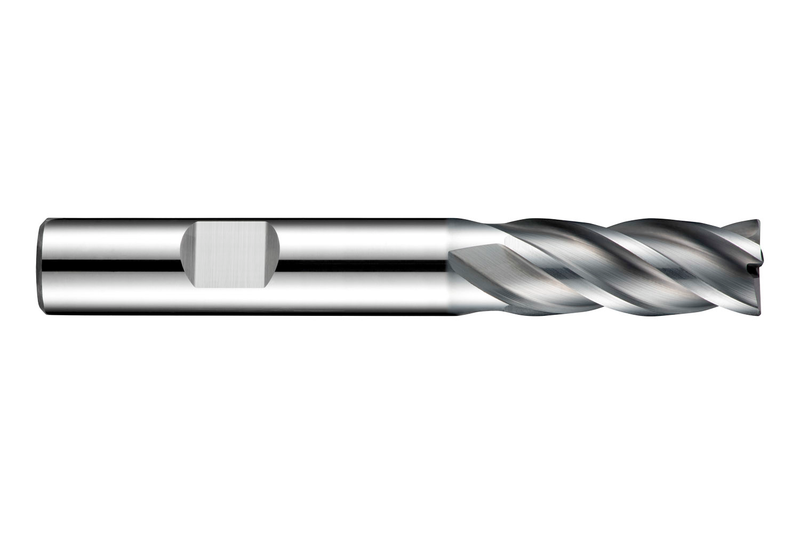

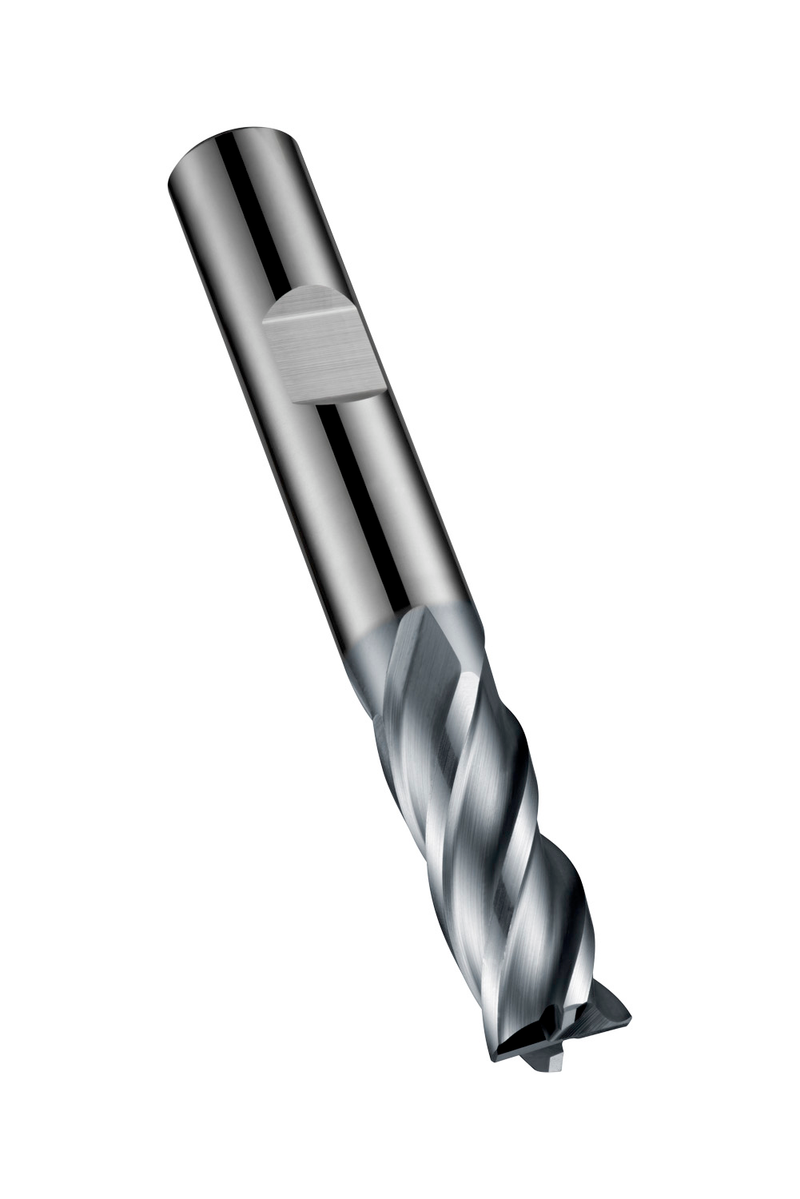

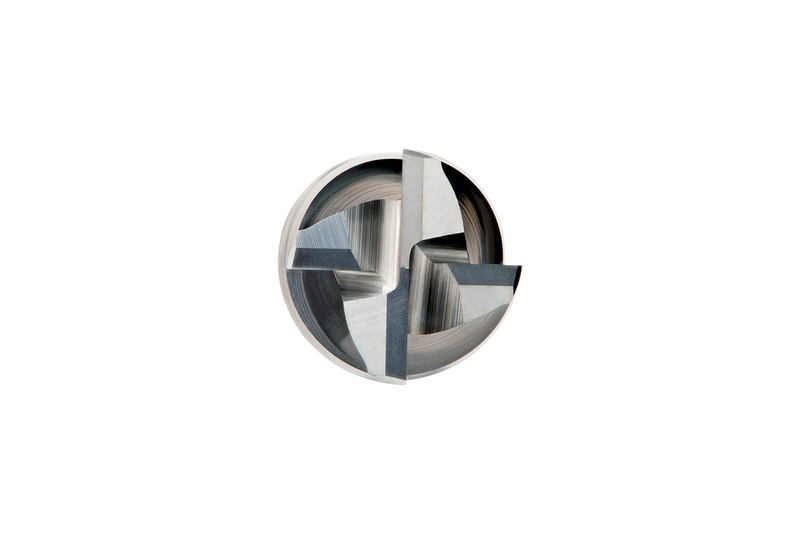

Fraise en bout série courte 4 dents, diamètre 4 mm, longueur de coupe 11 mm, longueur totale 57 mm et chanfrein d'angle de 0,13 mm à 45°, selon la norme DIN 6527 L avec une queue Weldon de 6 mm, en carbure monobloc avec revêtement AlCrN, hélice de 34° et angle de dépouille de 9° pour le fraisage d'épaulements et le plongement dans l'acier et l'acier moulé, l'acier inoxydable ferritique et martensitique, la fonte et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S814HB4.0
GradeAlCrN
Product Number5983624
Product FamilyS814HB
Insert Geometry
Depth of Cut Max — in (APMX)0.4331"
Depth of Cut Max — mm (APMX)11.0 mm

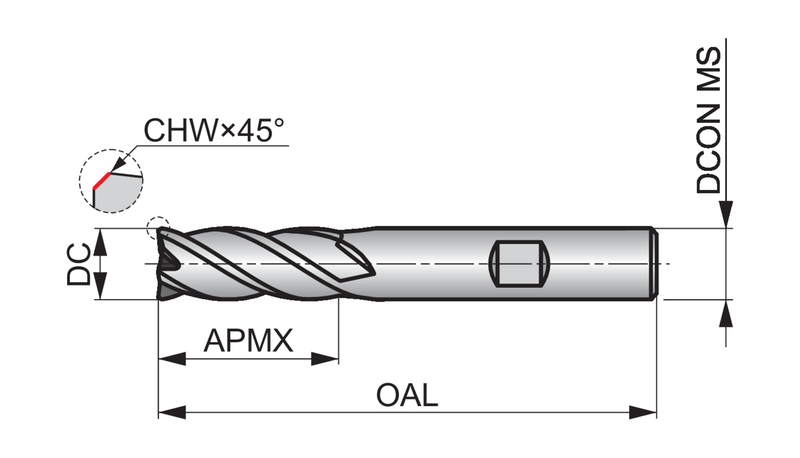

Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)2.2441"
Overall Length — mm (OAL)57.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardDIN 6527 L
Reference Numbers
EDP Number642634
EAN7320760642634
File Type Download
S814HB4.0 — 3D Model STP Download
S814HB4.0 — 2D Model DXF Download
S814HB4.0 — Line Drawing PDF Download
