UGC DOR5983635
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$88.80 CAD - $88.80 CAD
$88.80 CAD
$88.80 CAD - $88.80 CAD
$88.80 CAD

Vendu en lots de : 1

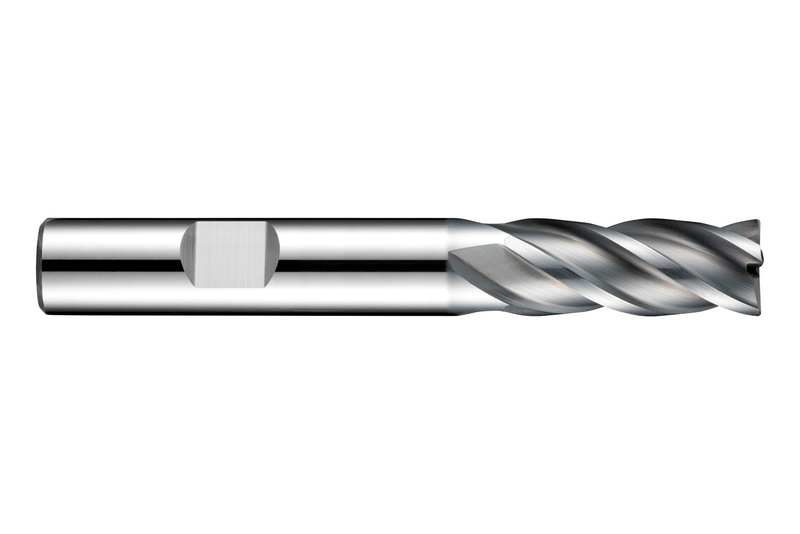

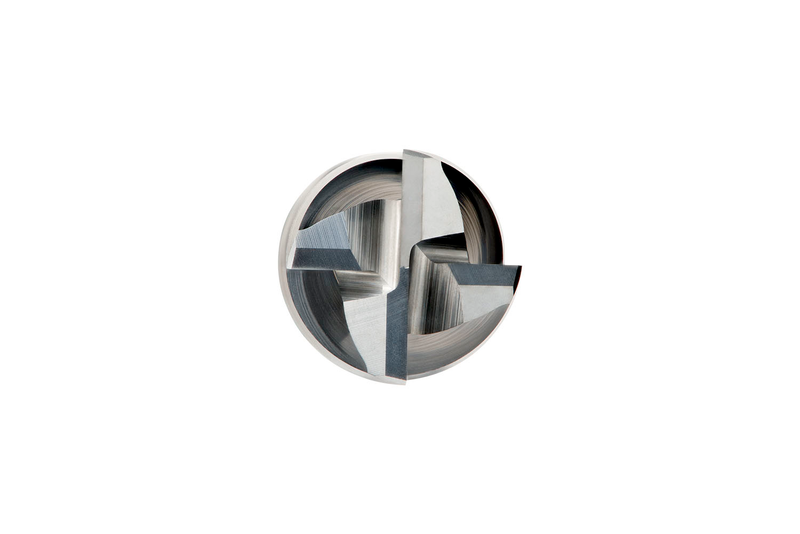

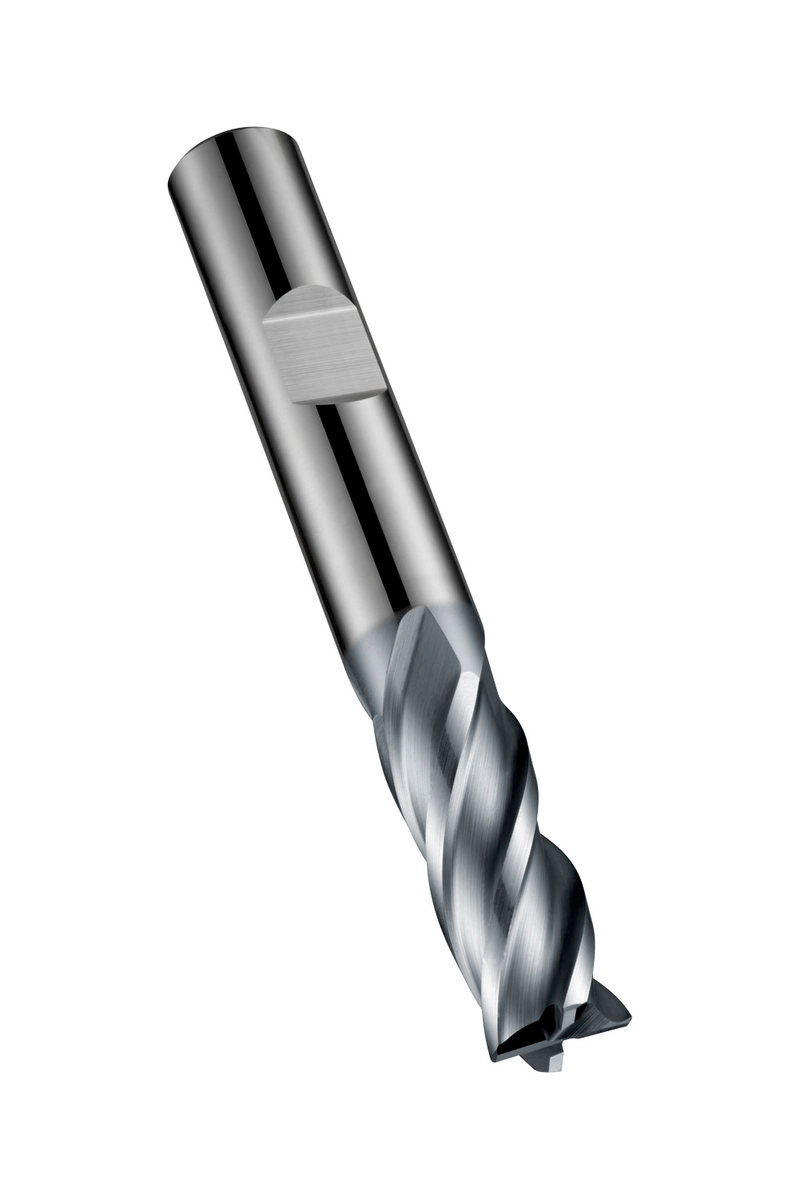

Fraise en bout série courte 4 dents, diamètre 8mm avec une longueur de coupe de 19mm, longueur totale de 63mm et chanfrein d'angle de 0.13mm à 45°, selon la norme DIN 6527 L avec une queue Weldon de 8mm, carbure monobloc avec revêtement AlCrN, hélice de 34° et angle de dépouille de 9° pour le surfaçage-dressage et le plonger dans l'acier et l'acier moulé, l'acier inoxydable ferritique et martensitique, la fonte et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S814HB8.0
GradeAlCrN
Product Number5983635
Product FamilyS814HB

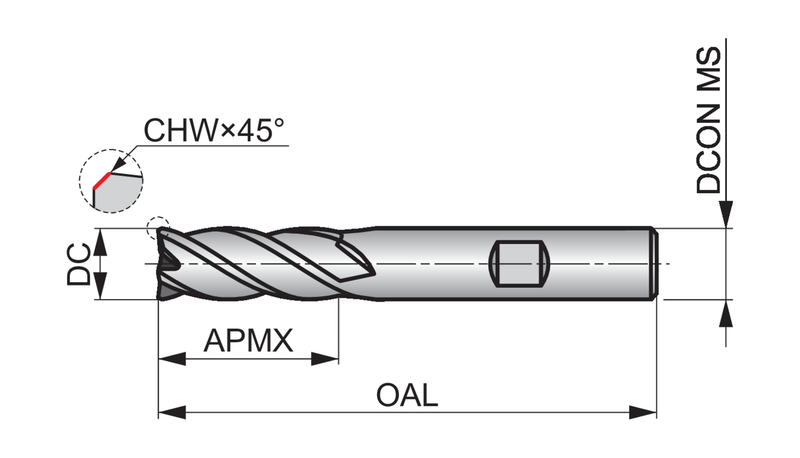

Insert Geometry
Depth of Cut Max — in (APMX)0.748"
Depth of Cut Max — mm (APMX)19.0 mm
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.4803"
Overall Length — mm (OAL)63.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)34.0°
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardDIN 6527 L
Reference Numbers
EDP Number642665
EAN7320760642665
File Type Download
S814HB8.0 — 3D Model STP Download
S814HB8.0 — 2D Model DXF Download
S814HB8.0 — Line Drawing PDF Download
