UGC DOR5983644
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$81.93 CAD - $81.93 CAD
$81.93 CAD
$81.93 CAD - $81.93 CAD
$81.93 CAD

Vendu en lots de : 1

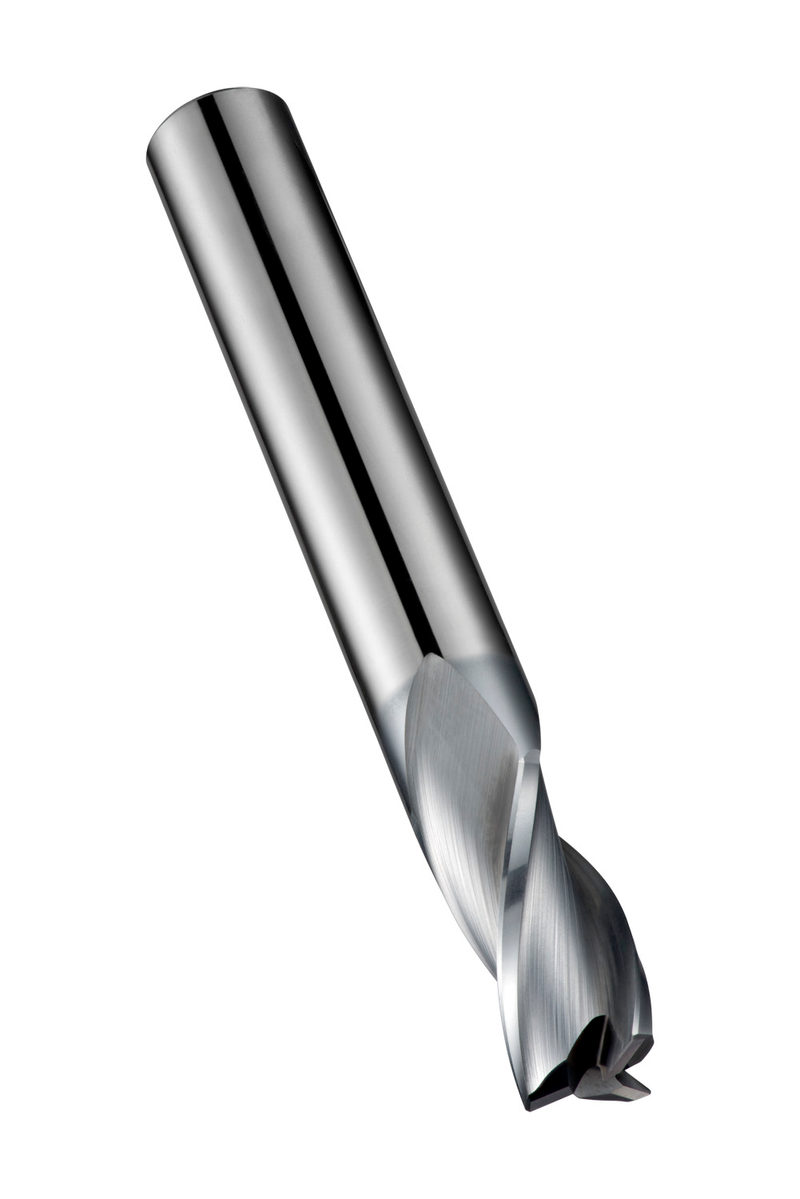

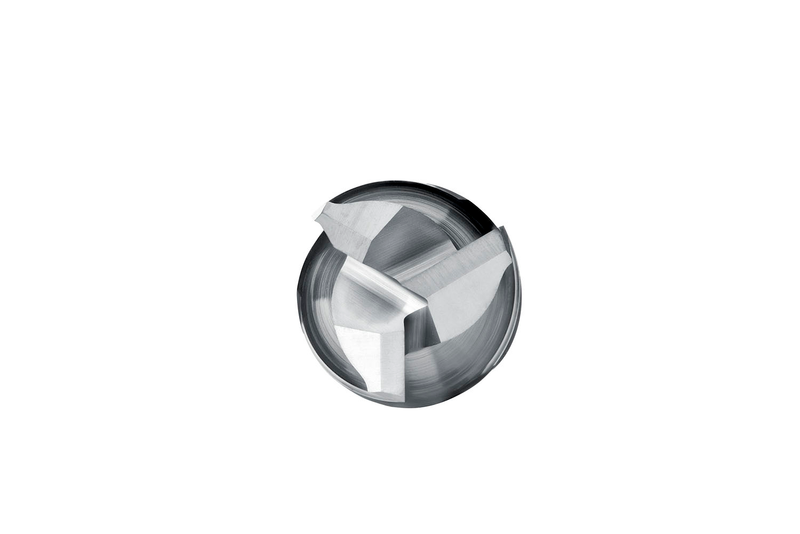

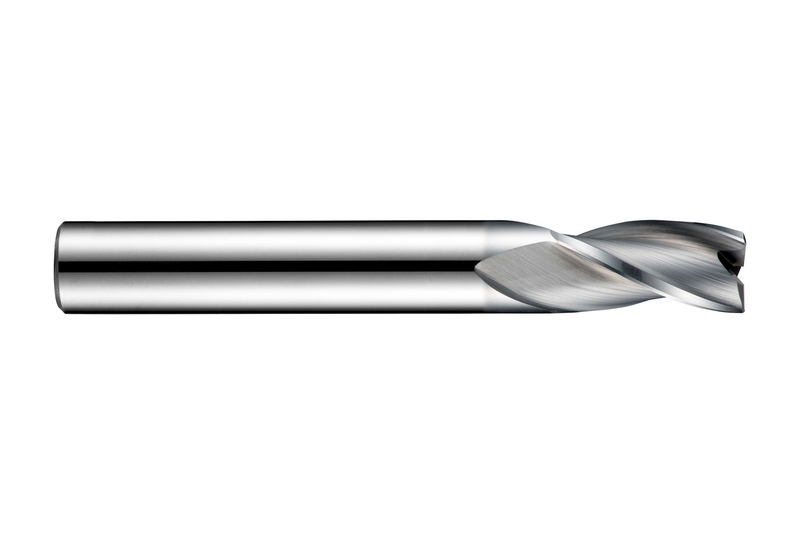

Fraise-scie courte à 3 dents, diamètre 7 mm avec 13 mm de longueur de coupe, 63 mm de longueur totale et des bords d'angle chanfreinés de 0,13 mm à 45°, selon la norme DIN 6527 L avec une queue cylindrique de 8 mm, en carbure monobloc avec revêtement AlCrN, hélice à 28° et angle de dépouille à 9° pour le fraisage d'épaulement, le plongement, le fraisage de rainures et le surfaçage dans l'acier et l'acier moulé, l'acier inoxydable ferritique et martensitique, la fonte et l'aluminium moulé et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI)S813HA7.0
Product Name (ISO)S813HA7,0
GradeAlCrN
Product Number5983644
Product FamilyS813HA
Insert Geometry
Depth of Cut Max — in (APMX)0.5118"
Depth of Cut Max — mm (APMX)13.0 mm

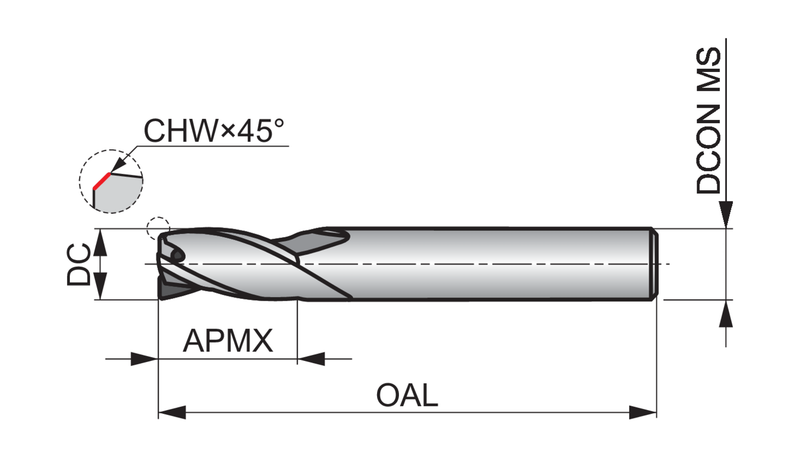

Dimensions
Cutting Diameter — in (DC)0.2756"
Cutting Diameter — mm (DC)7.0 mm
Overall Length — in (OAL)2.4803"
Overall Length — mm (OAL)63.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)28.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardDIN 6527 L
Reference Numbers
EDP Number642245
EAN7320760642245
File Type Download
S813HA7.0 — 3D Model STP Download
S813HA7.0 — 2D Model DXF Download
S813HA7.0 — Line Drawing PDF Download
