C12610.5
C12610.5
C12610.5
C12610.5

C12610.5

UGC DOR5983817
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$72.41 CAD - $72.41 CAD
$72.41 CAD
$72.41 CAD - $72.41 CAD
$72.41 CAD

Vendu en lots de : 1

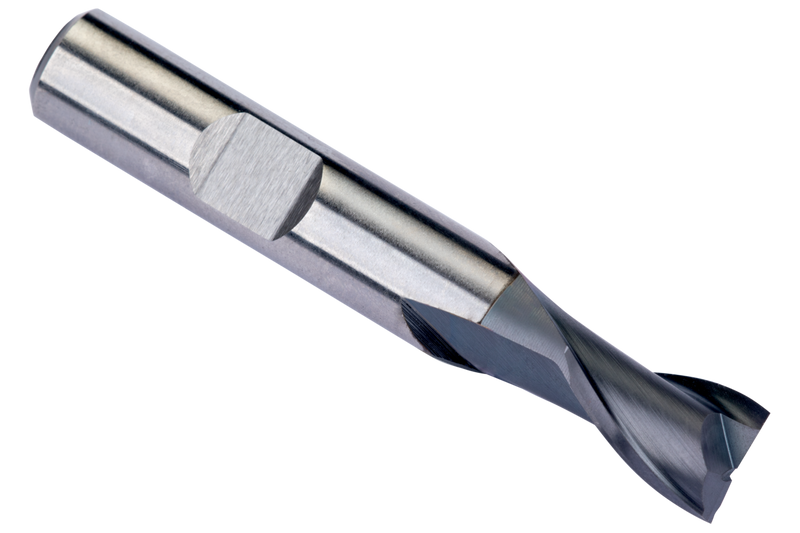

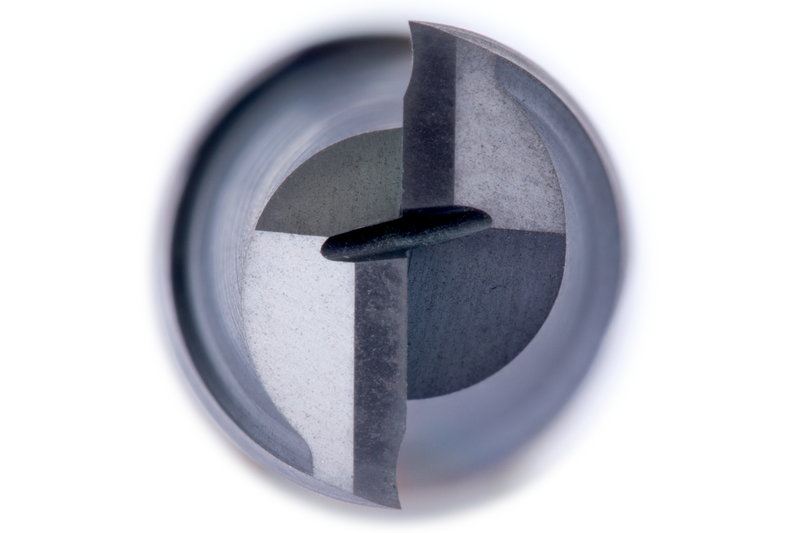

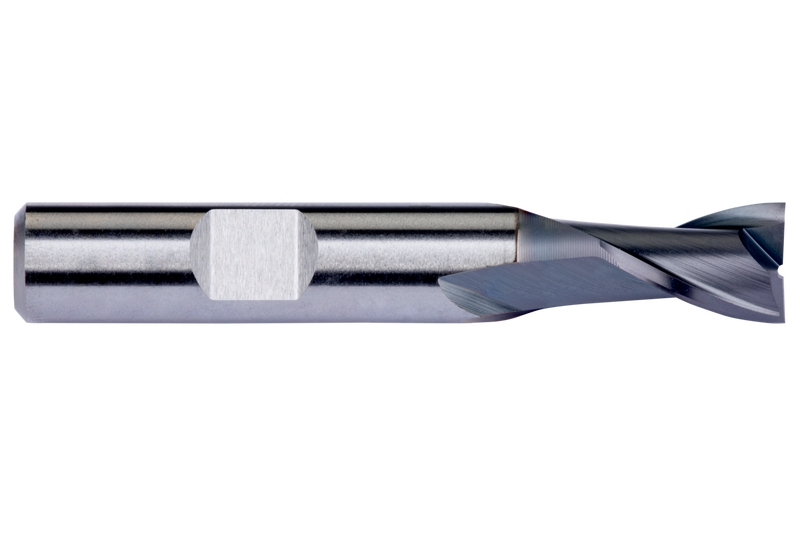

Fraise à rainurer à deux dents, série extra-courte, diamètre 10,5 mm, longueur de coupe 13 mm, longueur totale 70 mm, selon la norme DIN 327 D, avec queue Weldon 12 mm, en HSS-E (acier rapide à forte teneur en cobalt) issu de la métallurgie des poudres avec revêtement TiCN, hélice à 30° et angle de dépouille de 12° pour le surfaçage, le rainurage et les opérations en plongée dans les aciers de décolletage, les aciers au carbone et alliés, la fonte, le cuivre ou les alliages de cuivre et le titane ou les alliages de titane

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C12610.5
GradeTiCN
Product Number5983817
Product FamilyC126
Insert Geometry
Depth of Cut Max — in (APMX)0.5118"
Depth of Cut Max — mm (APMX)13.0 mm
Dimensions
Cutting Diameter — in (DC)0.4134"
Cutting Diameter — mm (DC)10.5 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number353929
EAN7320760353929
File Type Download
C12610.5 — Line Drawing PDF Download
