UGC DOR5983822
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$145.89 CAD - $145.89 CAD
$145.89 CAD
$145.89 CAD - $145.89 CAD
$145.89 CAD

Vendu en lots de : 1

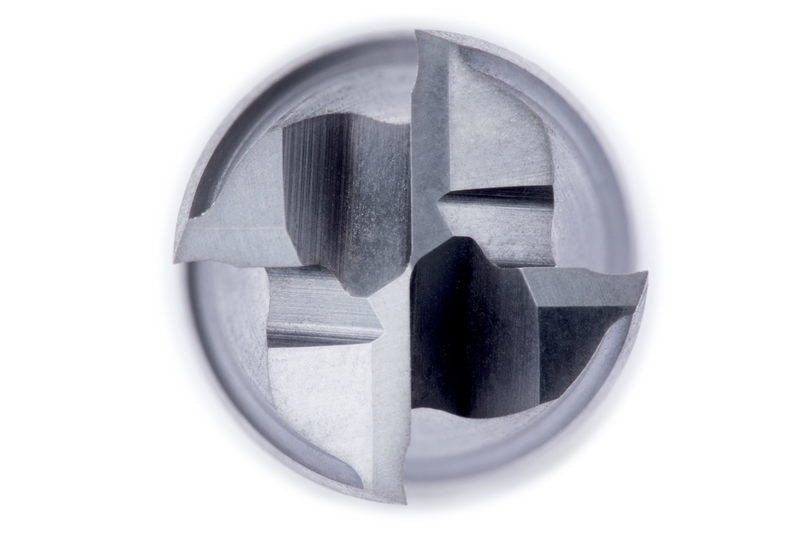

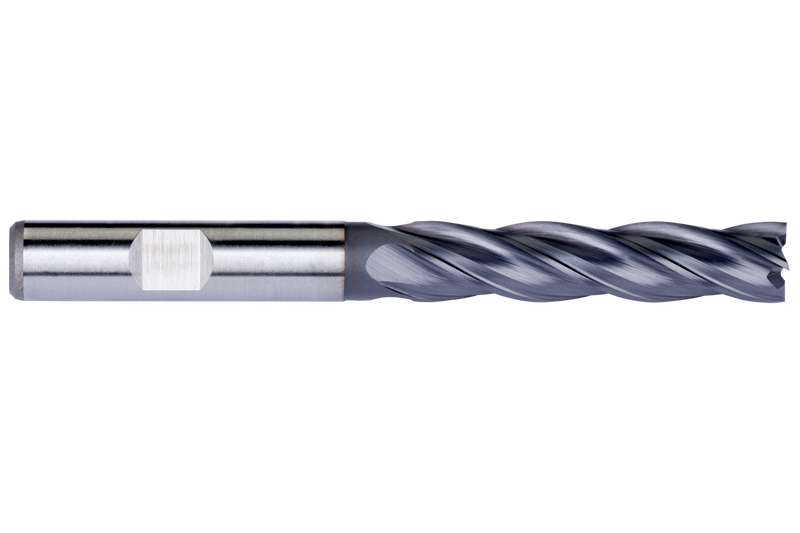

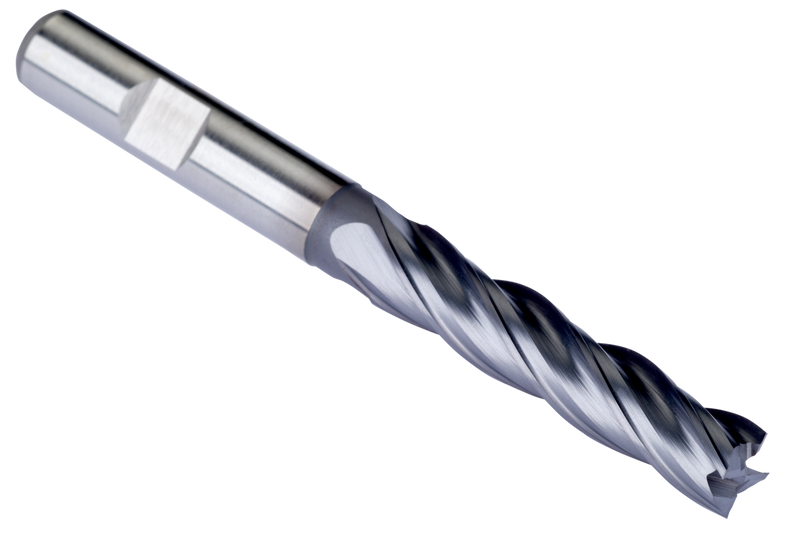

Fraise en bout série longue 4 dents, diamètre 15 mm avec 53 mm de longueur de coupe, 110 mm de longueur totale et 64,5 mm de portée avec dégagement de col, selon la norme DIN 844 L avec un attachement Weldon de 12 mm, en HSS-E métallurgie des poudres avec revêtement TiCN, hélice à 30° et angle de dépouille à 12° pour le fraisage d'épaulement et le fraisage de rainures dans les aciers à usinage libre, aciers au carbone et alliés, la fonte, le cuivre ou les alliages de cuivre et le titane ou les alliages de titane

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C29515.0
GradeTiCN
Product Number5983822
Product FamilyC295
Insert Geometry
Depth of Cut Max — in (APMX)2.0866"
Depth of Cut Max — mm (APMX)53.0 mm
Dimensions
Cutting Diameter — in (DC)0.5906"
Cutting Diameter — mm (DC)15.0 mm
Overall Length — in (OAL)4.3307"
Overall Length — mm (OAL)110.0 mm
Usable Length — mm (LU)64.5 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 L
Reference Numbers
EDP Number356289
EAN7320760356289
File Type Download
C29515.0 — Line Drawing PDF Download
