UGC DOR5983823
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$66.07 CAD - $66.07 CAD
$66.07 CAD
$66.07 CAD - $66.07 CAD
$66.07 CAD

Vendu en lots de : 1

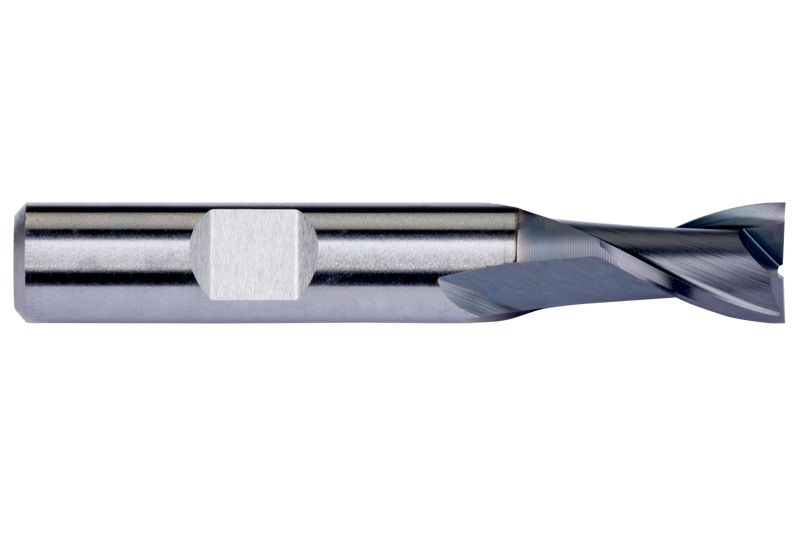

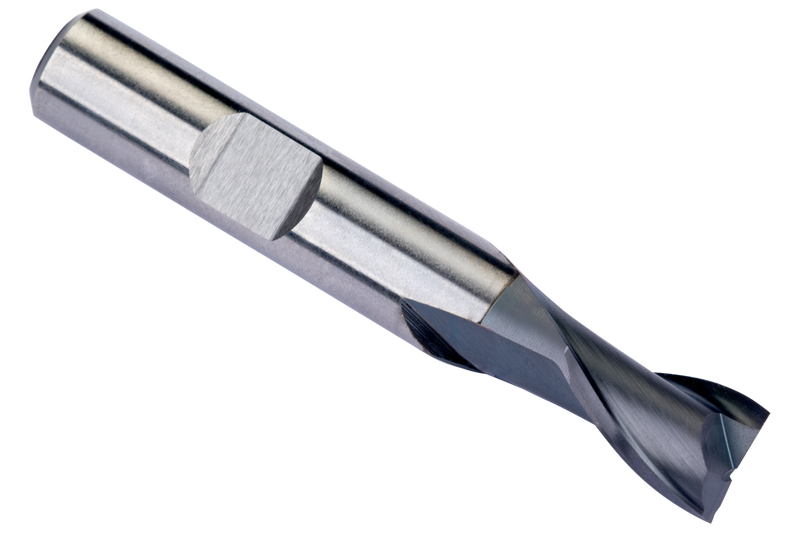

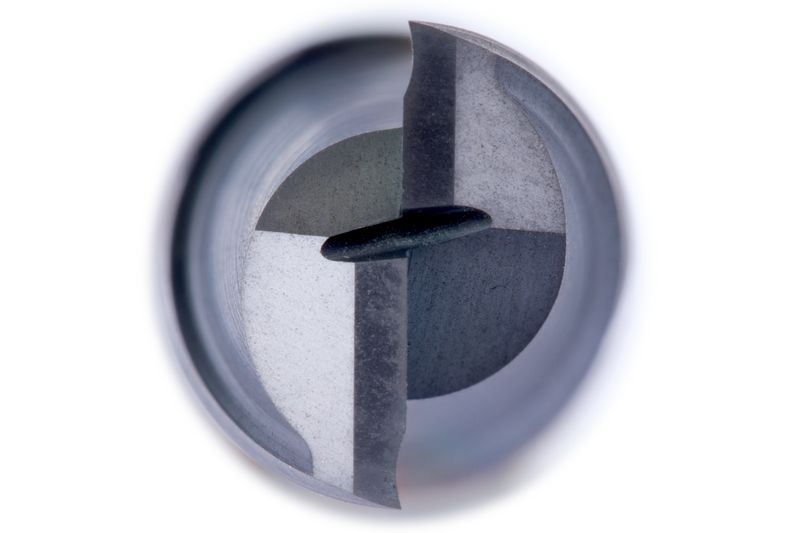

Fraise-scie extra courte à deux dents, diamètre de 11 mm, longueur de coupe de 13 mm et longueur totale de 70 mm, conforme à la norme DIN 327 D, avec une queue Weldon de 12 mm, en HSS-E (acier rapide fritté) avec revêtement TiCN, hélice de 30° et angle de dépouille de 12° pour le fraisage d'épaulements, de rainures et en ramping dans les aciers de décolletage, les aciers au carbone et alliés, la fonte, le cuivre ou les alliages de cuivre et le titane ou les alliages de titane

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C12611.0
GradeTiCN
Product Number5983823
Product FamilyC126
Insert Geometry
Depth of Cut Max — in (APMX)0.5118"
Depth of Cut Max — mm (APMX)13.0 mm
Dimensions
Cutting Diameter — in (DC)0.4331"
Cutting Diameter — mm (DC)11.0 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number353936
EAN7320760353936
File Type Download
C12611.0 — Line Drawing PDF Download
