UGC DOR5983825
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$146.94 CAD - $146.94 CAD
$146.94 CAD
$146.94 CAD - $146.94 CAD
$146.94 CAD

Vendu en lots de : 1

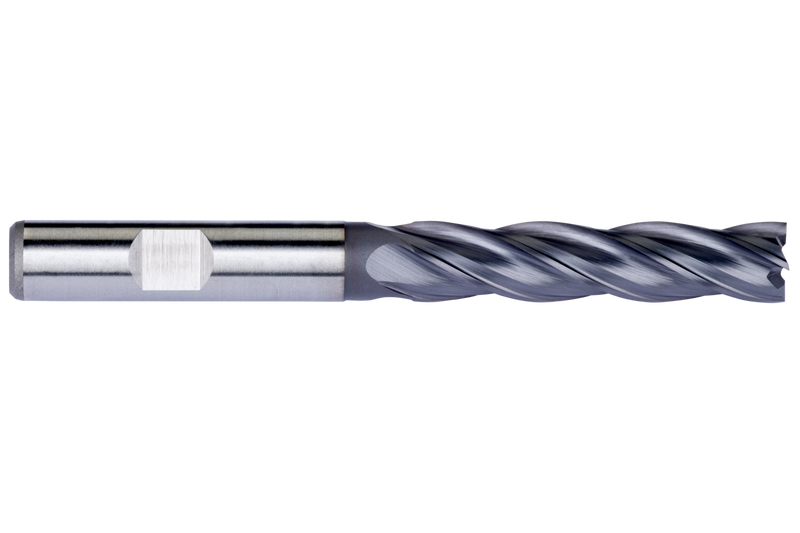

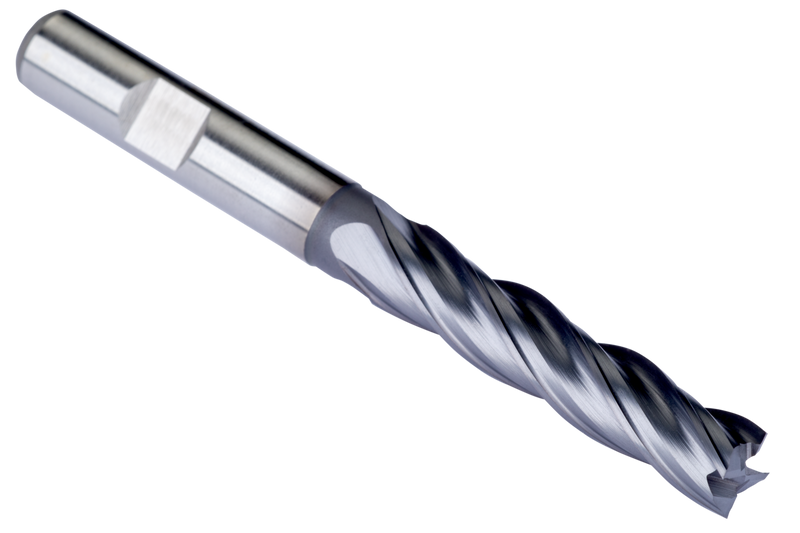

Fraise en bout longue 4 dents, diamètre 16mm, longueur de coupe 63mm, longueur totale 123mm et portée de 74,5mm avec dégagement de col, selon la norme DIN 844 L avec une queue Weldon de 16mm, en HSS-E métallurgie des poudres avec revêtement TiCN, hélice à 30° et angle de dépouille de 12° pour le fraisage d'épaulement et le fraisage de rainures dans l'acier de décolletage, l'acier au carbone et allié, la fonte, le cuivre ou les alliages de cuivre et le titane ou les alliages de titane

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C29516.0
GradeTiCN
Product Number5983825
Product FamilyC295
Insert Geometry

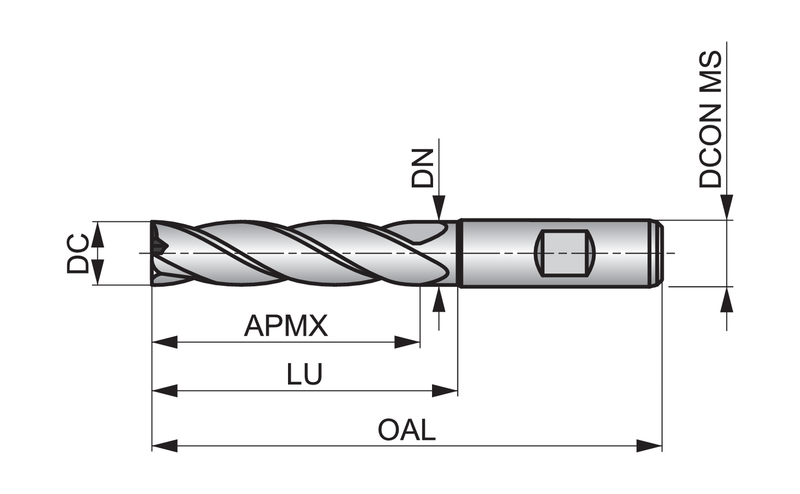

Depth of Cut Max — in (APMX)2.4803"
Depth of Cut Max — mm (APMX)63.0 mm
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)4.8425"
Overall Length — mm (OAL)123.0 mm
Usable Length — mm (LU)74.5 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm

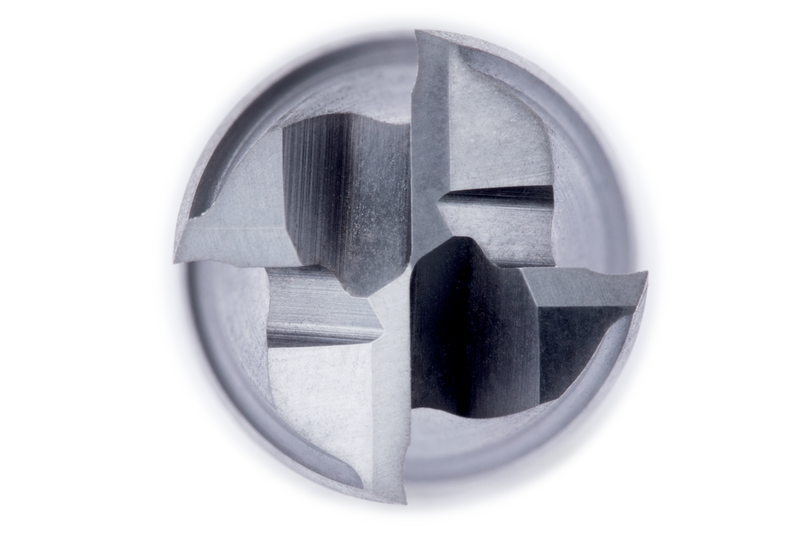

Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 L
Reference Numbers
EDP Number355176
EAN7320760355176
File Type Download
C29516.0 — Line Drawing PDF Download
