UGC DOR5983828
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$167.03 CAD - $167.03 CAD
$167.03 CAD
$167.03 CAD - $167.03 CAD
$167.03 CAD

Vendu en lots de : 1

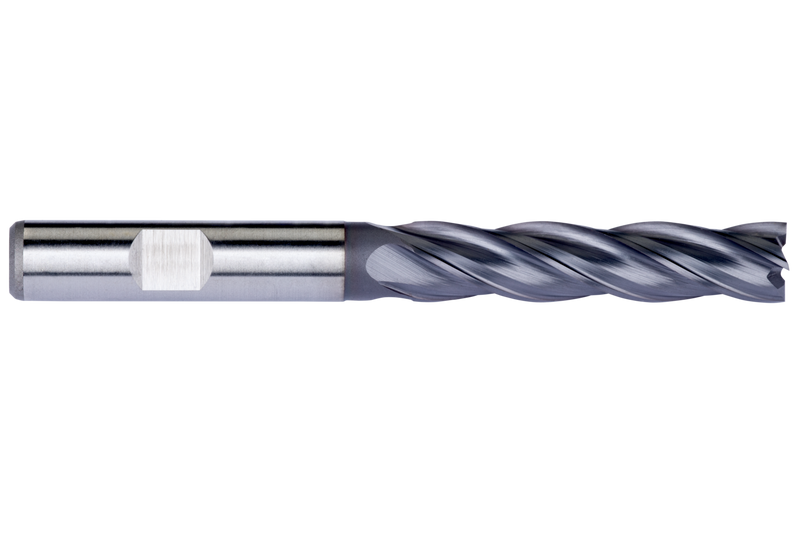

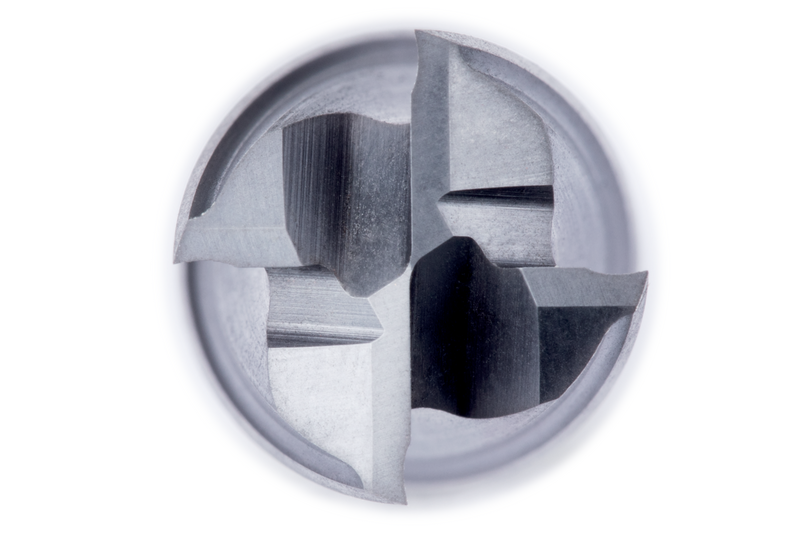

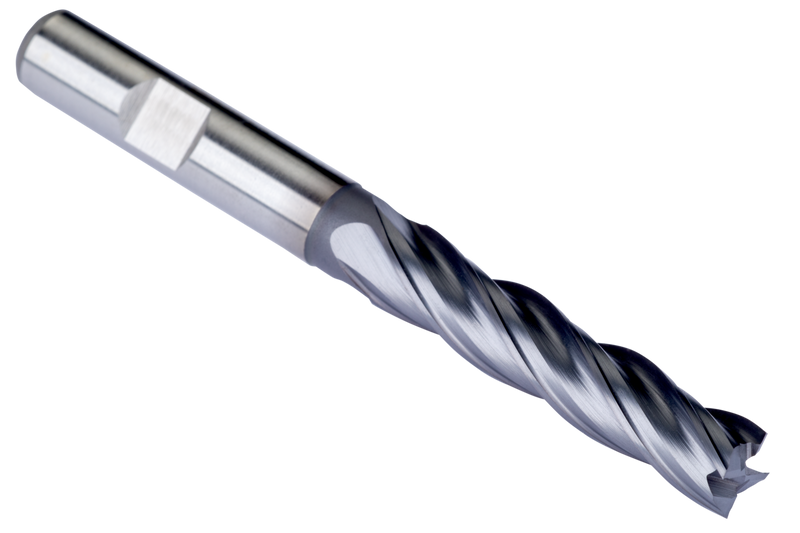

Fraise 4 dents en bout série longue, diamètre 18 mm, longueur de coupe 63 mm, longueur totale 123 mm et portée 74,5 mm avec dégagement de col, selon la norme DIN 844 L avec une queue Weldon de 16 mm, en HSS-E métallurgie des poudres avec revêtement TiCN, hélice à 30° et angle de dépouille de 12° pour le fraisage d'épaulements et de rainures dans l'acier de décolletage, l'acier au carbone et allié, la fonte, le cuivre ou les alliages de cuivre et le titane ou les alliages de titane

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C29518.0
GradeTiCN
Product Number5983828
Product FamilyC295
Insert Geometry
Depth of Cut Max — in (APMX)2.4803"
Depth of Cut Max — mm (APMX)63.0 mm
Dimensions
Cutting Diameter — in (DC)0.7087"
Cutting Diameter — mm (DC)18.0 mm
Overall Length — in (OAL)4.8425"
Overall Length — mm (OAL)123.0 mm
Usable Length — mm (LU)74.5 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 L
Reference Numbers
EDP Number355183
EAN7320760355183
File Type Download
C29518.0 — Line Drawing PDF Download
