UGC DOR5983850
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$88.27 CAD - $88.27 CAD
$88.27 CAD
$88.27 CAD - $88.27 CAD
$88.27 CAD

Vendu en lots de : 1

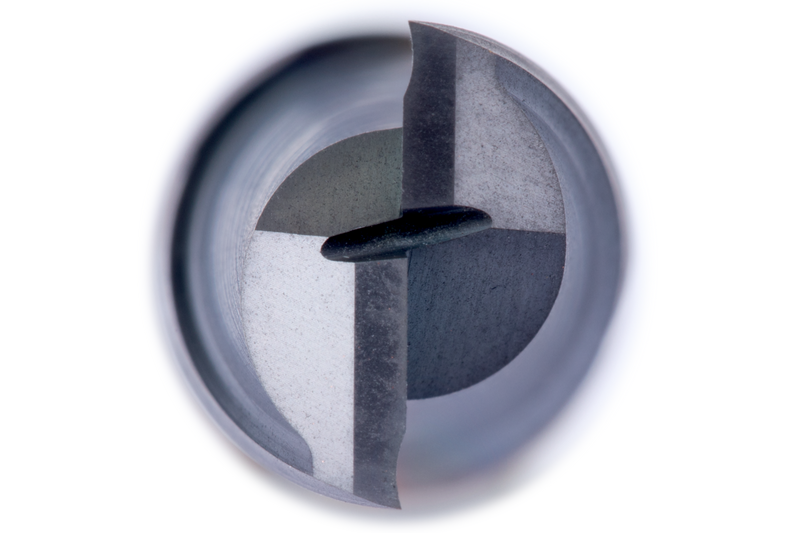

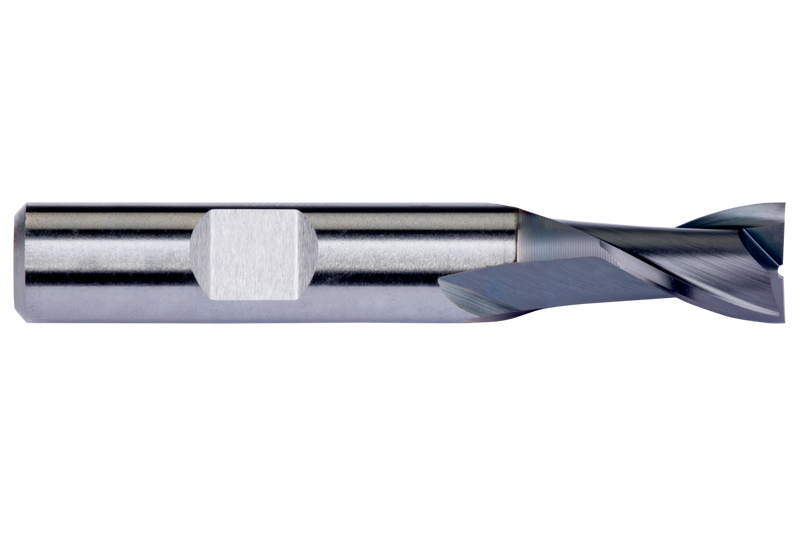

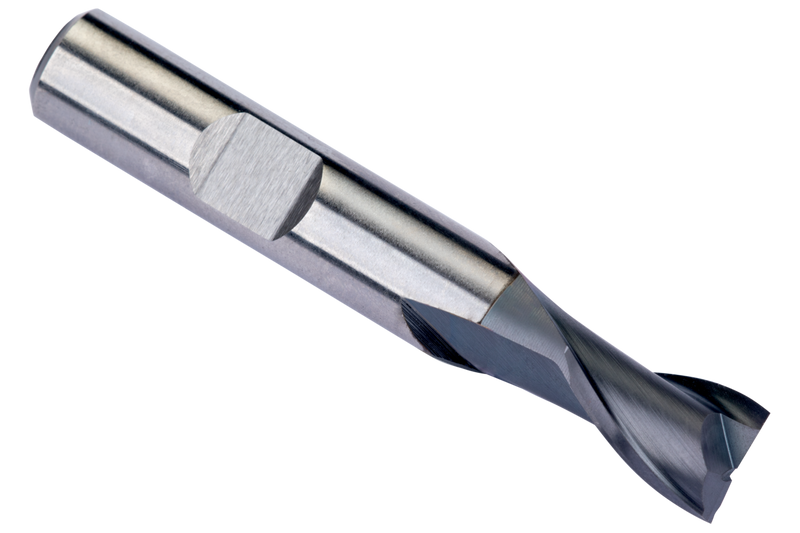

Fraise-scie à rainurer extra courte, 2 dents, diamètre 15mm, longueur de coupe 16mm, longueur totale 73mm et portée 27,5mm avec dégagement de collet, selon la norme DIN 327 D avec une queue Weldon de 12mm, en HSS-E métallurgie des poudres avec revêtement TiCN, hélice 30° et angle de dépouille 12° pour le fraisage d'épaulements, le fraisage de rainures et le surfaçage en usinage libre, aciers au carbone et alliés, fonte, cuivre ou alliages de cuivre et titane ou alliages de titane

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C12615.0
GradeTiCN
Product Number5983850
Product FamilyC126
Insert Geometry
Depth of Cut Max — in (APMX)0.6299"
Depth of Cut Max — mm (APMX)16.0 mm
Dimensions
Cutting Diameter — in (DC)0.5906"
Cutting Diameter — mm (DC)15.0 mm
Overall Length — in (OAL)2.874"
Overall Length — mm (OAL)73.0 mm
Usable Length — mm (LU)27.5 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number353974
EAN7320760353974
File Type Download
C12615.0 — Line Drawing PDF Download
