C2954.0
C2954.0
C2954.0
C2954.0

C2954.0

UGC DOR5983859
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$63.96 CAD - $63.96 CAD
$63.96 CAD
$63.96 CAD - $63.96 CAD
$63.96 CAD

Vendu en lots de : 1

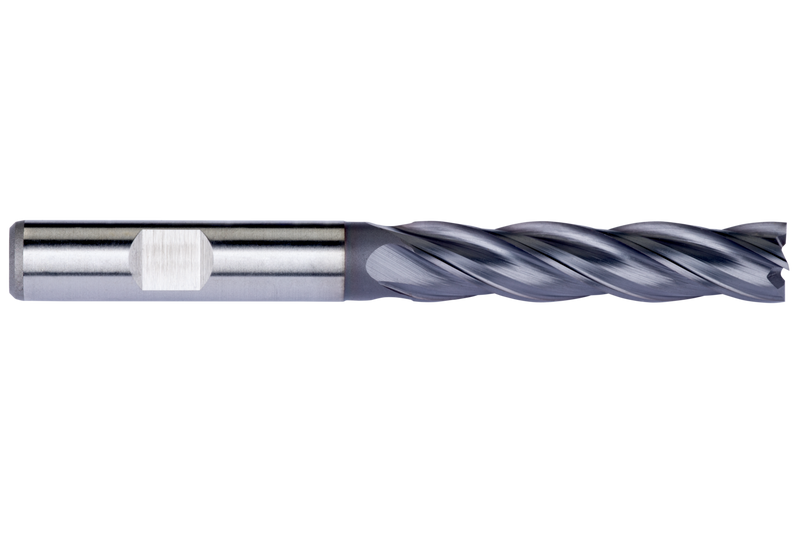

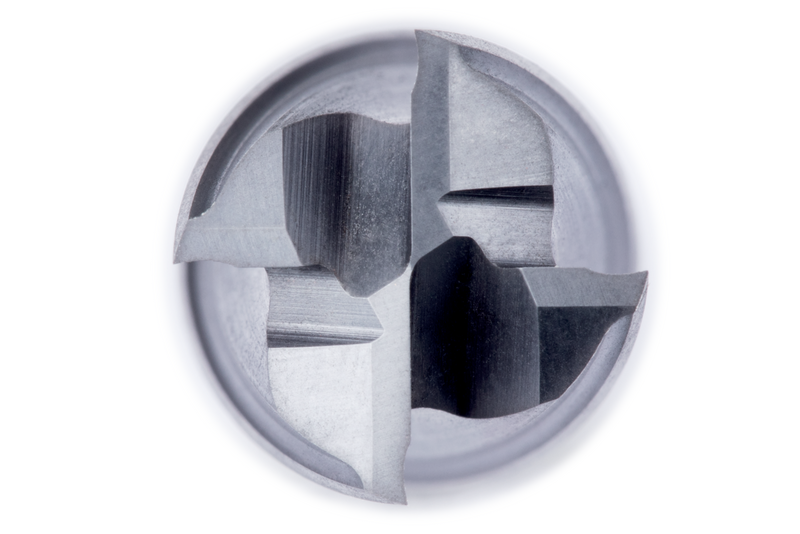

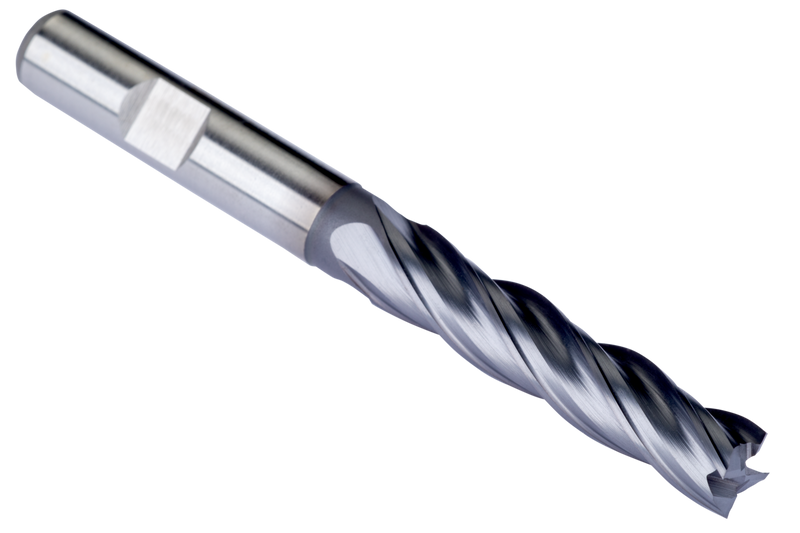

Fraise en bout série longue 4 dents, diamètre 4mm, longueur de coupe 19mm et longueur totale 63mm, selon norme DIN 844 L avec queue Weldon 6mm, HSS-E métallurgie des poudres avec revêtement TiCN, hélice 30° et angle de dépouille 12° pour le surfaçage en bout et l'usinage de rainures dans les aciers à coupe rapide, les aciers au carbone et alliés, la fonte, le cuivre ou les alliages de cuivre et le titane ou les alliages de titane

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C2954.0
GradeTiCN
Product Number5983859
Product FamilyC295
Insert Geometry
Depth of Cut Max — in (APMX)0.748"
Depth of Cut Max — mm (APMX)19.0 mm
Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)2.4803"
Overall Length — mm (OAL)63.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 L
Reference Numbers
EDP Number356326
EAN7320760356326
File Type Download
C2954.0 — Line Drawing PDF Download
