UGC DOR5983861
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$37.69 CAD - $37.69 CAD
$37.69 CAD
$37.69 CAD - $37.69 CAD
$37.69 CAD

Vendu en lots de : 1

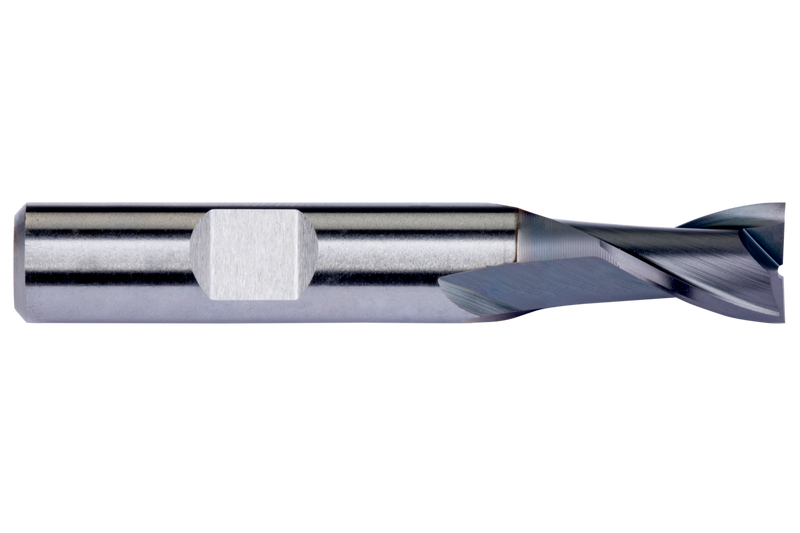

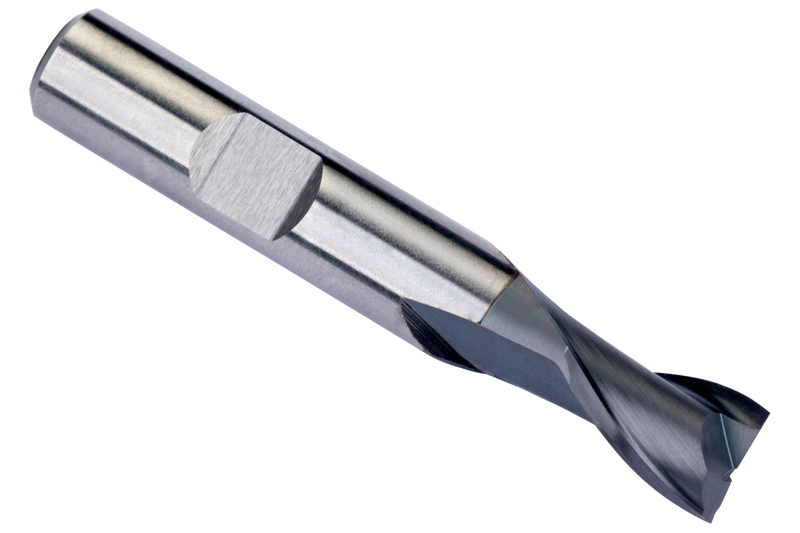

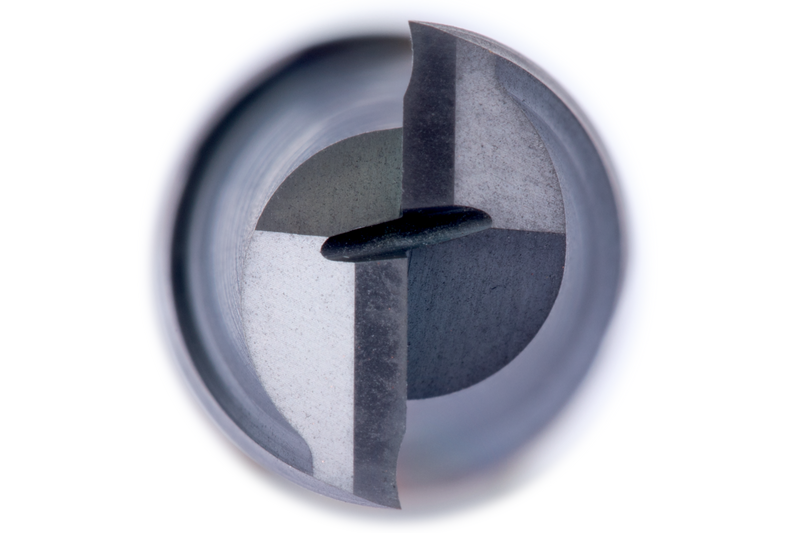

Fraise-scie extra courte à 2 dents, diamètre 2mm avec une longueur de coupe de 4mm et une longueur totale de 48mm, selon la norme DIN 327 D avec une queue Weldon de 6mm, HSS-E métallurgie des poudres avec revêtement TiCN, hélice de 30° et angle de dépouille de 12° pour le fraisage d'épaulement, le fraisage de rainures et le surfaçage en usinage libre, acier au carbone et allié, fonte, cuivre ou alliages de cuivre et titane ou alliages de titane

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C1262.0
GradeTiCN
Product Number5983861
Product FamilyC126
Insert Geometry
Depth of Cut Max — in (APMX)0.1575"
Depth of Cut Max — mm (APMX)4.0 mm
Dimensions
Cutting Diameter — in (DC)0.0787"
Cutting Diameter — mm (DC)2.0 mm
Overall Length — in (OAL)1.8898"
Overall Length — mm (OAL)48.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number354001
EAN7320760354001
File Type Download

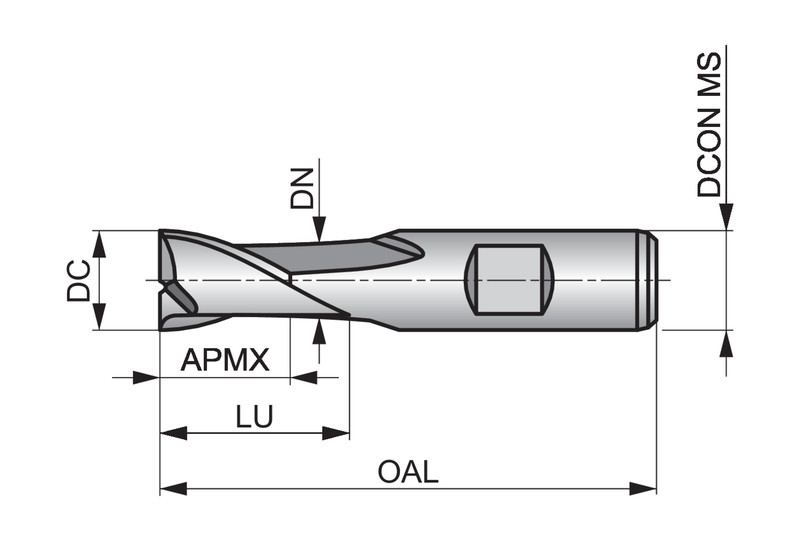

C1262.0 — Line Drawing PDF Download
