UGC DOR5983862
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$728.37 CAD - $728.37 CAD
$728.37 CAD
$728.37 CAD - $728.37 CAD
$728.37 CAD

Vendu en lots de : 1

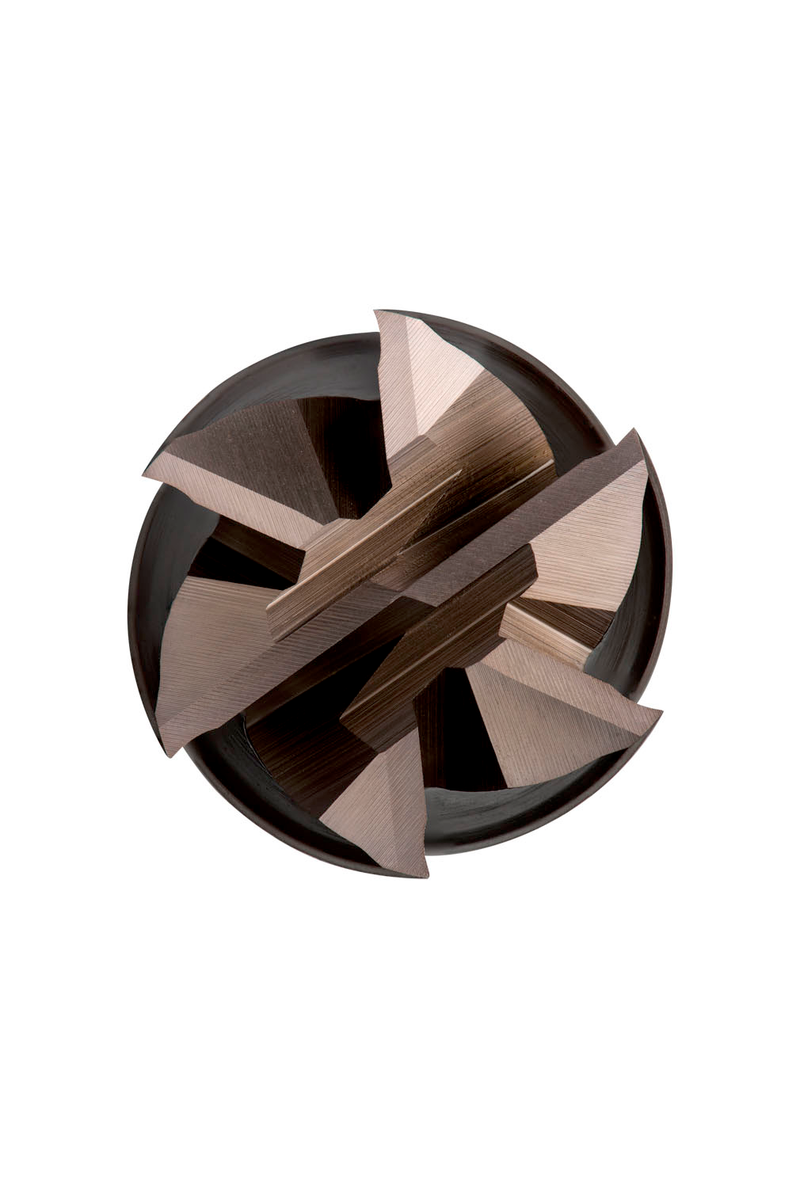

Fraise longue 6 dents, diamètre 40mm avec longueur de coupe 125mm, longueur totale 217mm et longueur utile 146.5mm avec dégagement de col, selon la norme DIN 844 L avec une queue Weldon 40mm, en HSS-E PM avec revêtement TiCN, hélice à 30° et angle de dépouille 12° pour le fraisage d'épaulement et de rainure dans les aciers de décolletage, les aciers au carbone et alliés, la fonte, le cuivre ou les alliages de cuivre et le titane ou les alliages de titane

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C29540.0
GradeTiCN
Product Number5983862
Product FamilyC295
Insert Geometry
Depth of Cut Max — in (APMX)4.9213"
Depth of Cut Max — mm (APMX)125.0 mm
Dimensions
Cutting Diameter — in (DC)1.5748"
Cutting Diameter — mm (DC)40.0 mm
Overall Length — in (OAL)8.5433"
Overall Length — mm (OAL)217.0 mm
Usable Length — mm (LU)146.5 mm
Connection Dia. — in (DCON)1.5748"
Connection Dia. — mm (DCON)40.0 mm
Number of Flutes (NOF)6
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 L
Reference Numbers
EDP Number609286
EAN7320760609286
File Type Download
C29540.0 — Line Drawing PDF Download
