UGC DOR5983867
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$63.43 CAD - $63.43 CAD
$63.43 CAD
$63.43 CAD - $63.43 CAD
$63.43 CAD

Vendu en lots de : 1

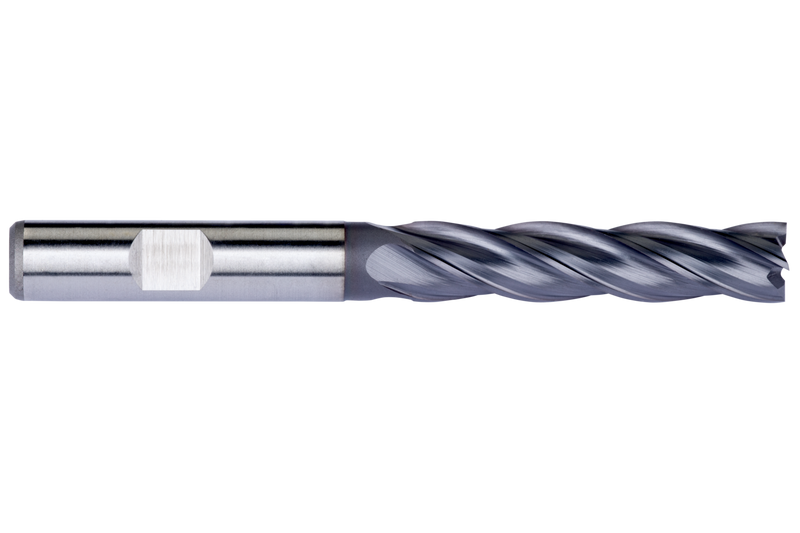

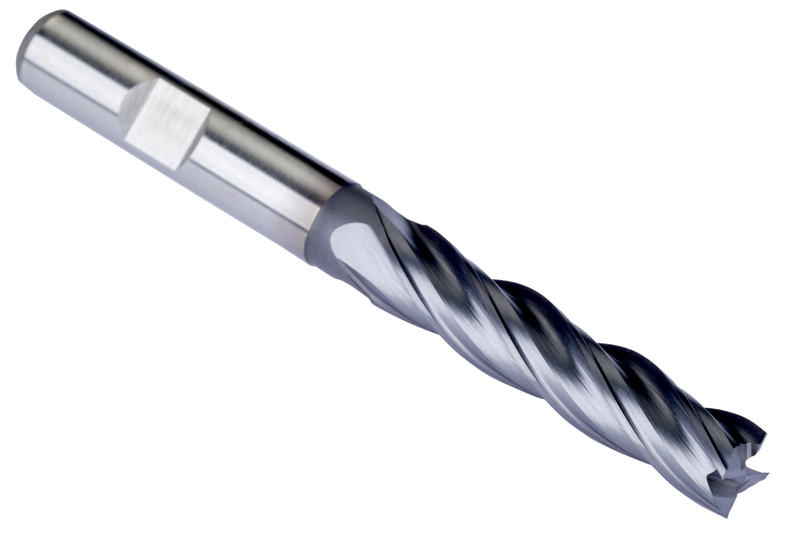

Fraise en bout longue 4 dents, diamètre 5mm avec une longueur de coupe de 24mm et une longueur totale de 68mm, selon la norme DIN 844 L avec un queue Weldon de 6mm, HSS-E métallurgie des poudres avec revêtement TiCN, hélice 30° et angle de dépouille 12° pour le fraisage d'épaulement et le fraisage de rainures dans l'acier de décolletage, l'acier au carbone et allié, la fonte, le cuivre ou les alliages de cuivre et le titane ou les alliages de titane

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C2955.0
GradeTiCN
Product Number5983867
Product FamilyC295
Insert Geometry
Depth of Cut Max — in (APMX)0.9449"
Depth of Cut Max — mm (APMX)24.0 mm
Dimensions
Cutting Diameter — in (DC)0.1969"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)2.6772"
Overall Length — mm (OAL)68.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 L
Reference Numbers
EDP Number356333
EAN7320760356333
File Type Download
C2955.0 — Line Drawing PDF Download
