UGC DOR5983882
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$35.57 CAD - $35.57 CAD
$35.57 CAD
$35.57 CAD - $35.57 CAD
$35.57 CAD

Vendu en lots de : 1

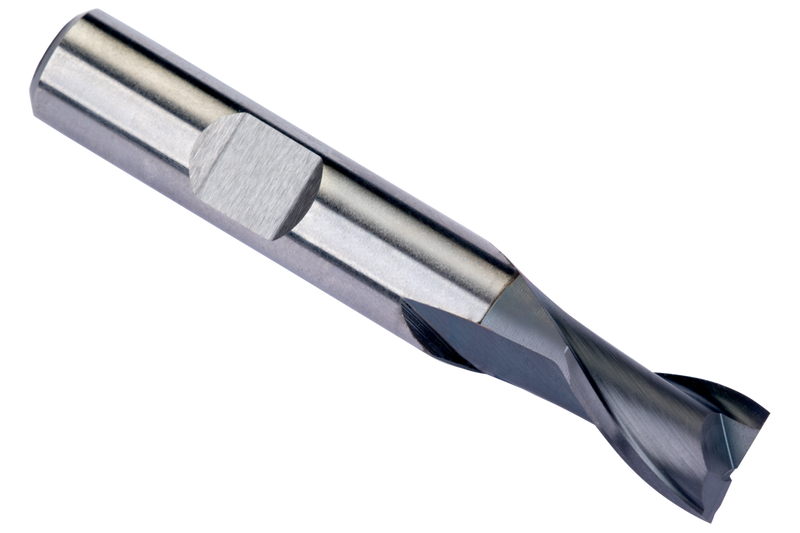

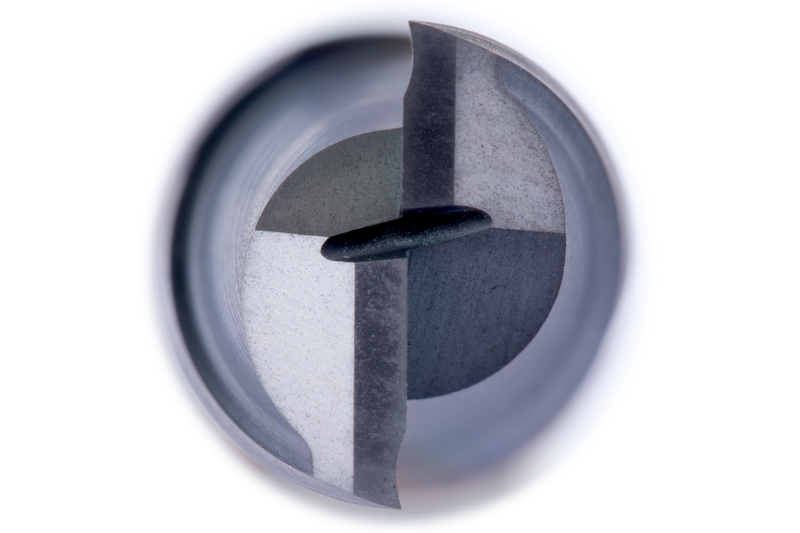

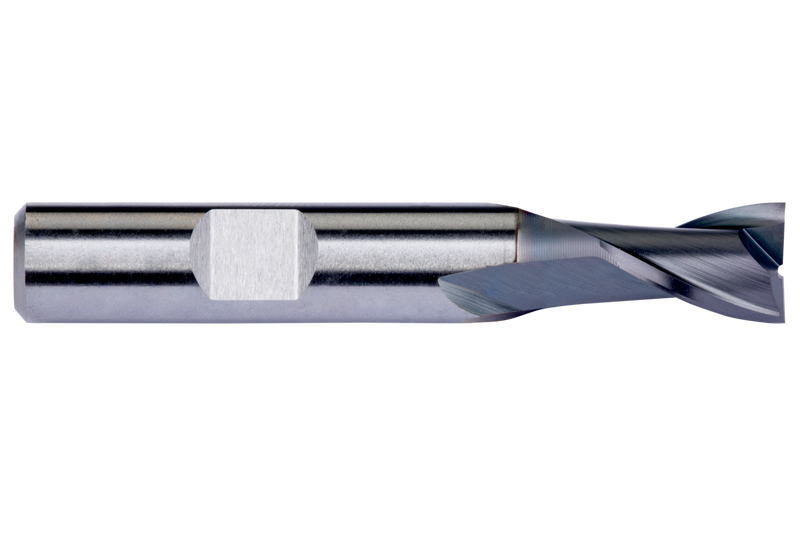

Fraise-scie à rainurer très courte à 2 lèvres, diamètre 3mm avec longueur de coupe de 5mm et longueur totale de 49mm, selon la norme DIN 327 D avec une queue Weldon de 6mm, HSS-E métallurgie des poudres avec revêtement TiCN, hélice de 30° et angle de coupe de 12° pour le fraisage en bout, le fraisage de rainures et le fraisage en plongée dans l'acier au carbone et allié, la fonte, le cuivre ou les alliages de cuivre et le titane ou les alliages de titane

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C1263.0
GradeTiCN
Product Number5983882
Product FamilyC126

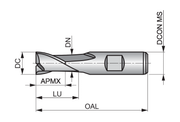

Insert Geometry
Depth of Cut Max — in (APMX)0.1969"
Depth of Cut Max — mm (APMX)5.0 mm
Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)1.9291"
Overall Length — mm (OAL)49.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number354056
EAN7320760354056
File Type Download
C1263.0 — Line Drawing PDF Download
