C1265.0
C1265.0
C1265.0
C1265.0

C1265.0

UGC DOR5983892
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$35.20 CAD - $35.20 CAD
$35.20 CAD
$35.20 CAD - $35.20 CAD
$35.20 CAD

Vendu en lots de : 1

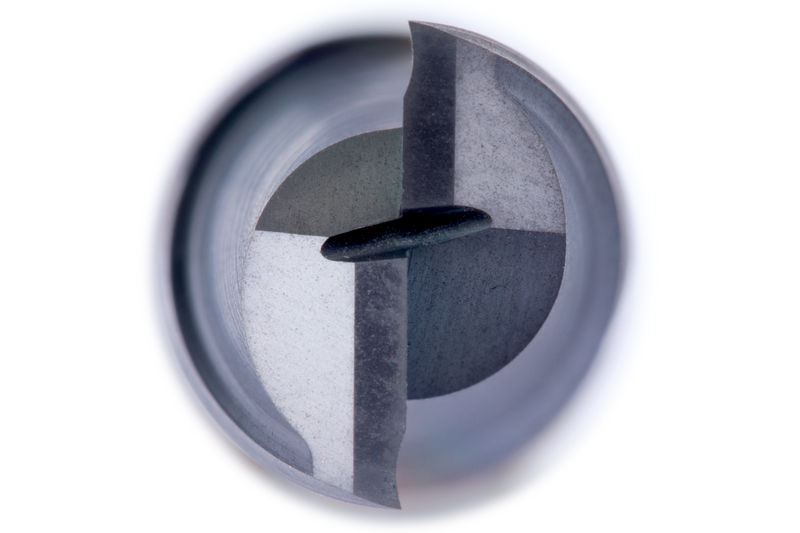

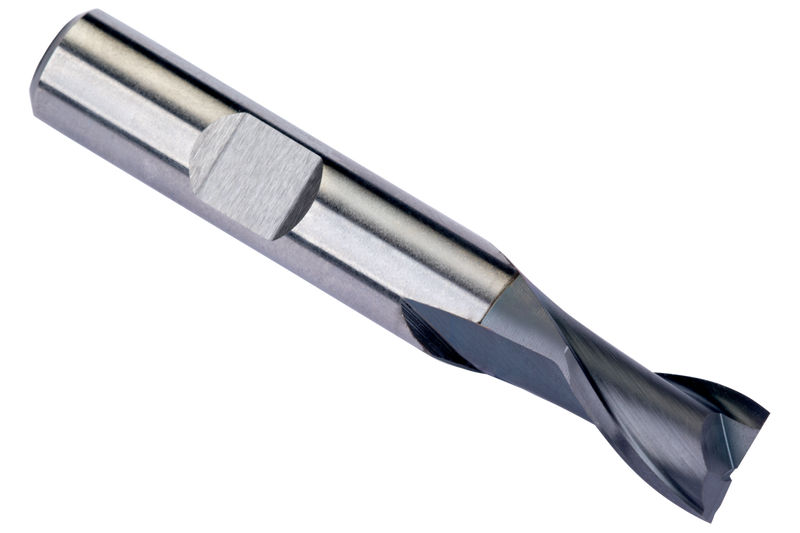

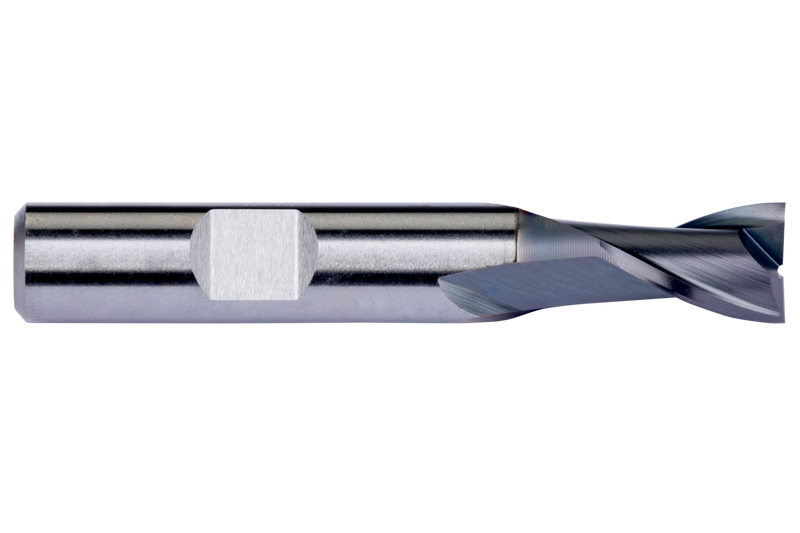

Fraise-scie à deux dents série extra-courte, diamètre 5 mm avec longueur de coupe de 8 mm et longueur totale de 52 mm, selon la norme DIN 327 D avec une queue Weldon de 6 mm, en HSS-E métallurgie des poudres avec revêtement TiCN, hélice à 30° et angle de coupe à 12° pour le fraisage d'épaulement, le fraisage de rainures et le fraisage en plongée dans l'acier de décolletage, l'acier au carbone et allié, la fonte, le cuivre ou les alliages de cuivre et le titane ou les alliages de titane

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C1265.0
GradeTiCN
Product Number5983892
Product FamilyC126
Insert Geometry
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Dimensions
Cutting Diameter — in (DC)0.1969"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)2.0472"
Overall Length — mm (OAL)52.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number354117
EAN7320760354117
File Type Download

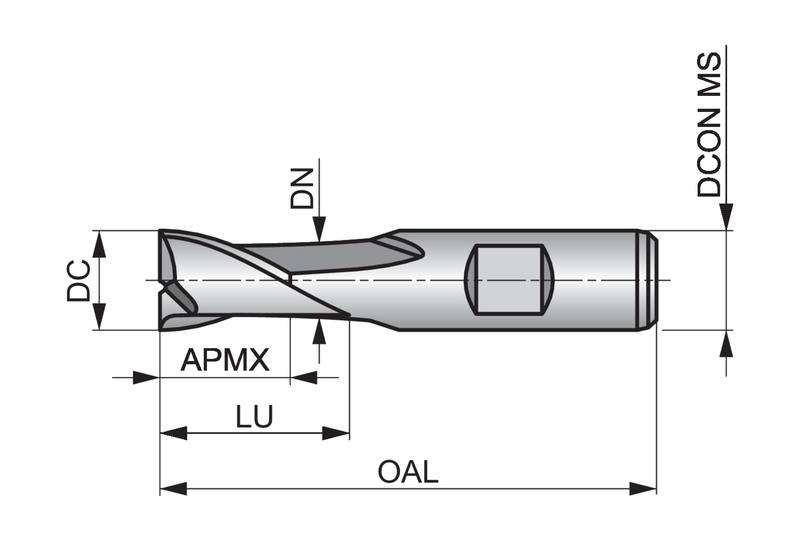

C1265.0 — Line Drawing PDF Download
