UGC DOR5983901
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$146.94 CAD - $146.94 CAD
$146.94 CAD
$146.94 CAD - $146.94 CAD
$146.94 CAD

Vendu en lots de : 1

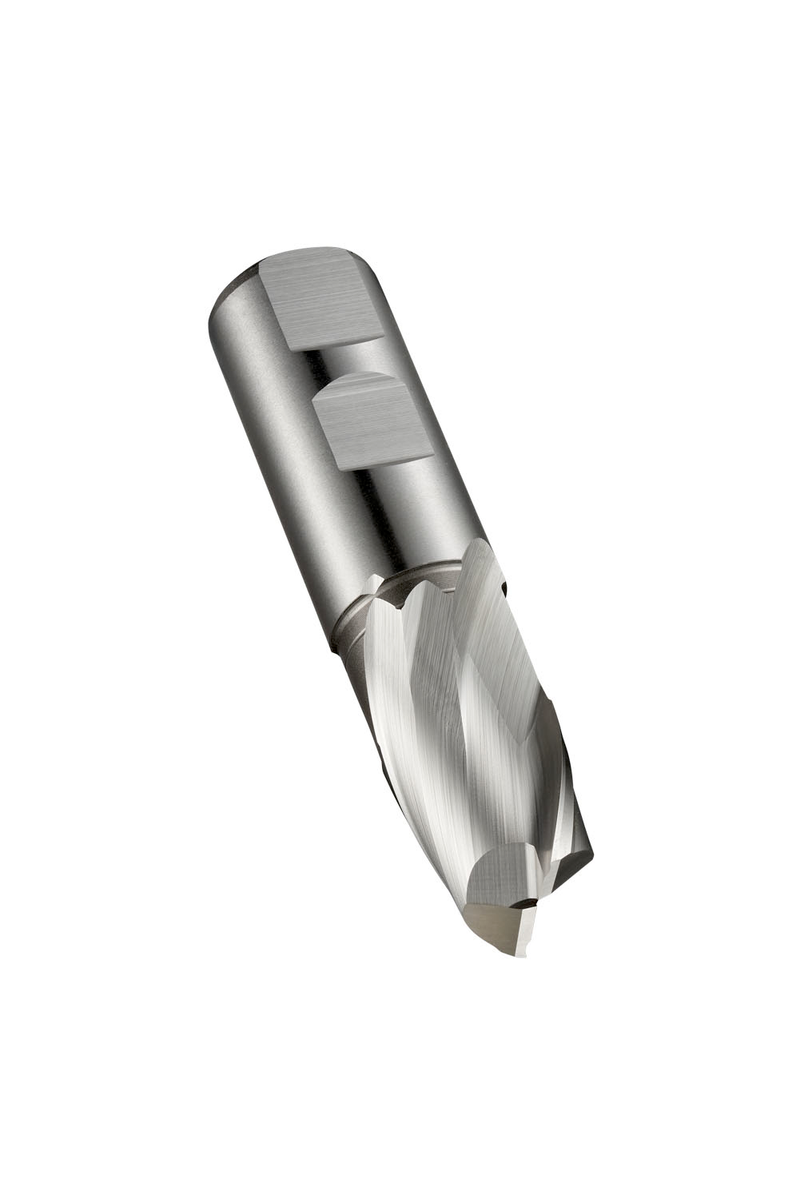

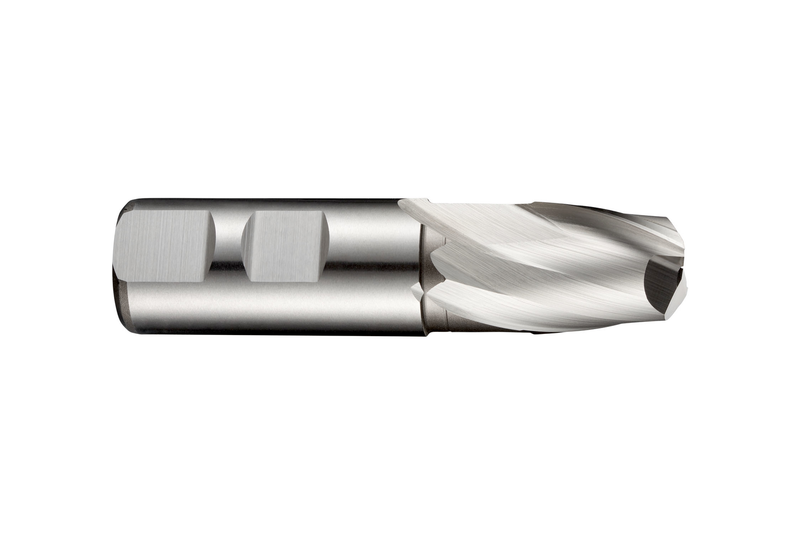

Fraise-scie extra-courte à 2 dents, diamètre 24mm, longueur de coupe 26mm, longueur totale 102mm et portée 45,5mm avec dégagement de la queue, selon la norme DIN 327 D avec une queue Weldon de 25mm, en acier rapide HSS-E métallurgie des poudres avec finition brillante, hélice 30° et angle de dépouille 12° pour le fraisage d'épaulement, le fraisage de rainures et l'interpolation hélicoïdale dans les aciers de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C11024.0
GradeLumineux
Product Number5983901
Product FamilyC110
Insert Geometry
Depth of Cut Max — in (APMX)1.0236"
Depth of Cut Max — mm (APMX)26.0 mm
Dimensions
Cutting Diameter — in (DC)0.9449"
Cutting Diameter — mm (DC)24.0 mm
Overall Length — in (OAL)4.0157"
Overall Length — mm (OAL)102.0 mm
Usable Length — mm (LU)45.5 mm
Connection Dia. — in (DCON)0.9843"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number573488
EAN7320760573488
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage possible
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
File Type Download
C11024.0 — Line Drawing PDF Download
