UGC DOR5983906
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$178.66 CAD - $178.66 CAD
$178.66 CAD
$178.66 CAD - $178.66 CAD
$178.66 CAD

Vendu en lots de : 1

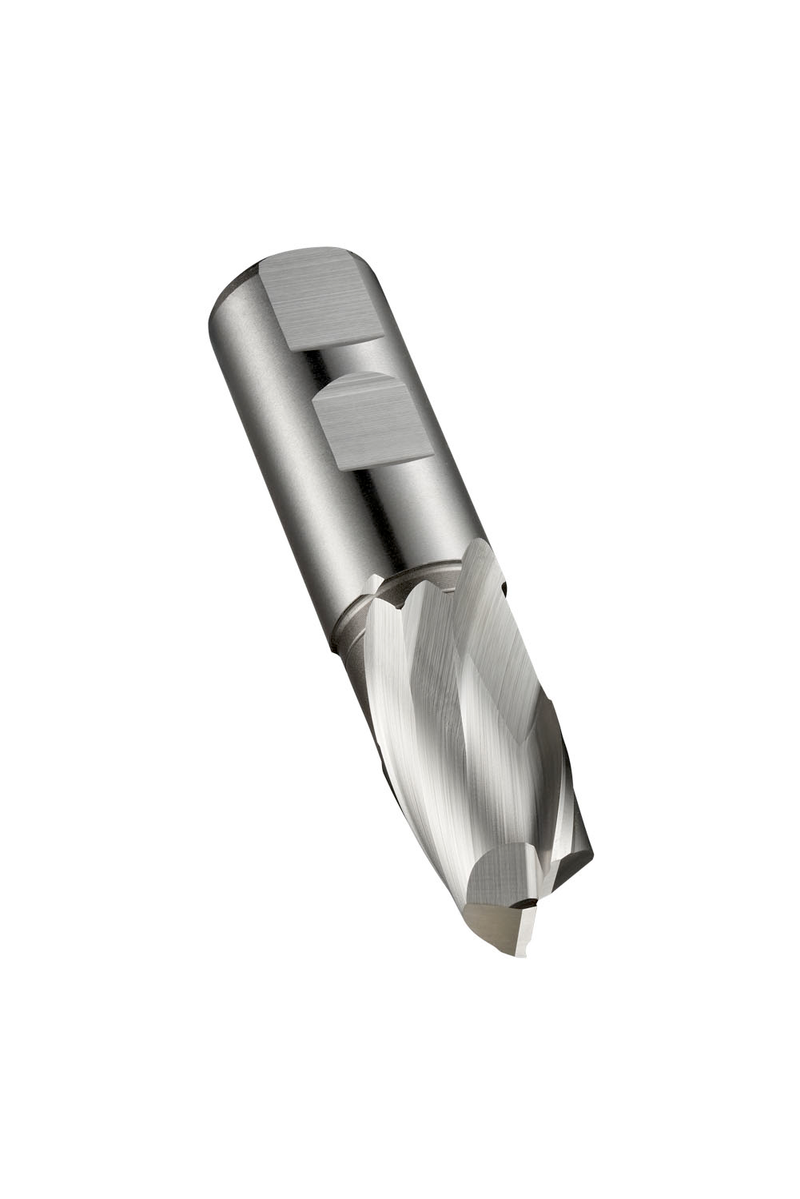

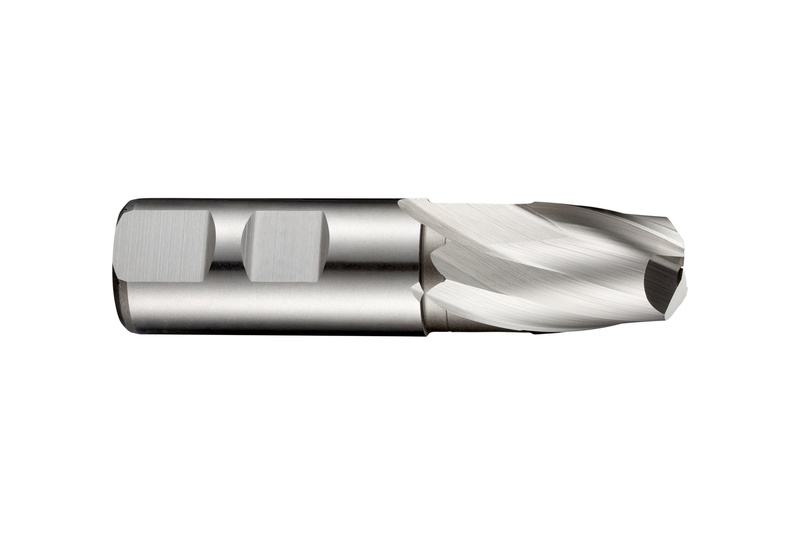

Fraise-scie extra-courte à 2 dents, diamètre 30 mm avec longueur de coupe 26 mm, longueur totale 102 mm et portée 45,5 mm avec dégagement de col, selon la norme DIN 327 D avec une queue Weldon de 25 mm, HSS-E métallurgie des poudres avec finition brillante, hélice à 30° et angle de dépouille à 12° pour le fraisage d'épaulements, le fraisage de fentes et le rampement dans l'acier de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C11030.0
GradeLumineux
Product Number5983906
Product FamilyC110
Insert Geometry
Depth of Cut Max — in (APMX)1.0236"
Depth of Cut Max — mm (APMX)26.0 mm
Dimensions
Cutting Diameter — in (DC)1.1811"
Cutting Diameter — mm (DC)30.0 mm
Overall Length — in (OAL)4.0157"
Overall Length — mm (OAL)102.0 mm
Usable Length — mm (LU)45.5 mm
Connection Dia. — in (DCON)0.9843"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number353400
EAN7320760353400
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
File Type Download
C11030.0 — Line Drawing PDF Download
