UGC DOR5983908
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$208.79 CAD - $208.79 CAD
$208.79 CAD
$208.79 CAD - $208.79 CAD
$208.79 CAD

Vendu en lots de : 1

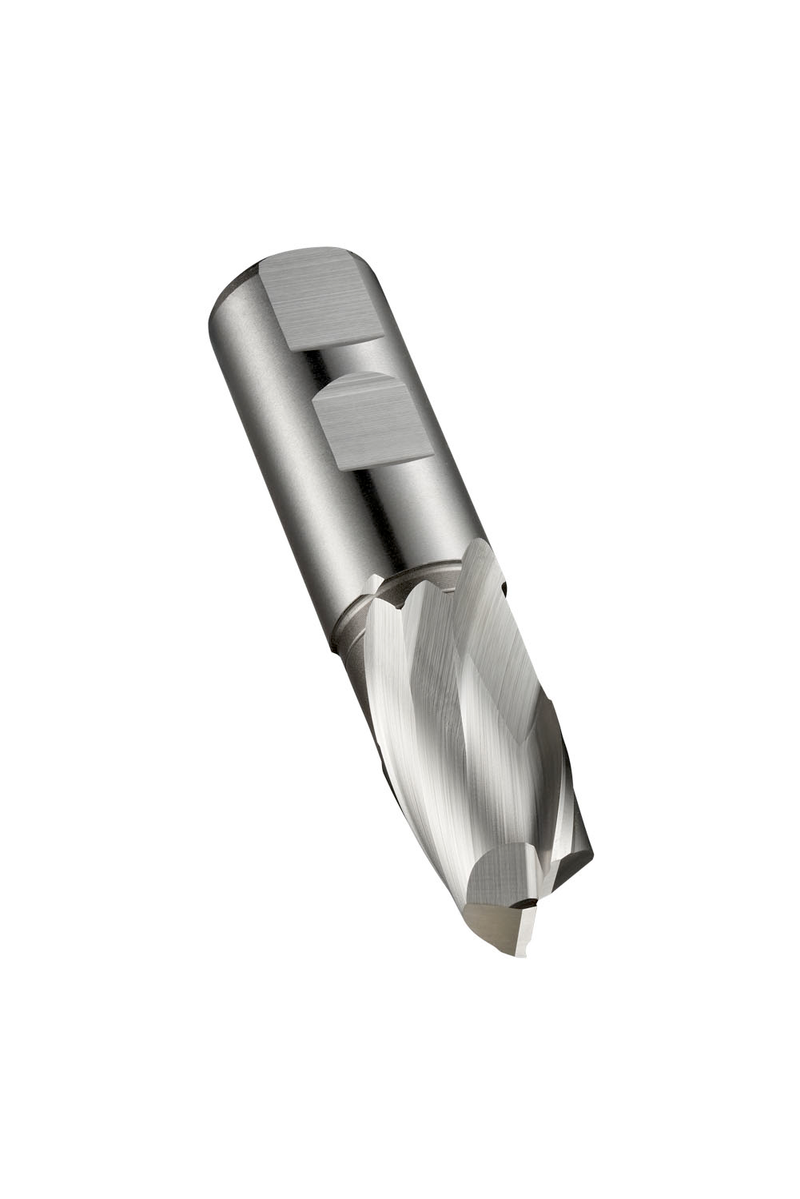

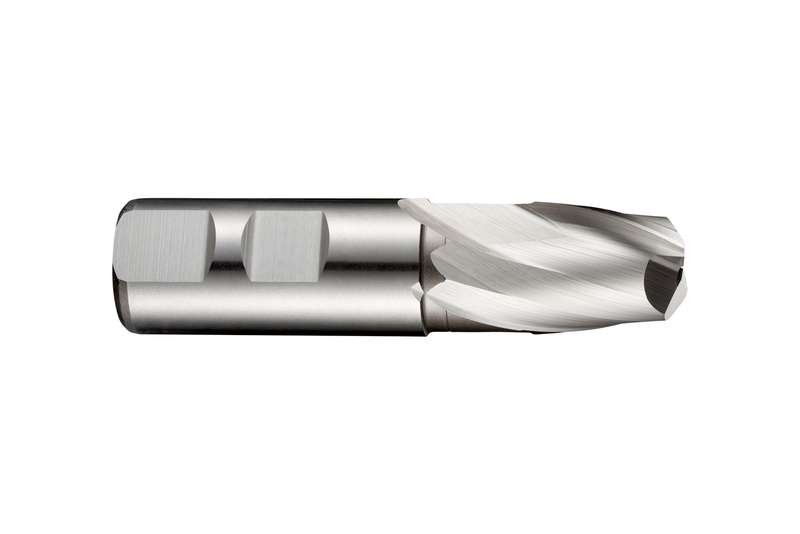

Fraise à rainurer à queue cylindrique série extra courte 2 dents, diamètre 32mm avec une longueur de coupe de 32mm, longueur totale 112mm et 51.5mm de portée avec dégagement du col, selon la norme DIN 327 D avec une queue Weldon 32mm, en HSS-E métallurgie des poudres avec finition brillante, hélice à 30° et angle de dépouille de 12° pour le surfaçage, le fraisage de rainures et le fraisage en plongée dans l'acier de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C11032.0
GradeLumineux
Product Number5983908
Product FamilyC110
Insert Geometry
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm
Dimensions
Cutting Diameter — in (DC)1.2598"
Cutting Diameter — mm (DC)32.0 mm
Overall Length — in (OAL)4.4094"
Overall Length — mm (OAL)112.0 mm
Usable Length — mm (LU)51.5 mm
Connection Dia. — in (DCON)1.2598"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number353417
EAN7320760353417
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
File Type Download
C11032.0 — Line Drawing PDF Download
