UGC DOR5983910
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$218.30 CAD - $218.30 CAD
$218.30 CAD
$218.30 CAD - $218.30 CAD
$218.30 CAD

Vendu en lots de : 1

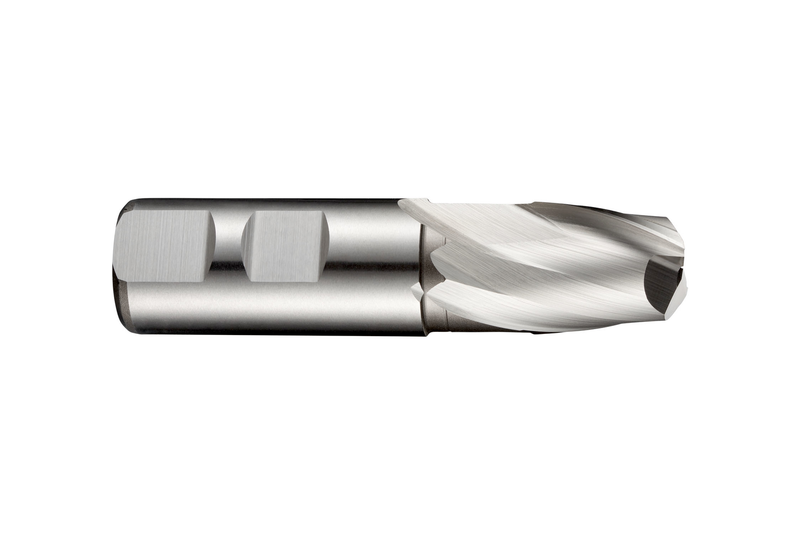

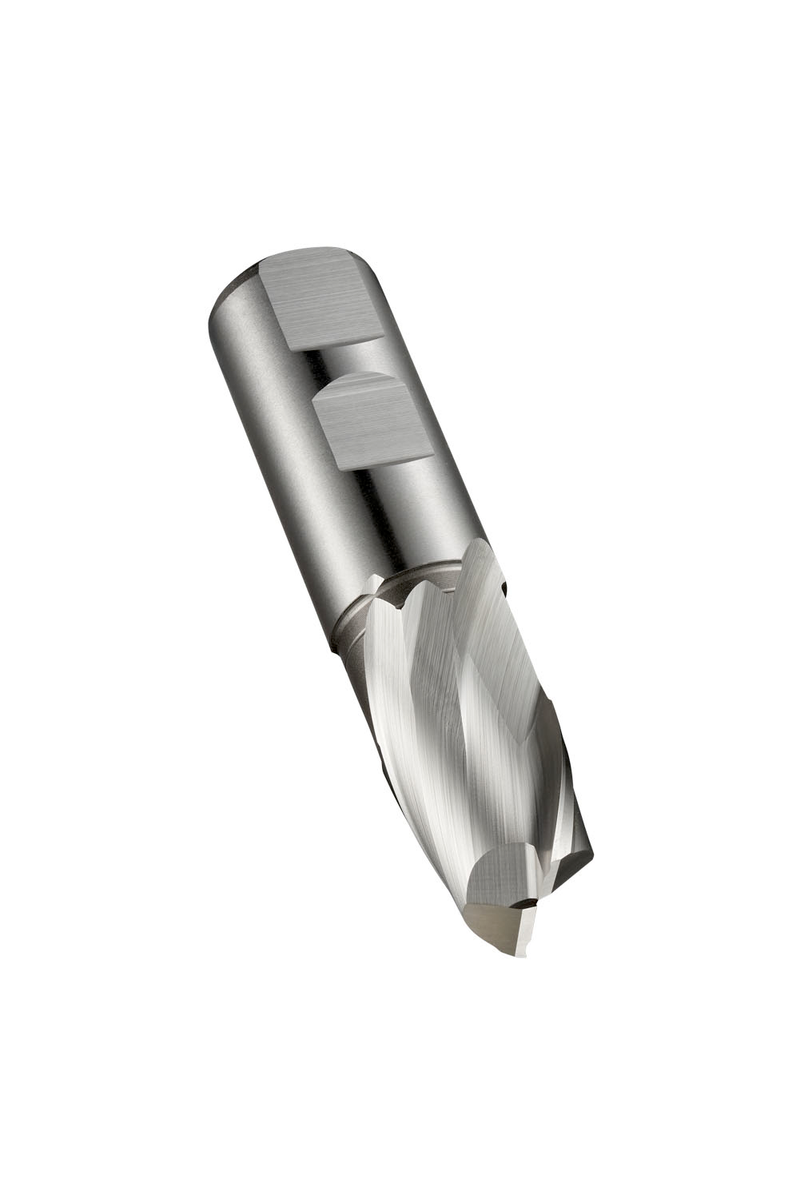

Fraise-scie extra-courte 2 taillants, diamètre 35 mm avec 32 mm de longueur de coupe, 112 mm de longueur totale et 51,5 mm de portée avec dégagement, selon la norme DIN 327 D avec queue Weldon de 32 mm, HSS-E métallurgie des poudres avec finition brillante, hélice à 30° et angle de dépouille à 12° pour le fraisage d'épaulement, le fraisage de rainures et le surfaçage dans les aciers à usinage libre et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C11035.0
GradeLumineux
Product Number5983910
Product FamilyC110
Insert Geometry
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm
Dimensions
Cutting Diameter — in (DC)1.378"
Cutting Diameter — mm (DC)35.0 mm
Overall Length — in (OAL)4.4094"
Overall Length — mm (OAL)112.0 mm
Usable Length — mm (LU)51.5 mm
Connection Dia. — in (DCON)1.2598"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number639986
EAN7320760639986
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
File Type Download
C11035.0 — Line Drawing PDF Download
