UGC DOR5983912
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$222.53 CAD - $222.53 CAD
$222.53 CAD
$222.53 CAD - $222.53 CAD
$222.53 CAD

Vendu en lots de : 1

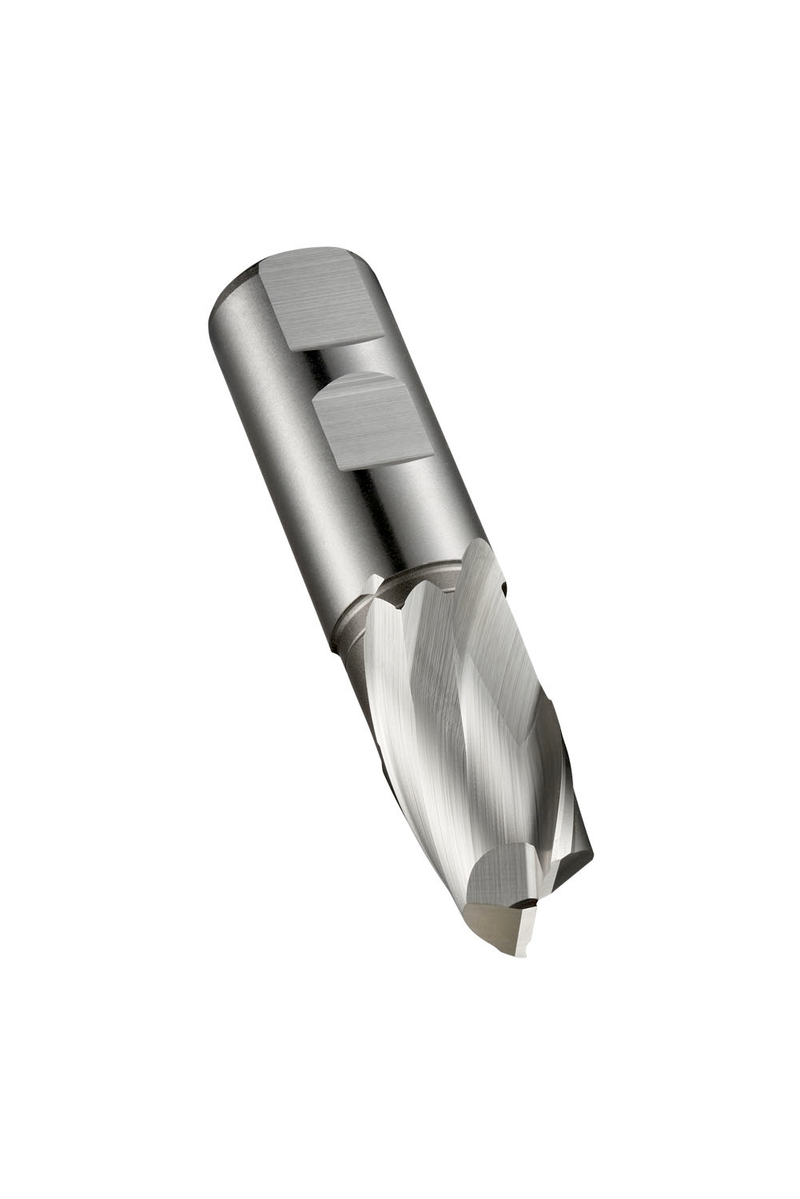

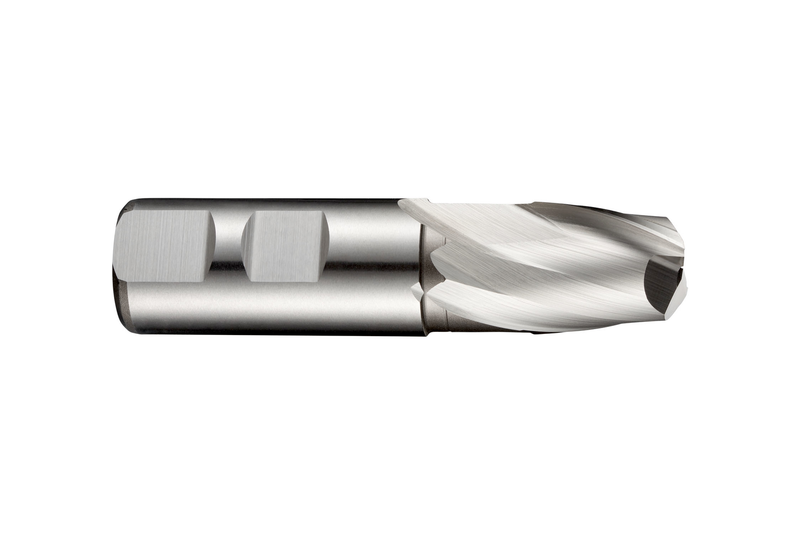

Fraise-scie extra-courte 2 taillants, diamètre 36 mm avec longueur de coupe 32 mm, longueur totale 112 mm et longueur utile 51,5 mm avec dégagement de col, selon la norme DIN 327 D avec une queue Weldon 32 mm, en HSS-E métallurgie des poudres avec finition brillante, hélice 30° et angle de dépouille 12° pour le fraisage d'épaulement, le fraisage de rainures et l'interpolation hélicoïdale dans les aciers à usinabilité améliorée et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C11036.0
GradeLumineux
Product Number5983912
Product FamilyC110
Insert Geometry
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm
Dimensions
Cutting Diameter — in (DC)1.4173"
Cutting Diameter — mm (DC)36.0 mm
Overall Length — in (OAL)4.4094"
Overall Length — mm (OAL)112.0 mm
Usable Length — mm (LU)51.5 mm
Connection Dia. — in (DCON)1.2598"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number628997
EAN7320760628997
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
File Type Download
C11036.0 — Line Drawing PDF Download
