UGC DOR5983923
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$106.20 CAD - $106.20 CAD
$106.20 CAD
$106.20 CAD - $106.20 CAD
$106.20 CAD

Vendu en lots de : 1

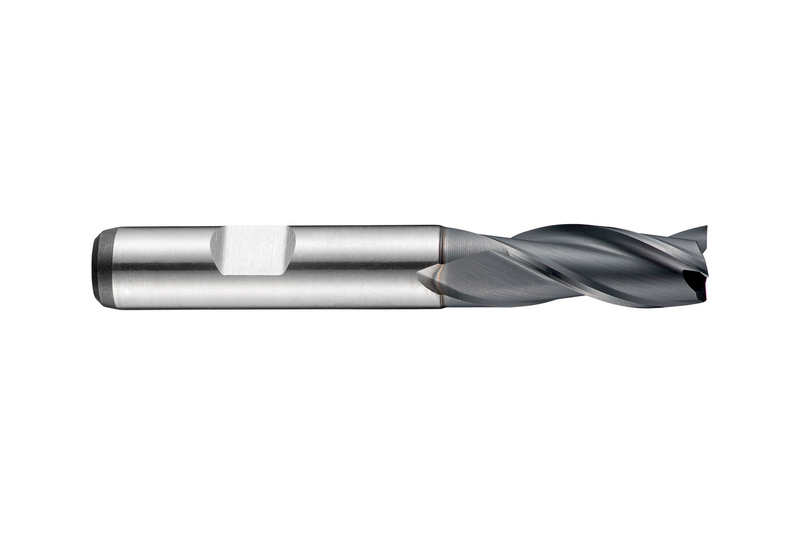

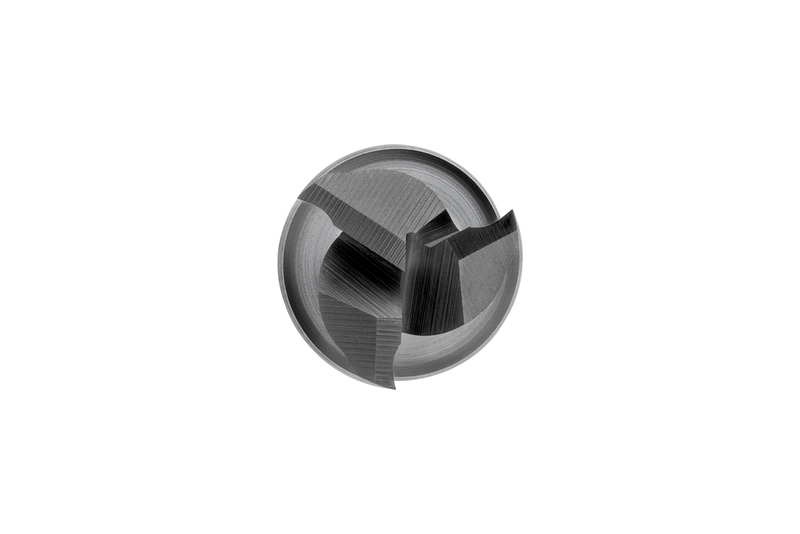

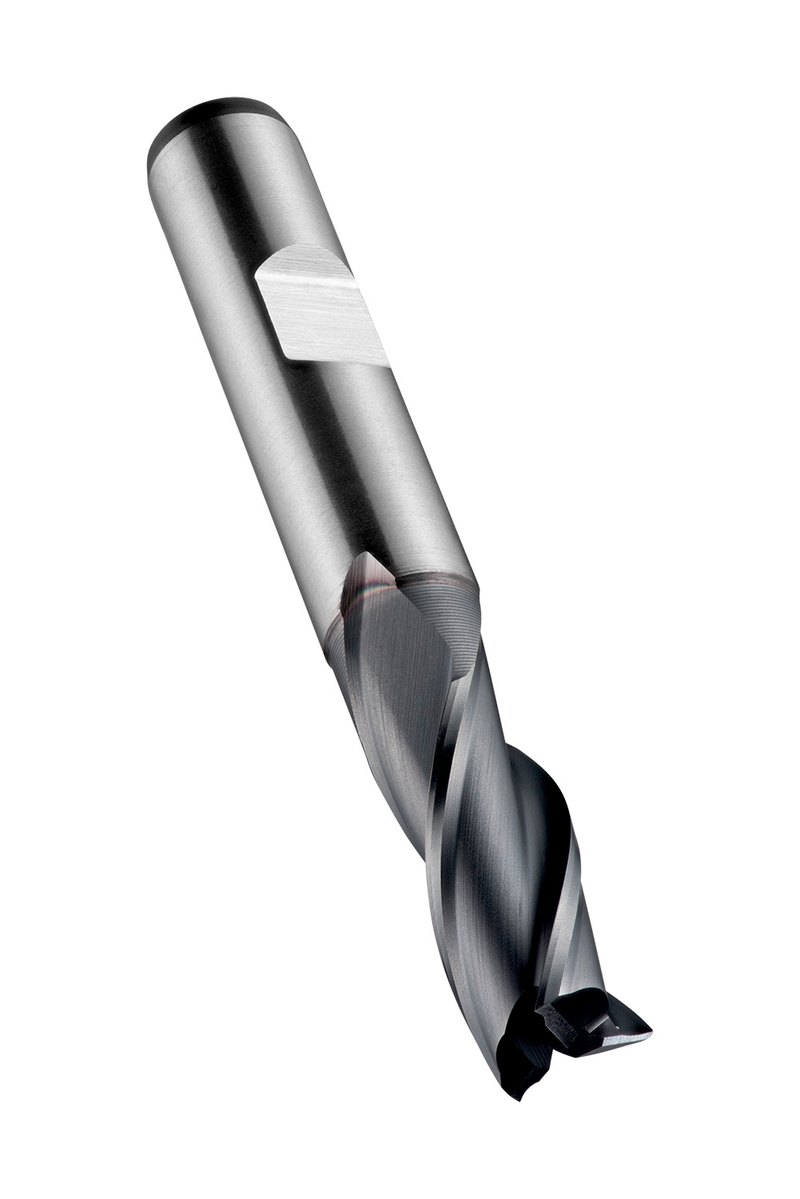

Fraise 3 dents en bout à queue cylindrique, série courte, diamètre 12mm, longueur de coupe 26mm, longueur totale 83mm et portée de 37,5mm avec dégagement de collet, selon la norme DIN 844 K, avec un queue Weldon de 12mm, en HSS-E métallurgie des poudres avec revêtement Alcrona, hélice à 30° et angle de coupe à 12° pour le surfaçage, le fraisage de rainures et l'interpolation hélicoïdale dans l'acier et l'acier moulé, la fonte, le cuivre ou les alliages de cuivre et le titane ou les alliages de titane

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C35212.0
GradeALCRONA
Product Number5983923
Product FamilyC352
Insert Geometry
Depth of Cut Max — in (APMX)1.0236"
Depth of Cut Max — mm (APMX)26.0 mm
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)3.2677"
Overall Length — mm (OAL)83.0 mm
Usable Length — mm (LU)37.5 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number572979
EAN7320760572979
File Type Download
C35212.0 — Line Drawing PDF Download
