UGC DOR5983927
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$82.20 CAD - $82.20 CAD
$82.20 CAD
$82.20 CAD - $82.20 CAD
$82.20 CAD

Vendu en lots de : 1

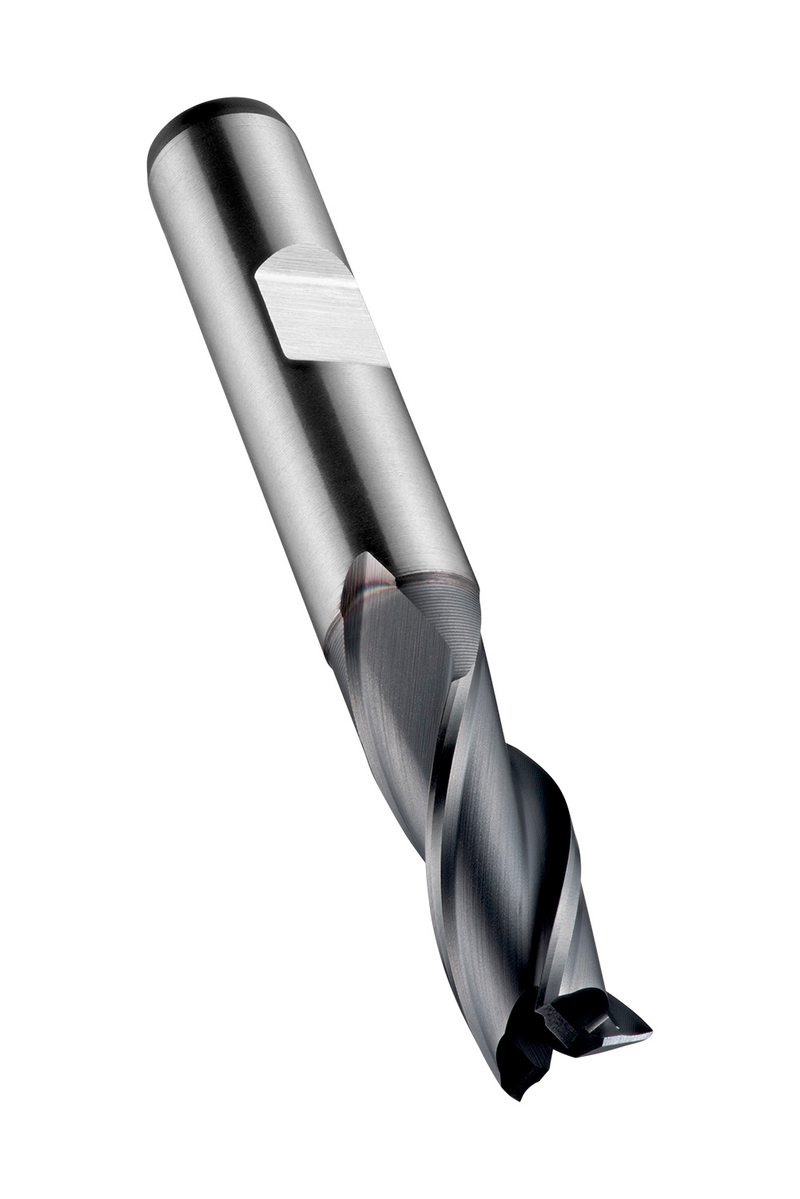

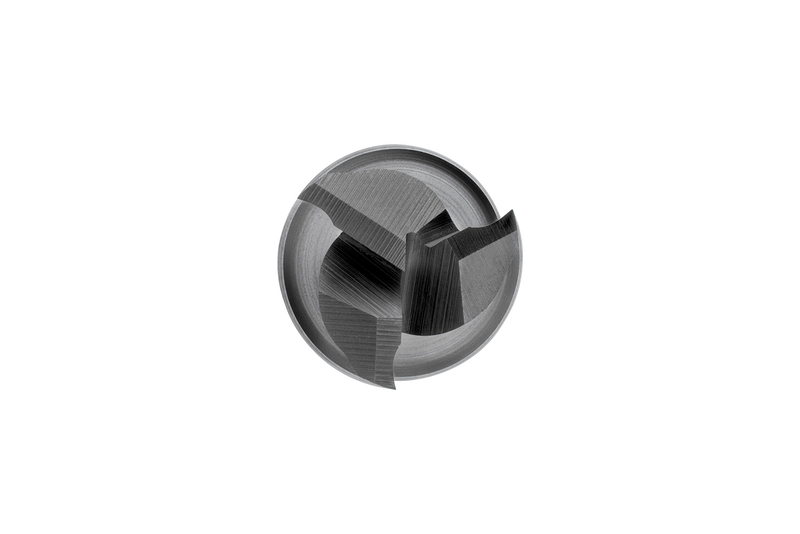

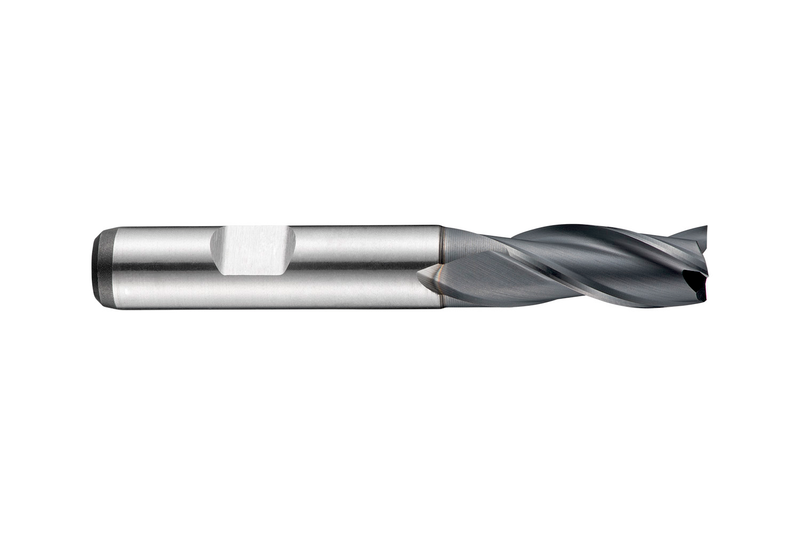

Fraise 3 dents à queue cylindrique, série courte, diamètre 8 mm, longueur de coupe 19 mm et longueur totale 69 mm, selon la norme DIN 844 K avec queue Weldon 10 mm, en HSS-E métallurgie des poudres avec revêtement Alcrona, hélice 30° et angle de coupe 12° pour le fraisage d'épaulement, le fraisage de rainures et l'usinage en ramping dans l'acier et l'acier moulé, la fonte, le cuivre ou les alliages de cuivre et le titane ou les alliages de titane

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C3528.0
GradeALCRONA
Product Number5983927
Product FamilyC352
Insert Geometry
Depth of Cut Max — in (APMX)0.748"
Depth of Cut Max — mm (APMX)19.0 mm
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.7165"
Overall Length — mm (OAL)69.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number573068
EAN7320760573068
File Type Download
C3528.0 — Line Drawing PDF Download
