UGC DOR5983936
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$105.00 CAD - $105.00 CAD
$105.00 CAD
$105.00 CAD - $105.00 CAD
$105.00 CAD

Vendu en lots de : 1

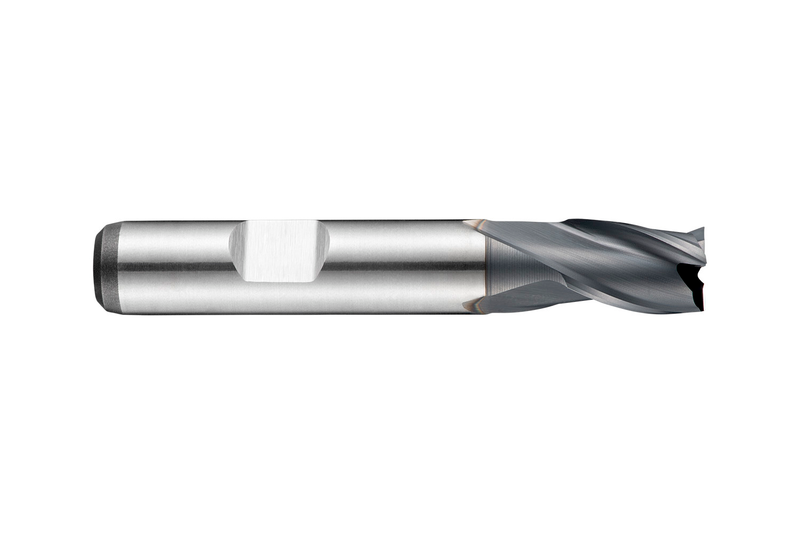

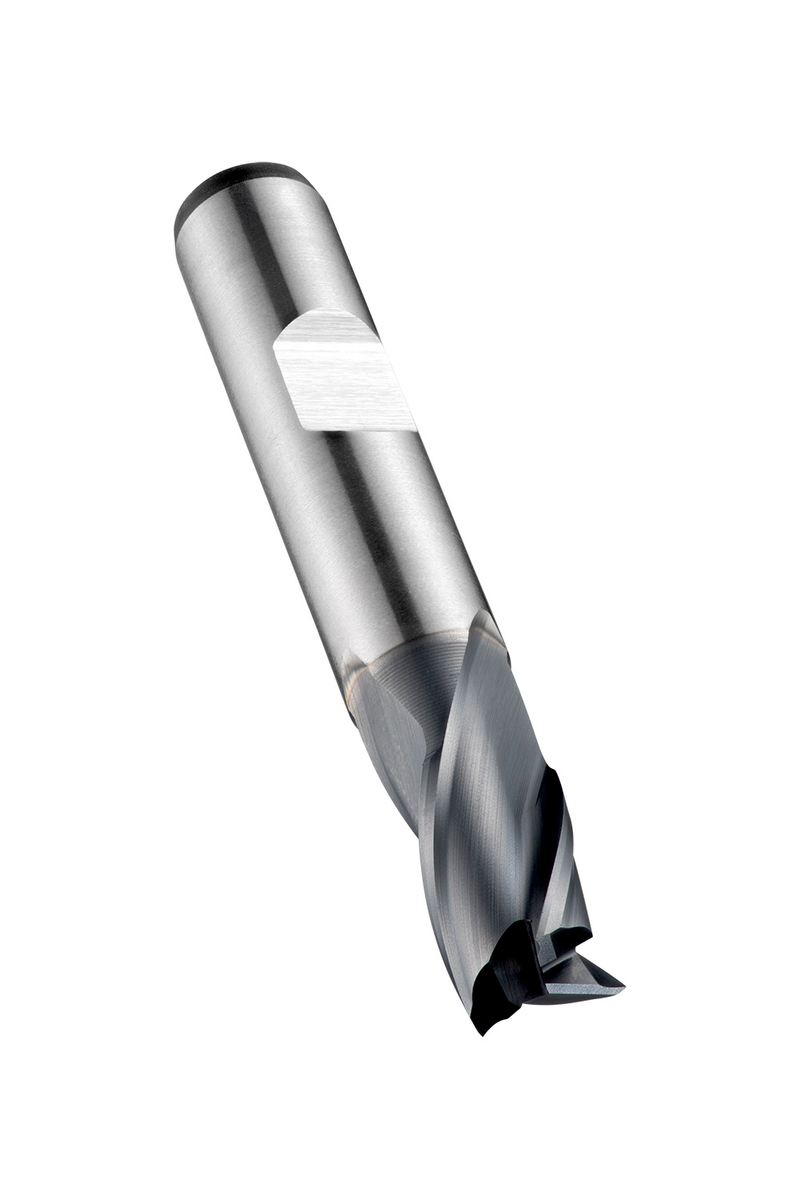

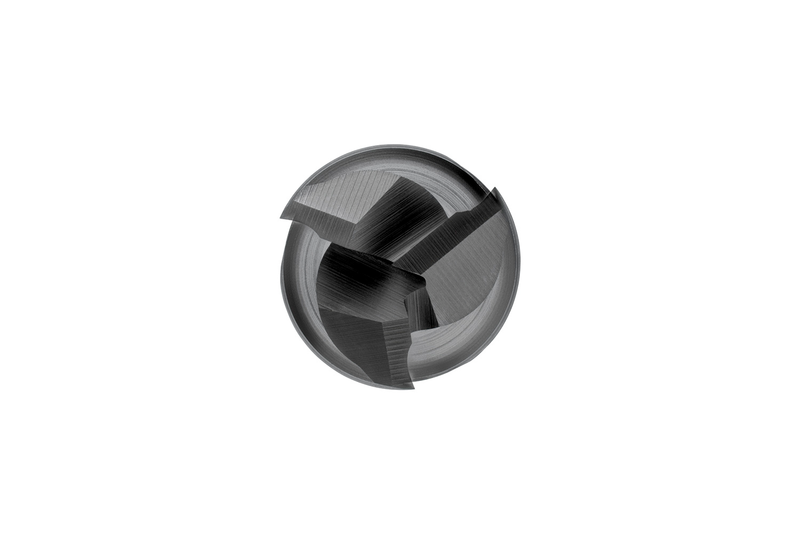

Fraise-scie à rainurer série extra-courte à 3 dents, diamètre 11 mm avec une longueur de coupe de 13 mm et une longueur totale de 70 mm, selon la norme DIN 327 D avec une queue Weldon de 12 mm, en HSS-E métallurgie des poudres avec revêtement Alcrona, hélice de 30° et angle de dépouille de 12° pour le fraisage d'épaulement, le fraisage de rainures et le surfaçage en acier et acier moulé, fonte, cuivre ou alliages de cuivre et titane ou alliages de titane

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C35311.0
GradeALCRONA
Product Number5983936
Product FamilyC353
Insert Geometry
Depth of Cut Max — in (APMX)0.5118"
Depth of Cut Max — mm (APMX)13.0 mm
Dimensions
Cutting Diameter — in (DC)0.4331"
Cutting Diameter — mm (DC)11.0 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number573082
EAN7320760573082
File Type Download
C35311,0 — Line Drawing PDF Download
