UGC DOR5983955
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$59.73 CAD - $59.73 CAD
$59.73 CAD
$59.73 CAD - $59.73 CAD
$59.73 CAD

Vendu en lots de : 1

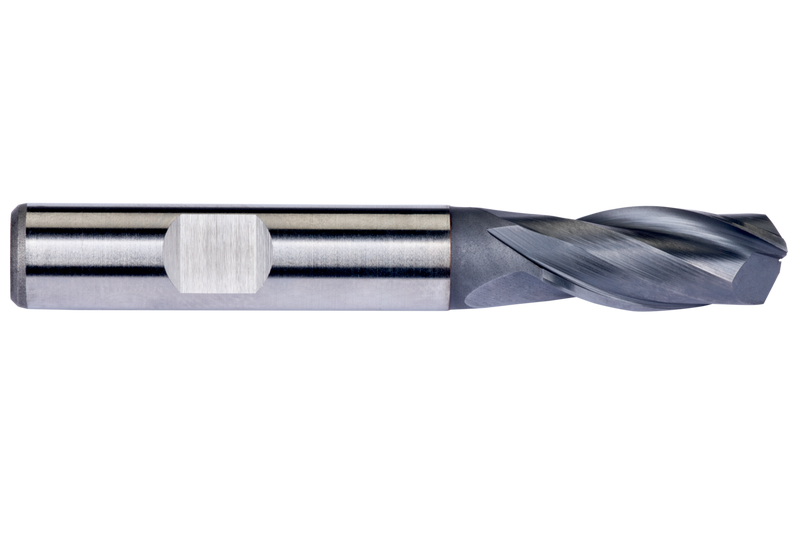

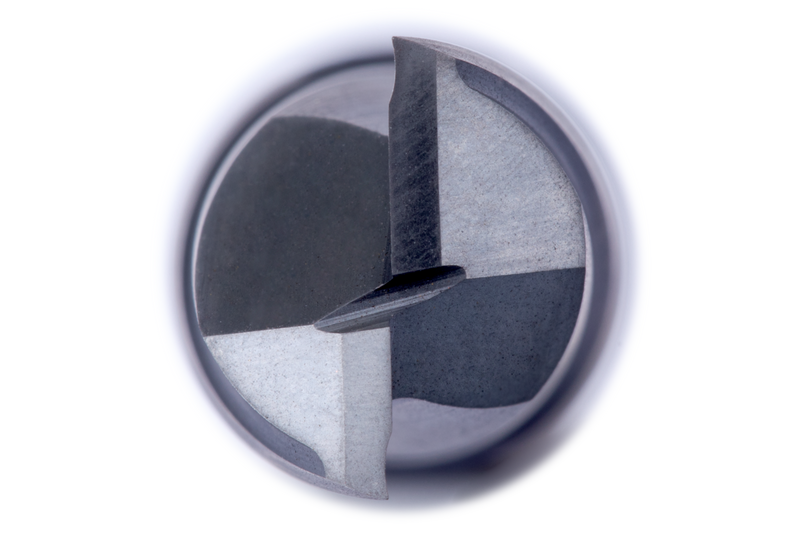

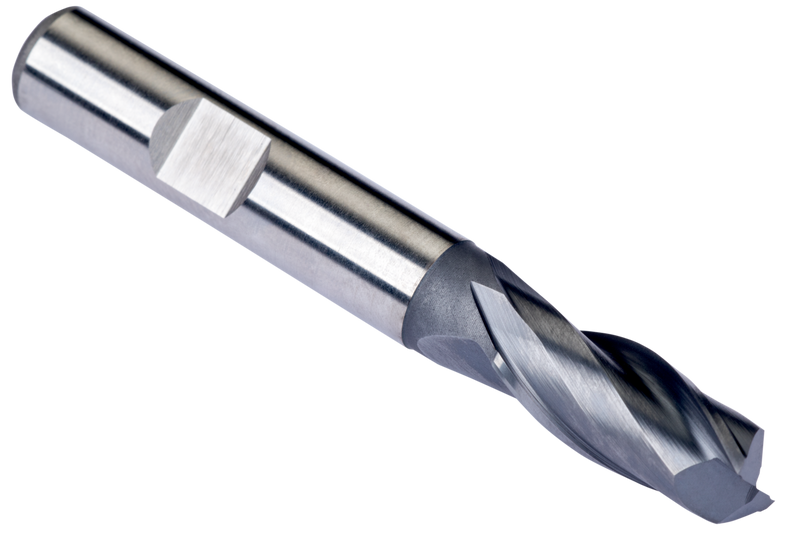

Fraise 2 tailles série courte, diamètre 10 mm, longueur de coupe 22 mm, longueur totale 72 mm et portée 31,5 mm avec dégagement de queue, selon la norme DIN 844 K avec queue Weldon 10 mm, HSS-E métallurgie des poudres avec revêtement TiCN, hélice 30° et angle de dépouille 12° pour le fraisage d'épaulement, le fraisage de rainures et l'interpolation hélicoïdale dans les aciers de décolletage, les aciers au carbone et alliés, la fonte, le cuivre ou les alliages de cuivre et le titane ou les alliages de titane

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C13910.0
GradeTiCN
Product Number5983955
Product FamilyC139
Insert Geometry
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.8346"
Overall Length — mm (OAL)72.0 mm
Usable Length — mm (LU)31.5 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number354223
EAN7320760354223
File Type Download
C13910.0 — Line Drawing PDF Download
