UGC DOR5983958
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.69 CAD - $23.69 CAD
$23.69 CAD
$23.69 CAD - $23.69 CAD
$23.69 CAD

Vendu en lots de : 1

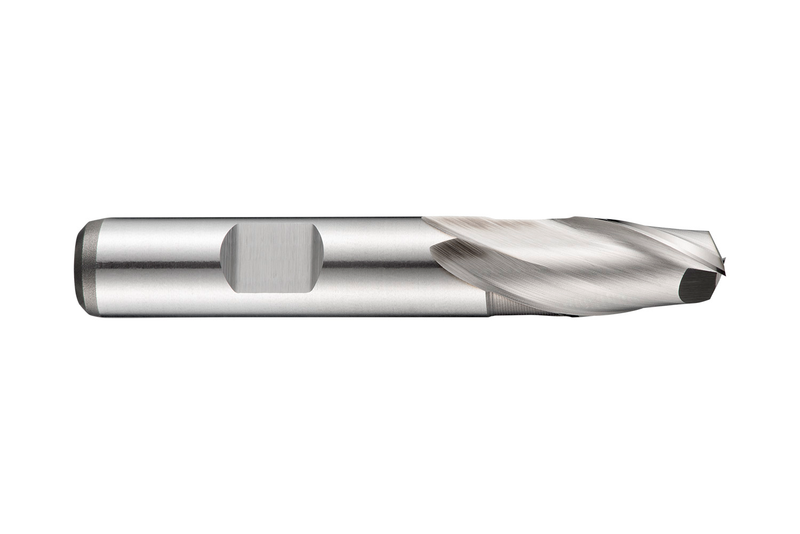

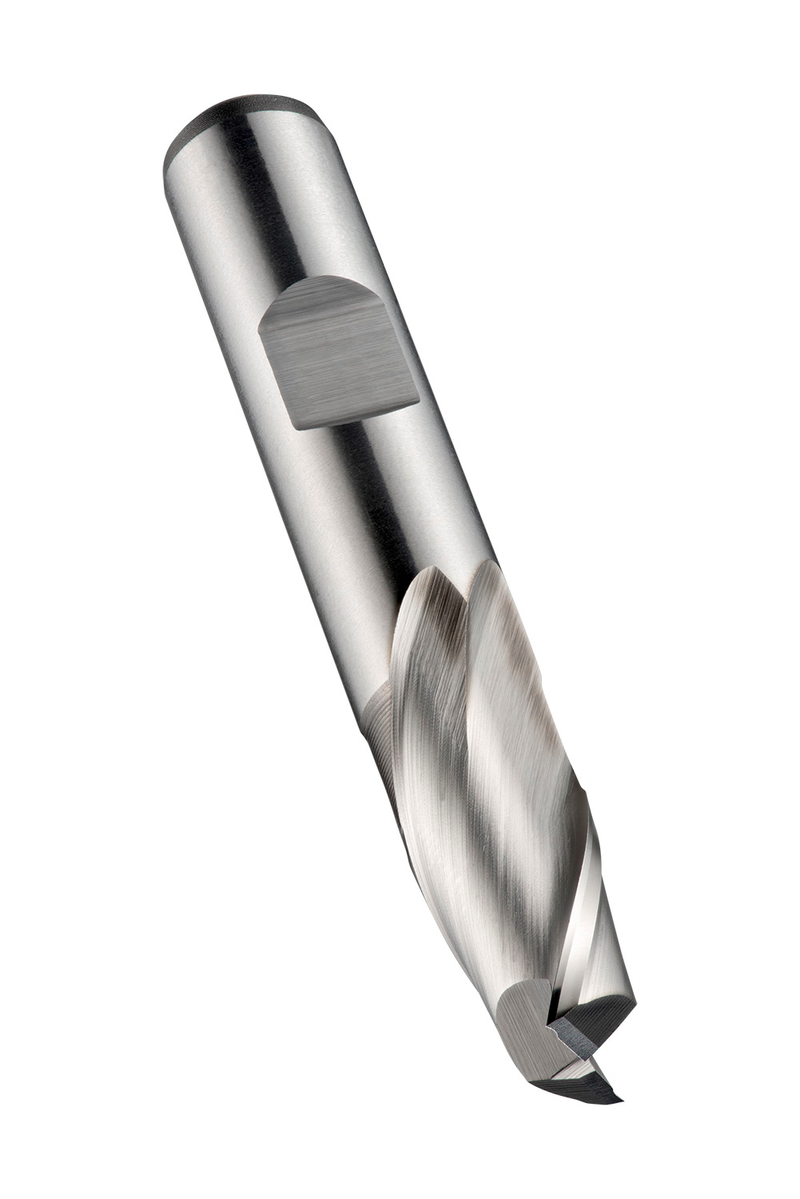

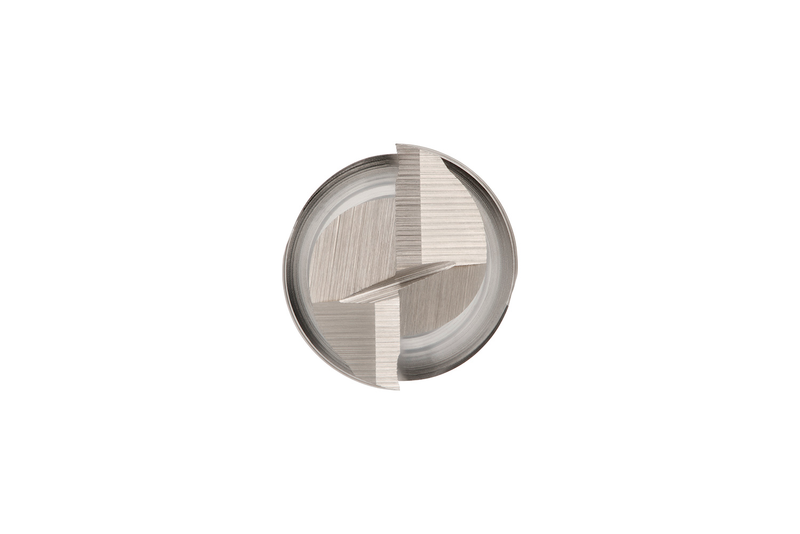

Fraise-scie extra courte à deux dents, diamètre 6 mm avec 8 mm de longueur de coupe et 52 mm de longueur totale, conforme à la norme DIN 327 D avec une queue Weldon de 6 mm, en acier rapide HSS-E métallurgie des poudres, finition brillante, hélice de 30° et angle de dépouille de 12° pour le surfaçage, le rainurage et le fraisage en plongée dans les aciers à usinage libre et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C1106.0
GradeLumineux
Product Number5983958
Product FamilyC110
Insert Geometry
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)2.0472"
Overall Length — mm (OAL)52.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number353486
EAN7320760353486
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
File Type Download

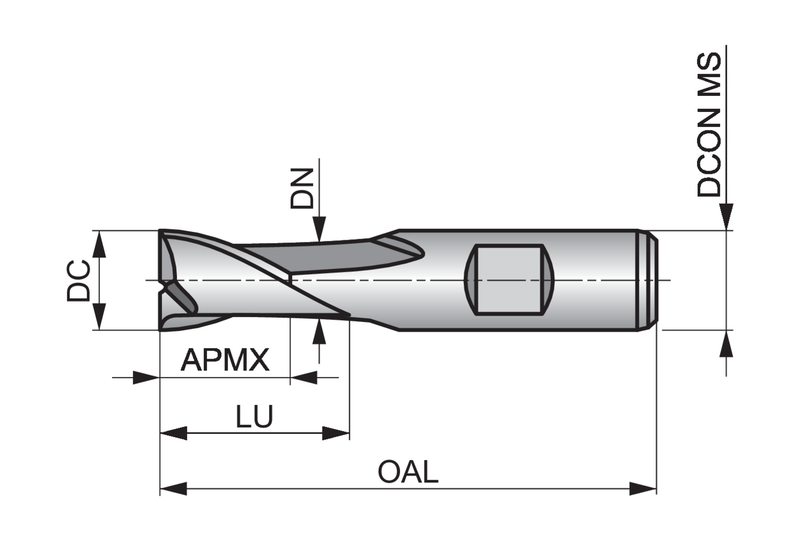

C1106.0 — Line Drawing PDF Download
