C11025.0
C11025.0
C11025.0
C11025.0

C11025.0

UGC DOR5983967
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$143.24 CAD - $143.24 CAD
$143.24 CAD
$143.24 CAD - $143.24 CAD
$143.24 CAD

Vendu en lots de : 1

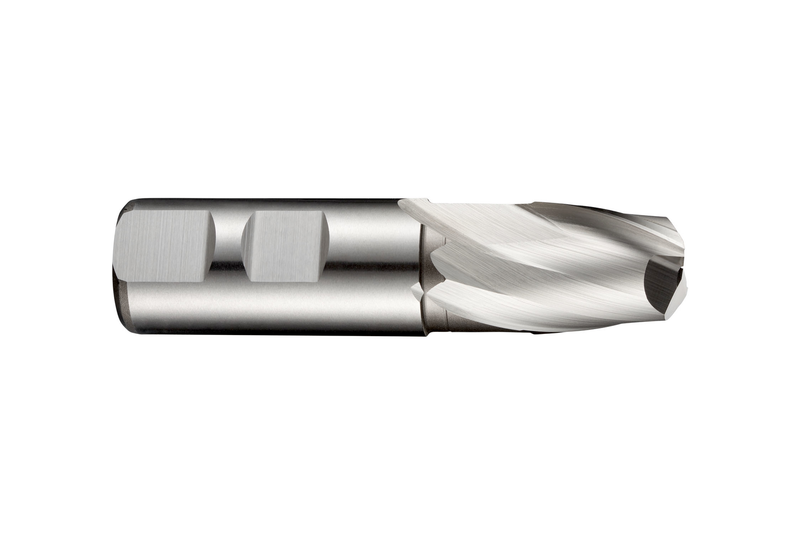

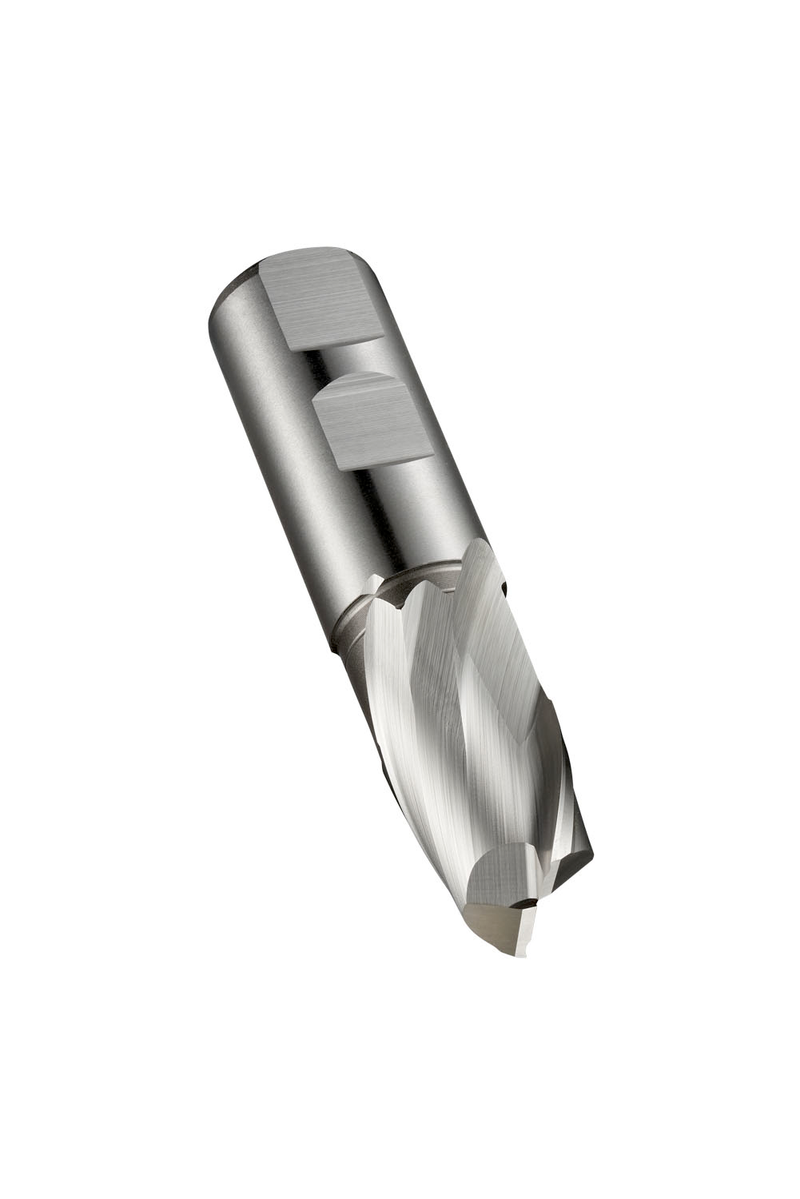

Fraise-scie à queue extra-courte à 2 dents, diamètre 25mm avec une longueur de coupe de 26mm, longueur totale de 102mm et portée de 45.5mm avec dégagement de col, selon la norme DIN 327 D avec une queue Weldon de 25mm, en HSS-E métallurgie des poudres avec finition brillante, hélice de 30° et angle de dépouille de 12° pour le fraisage d'épaulement, le fraisage de rainure et le ramping dans l'acier de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C11025.0
GradeLumineux
Product Number5983967
Product FamilyC110
Insert Geometry
Depth of Cut Max — in (APMX)1.0236"
Depth of Cut Max — mm (APMX)26.0 mm
Dimensions
Cutting Diameter — in (DC)0.9843"
Cutting Diameter — mm (DC)25.0 mm
Overall Length — in (OAL)4.0157"
Overall Length — mm (OAL)102.0 mm
Usable Length — mm (LU)45.5 mm
Connection Dia. — in (DCON)0.9843"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number353356
EAN7320760353356
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
File Type Download
C11025.0 — Line Drawing PDF Download
