UGC DOR5983968
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$141.13 CAD - $141.13 CAD
$141.13 CAD
$141.13 CAD - $141.13 CAD
$141.13 CAD

Vendu en lots de : 1

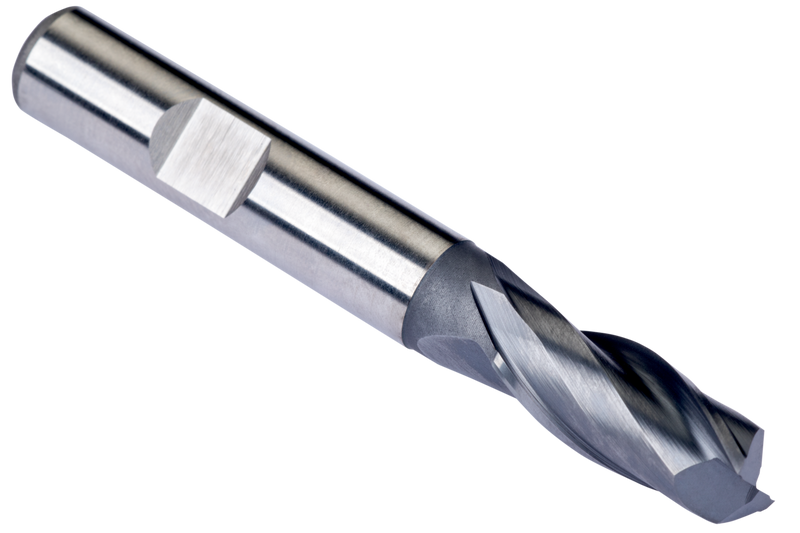

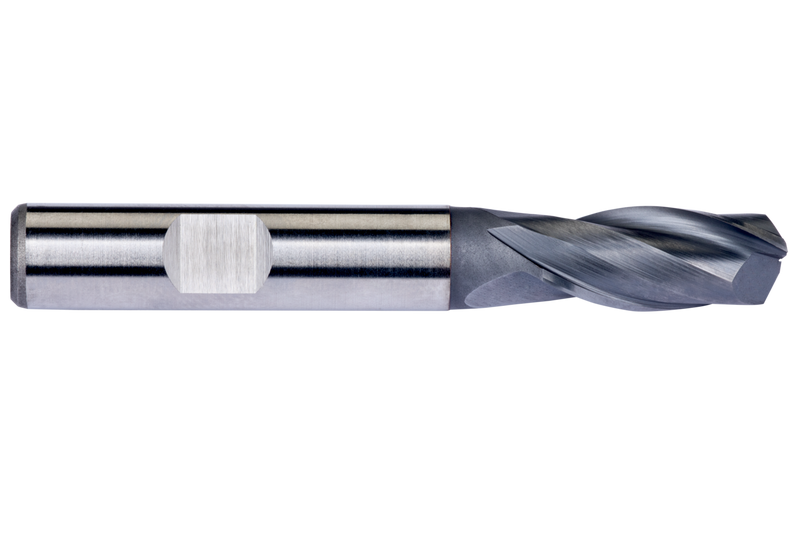

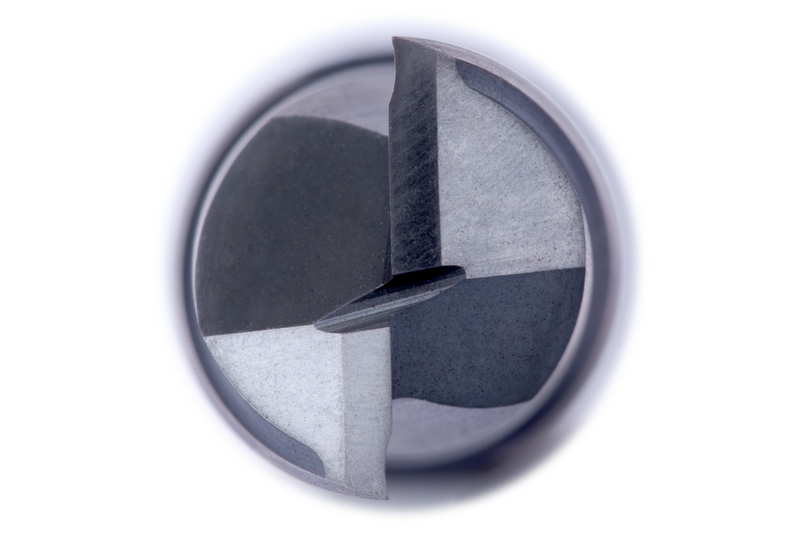

Fraise 2 tailles à queue cylindrique, série courte, diamètre 20mm, longueur de coupe 38mm, longueur totale 104mm et dégagement de 53,5mm, selon la norme DIN 844 K, avec un queue Weldon de 20mm, en HSS-E (métallurgie des poudres) avec revêtement TiCN, hélice à 30° et angle de dépouille de 12° pour le fraisage d'épaulements, le fraisage de rainures et l'usinage en plongée dans l'acier de décolletage, l'acier au carbone et allié, la fonte, le cuivre ou les alliages de cuivre et le titane ou les alliages de titane

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C13920.0
GradeTiCN
Product Number5983968
Product FamilyC139
Insert Geometry
Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm
Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)4.0945"
Overall Length — mm (OAL)104.0 mm
Usable Length — mm (LU)53.5 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue à l'avaleuse DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number354322
EAN7320760354322
File Type Download
C13920.0 — Line Drawing PDF Download
