UGC DOR5983978
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$87.60 CAD - $87.60 CAD
$87.60 CAD
$87.60 CAD - $87.60 CAD
$87.60 CAD

Vendu en lots de : 1

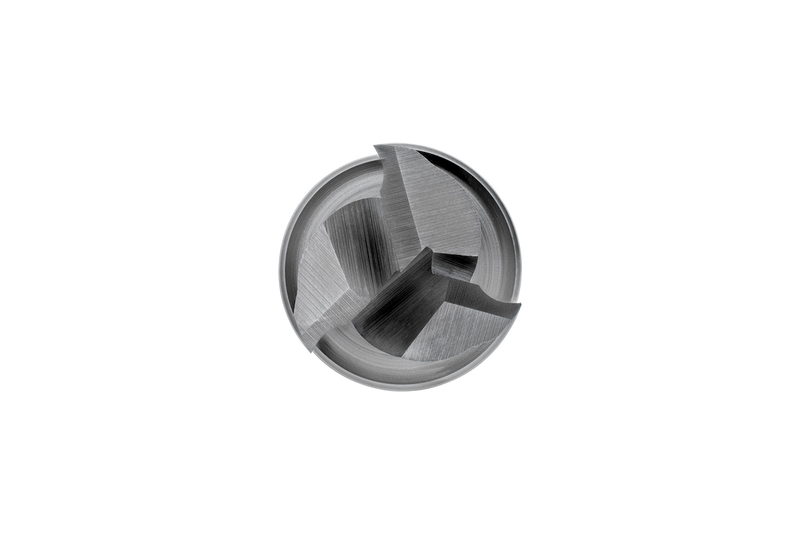

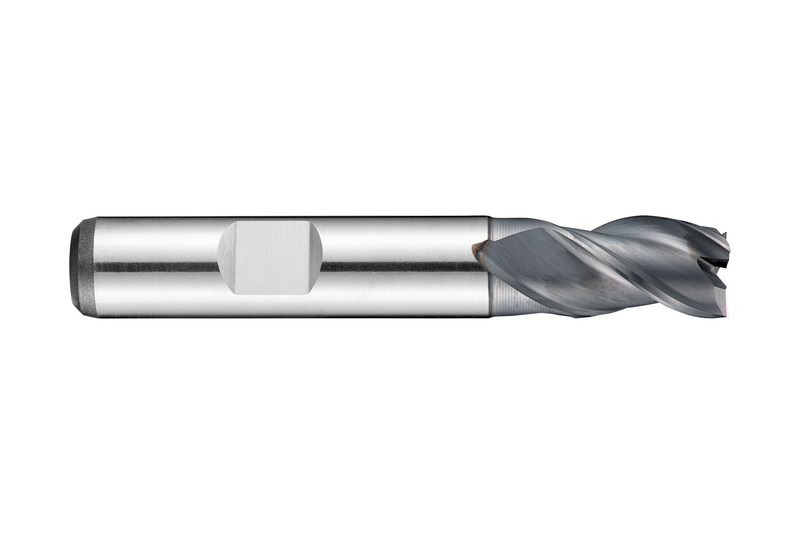

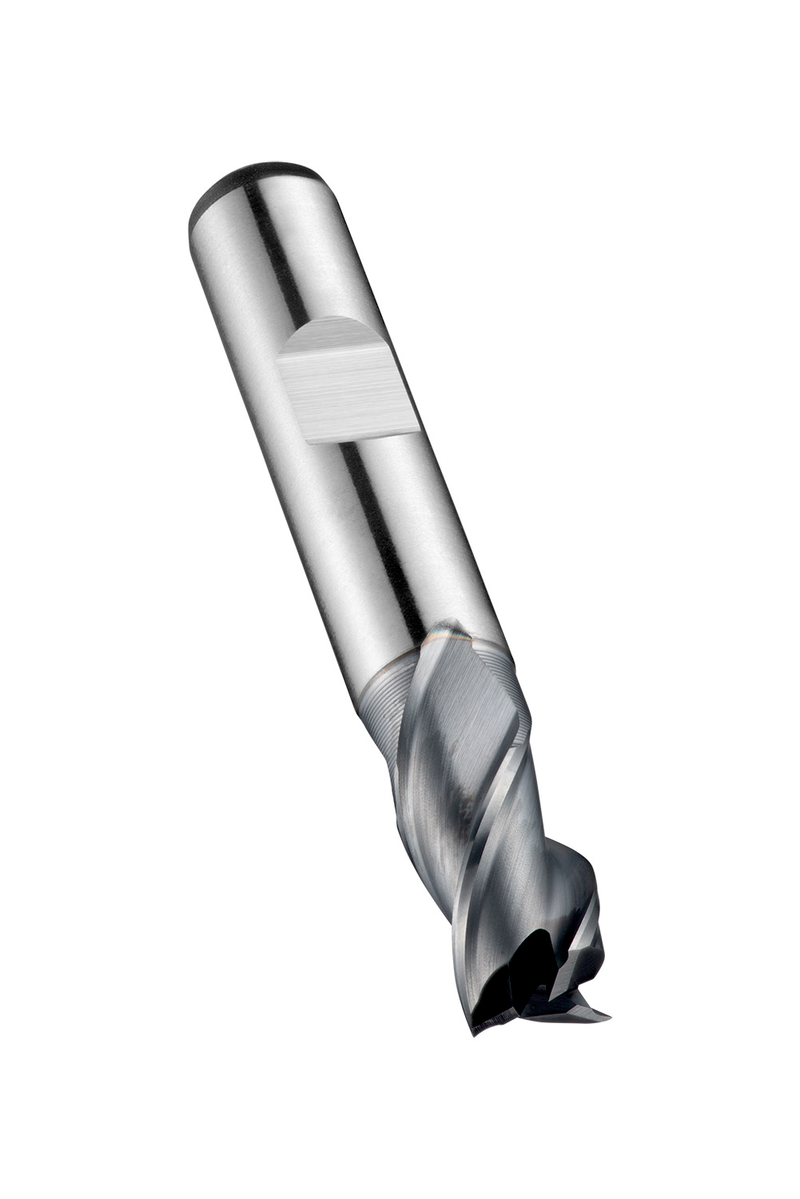

Fraise-mère série extra courte 3 lèvres, diamètre 11mm avec longueur de coupe de 13mm et longueur totale de 70mm, selon la norme DIN 327 D avec une queue Weldon de 12mm, HSS-E métallurgie des poudres avec revêtement Alcrona, hélice de 40° et angle de dépouille de 15° pour le fraisage d'épaulement, le fraisage de rainures et le surfaçage dans l'acier de décolletage, l'acier inoxydable et l'aluminium corroyé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C36711.0
GradeALCRONA
Product Number5983978
Product FamilyC367
Insert Geometry
Depth of Cut Max — in (APMX)0.5118"
Depth of Cut Max — mm (APMX)13.0 mm

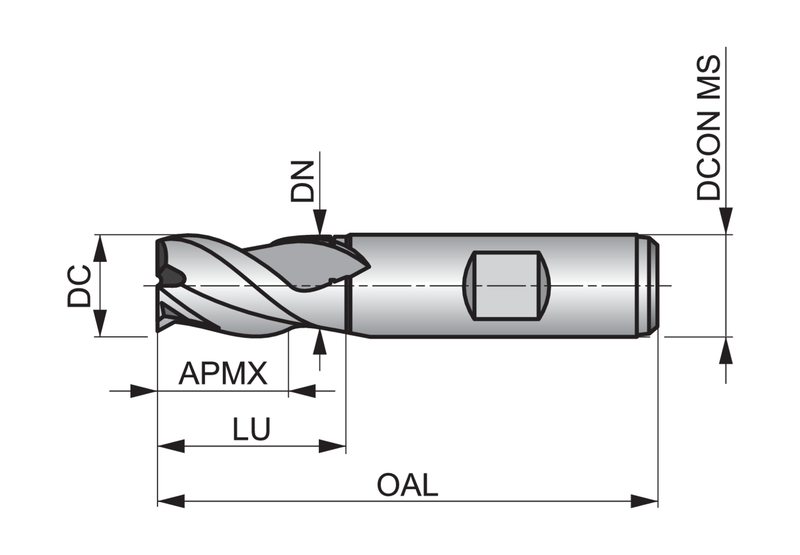

Dimensions
Cutting Diameter — in (DC)0.4331"
Cutting Diameter — mm (DC)11.0 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number355275
EAN7320760355275
File Type Download
C36711.0 — Line Drawing PDF Download
