UGC DOR5983983
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$79.80 CAD - $79.80 CAD
$79.80 CAD
$79.80 CAD - $79.80 CAD
$79.80 CAD

Vendu en lots de : 1

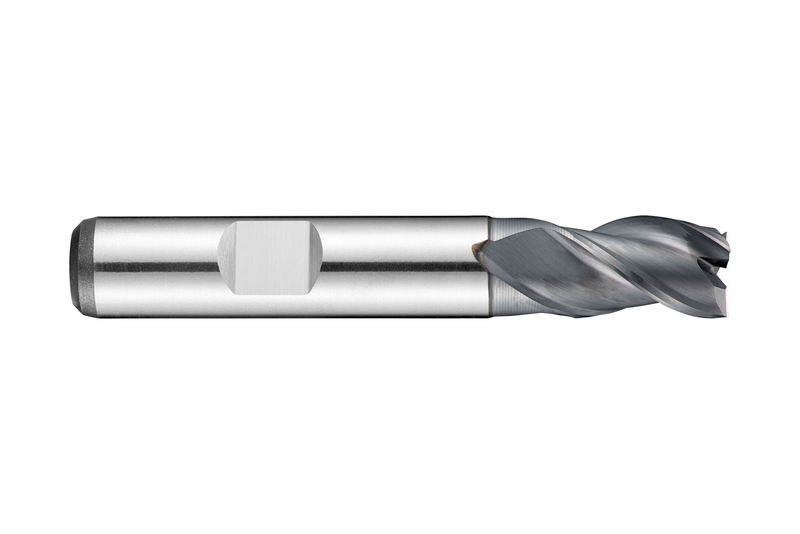

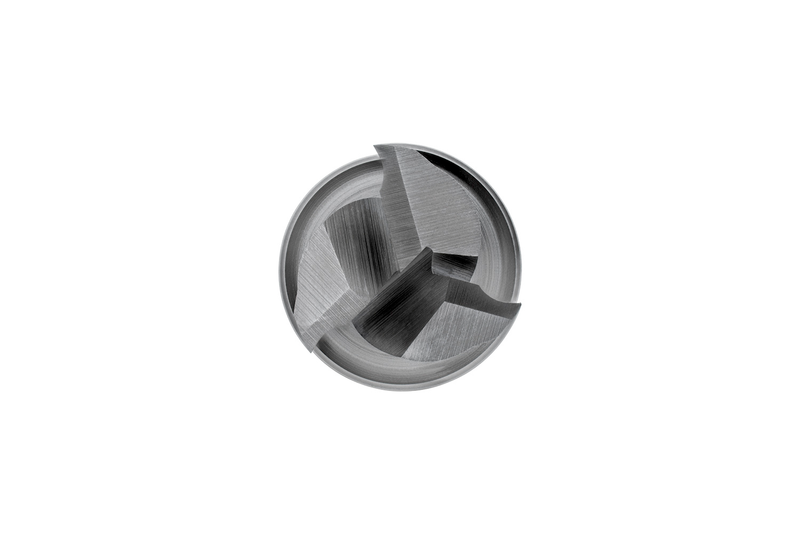

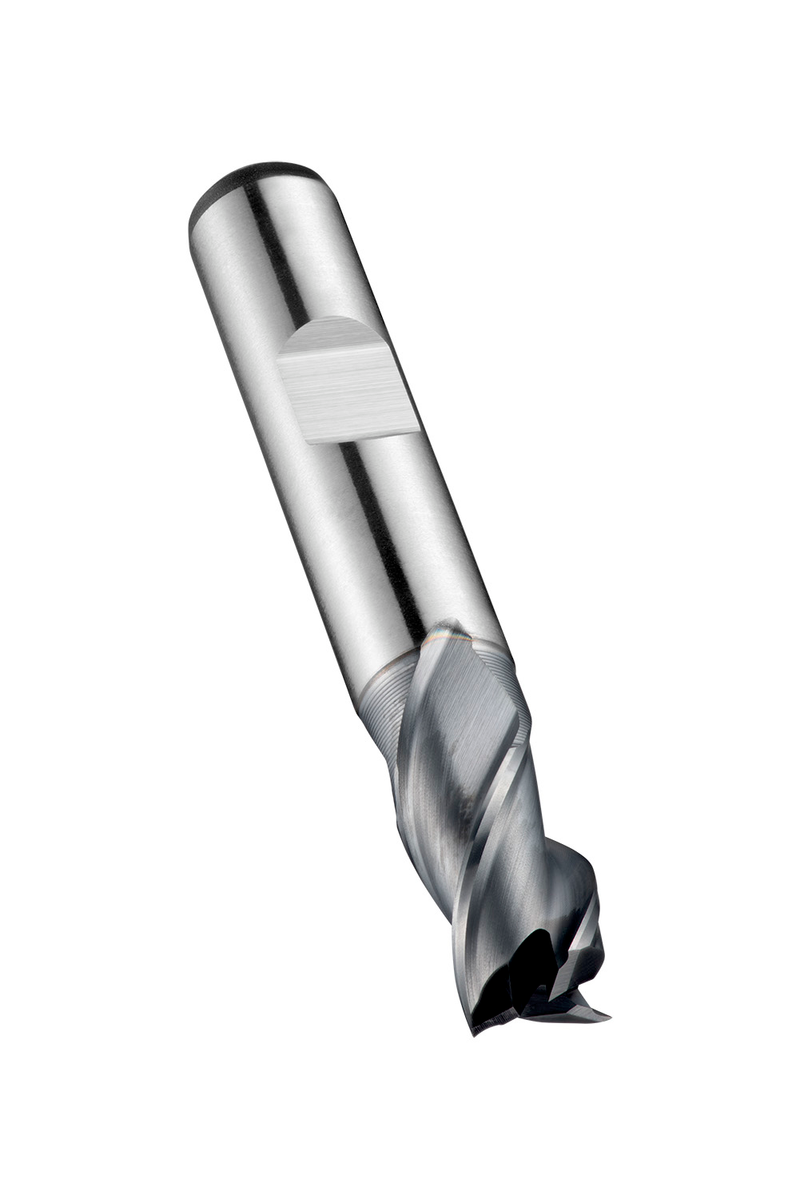

Fraise 3 dents à queue cylindrique avec collet extra-court, diamètre 12mm avec une longueur de coupe de 16mm, une longueur totale de 73mm et un dégagement de 27,5mm, selon la norme DIN 327 D avec une queue Weldon de 12mm, en HSS-E PM avec revêtement Alcrona, hélice à 40° et angle de coupe à 15° pour le fraisage d'épaulement, le fraisage de rainures et le fraisage en plongée dans les aciers de décolletage, les aciers inoxydables et les alliages d'aluminium corroyés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C36712.0
GradeALCRONA
Product Number5983983
Product FamilyC367
Insert Geometry
Depth of Cut Max — in (APMX)0.6299"
Depth of Cut Max — mm (APMX)16.0 mm

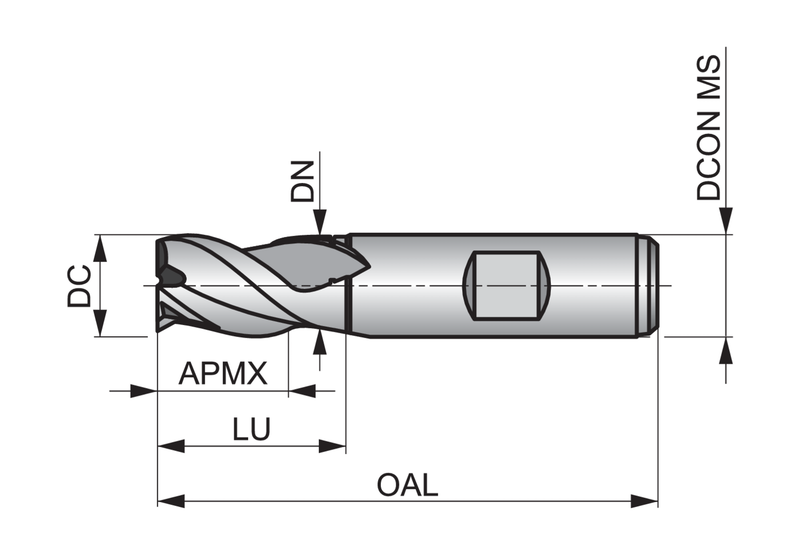

Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)2.874"
Overall Length — mm (OAL)73.0 mm
Usable Length — mm (LU)27.5 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number355282
EAN7320760355282
File Type Download
C36712.0 — Line Drawing PDF Download
