UGC DOR5983994
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$187.20 CAD - $187.20 CAD
$187.20 CAD
$187.20 CAD - $187.20 CAD
$187.20 CAD

Vendu en lots de : 1

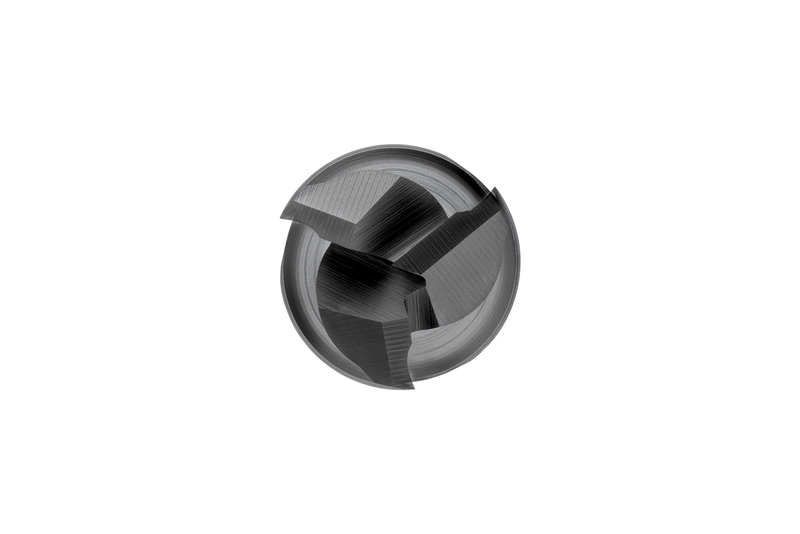

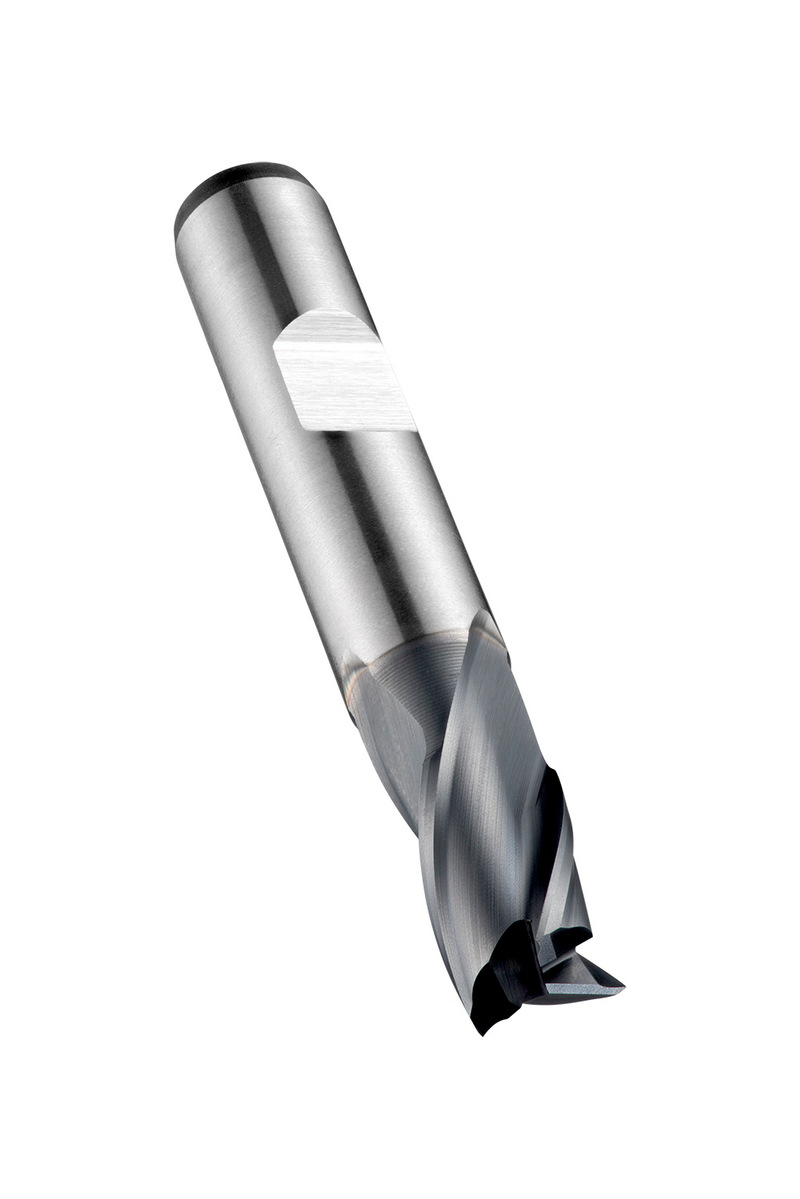

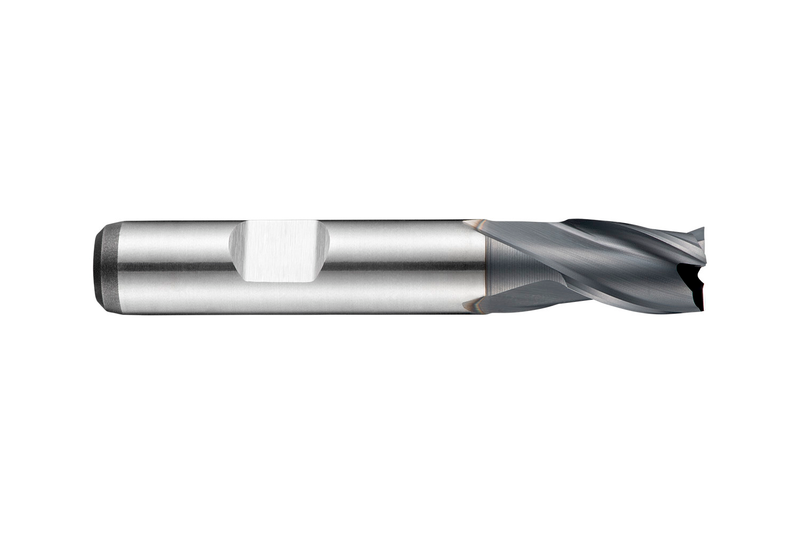

Fraise-scie à trois lèvres série extra courte, diamètre 20 mm, longueur de coupe 22 mm, longueur totale 88 mm et portée 37,5 mm avec dégagement de col, conforme à la norme DIN 327 D, avec queue Weldon 20 mm, en HSS-E métallurgie des poudres avec revêtement Alcrona, hélice 30° et angle de dépouille 12°, pour le fraisage d'épaulements, le fraisage de rainures et l'interpolation hélicoïdale dans l'acier et l'acier moulé, la fonte, le cuivre ou les alliages de cuivre et le titane ou les alliages de titane

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C35320.0
GradeALCRONA
Product Number5983994
Product FamilyC353
Insert Geometry
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm
Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)3.4646"
Overall Length — mm (OAL)88.0 mm
Usable Length — mm (LU)37.5 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue à souder DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number573198
EAN7320760573198
File Type Download
C35320,0 — Line Drawing PDF Download
