UGC DOR5984001
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$120.60 CAD - $120.60 CAD
$120.60 CAD
$120.60 CAD - $120.60 CAD
$120.60 CAD

Vendu en lots de : 1

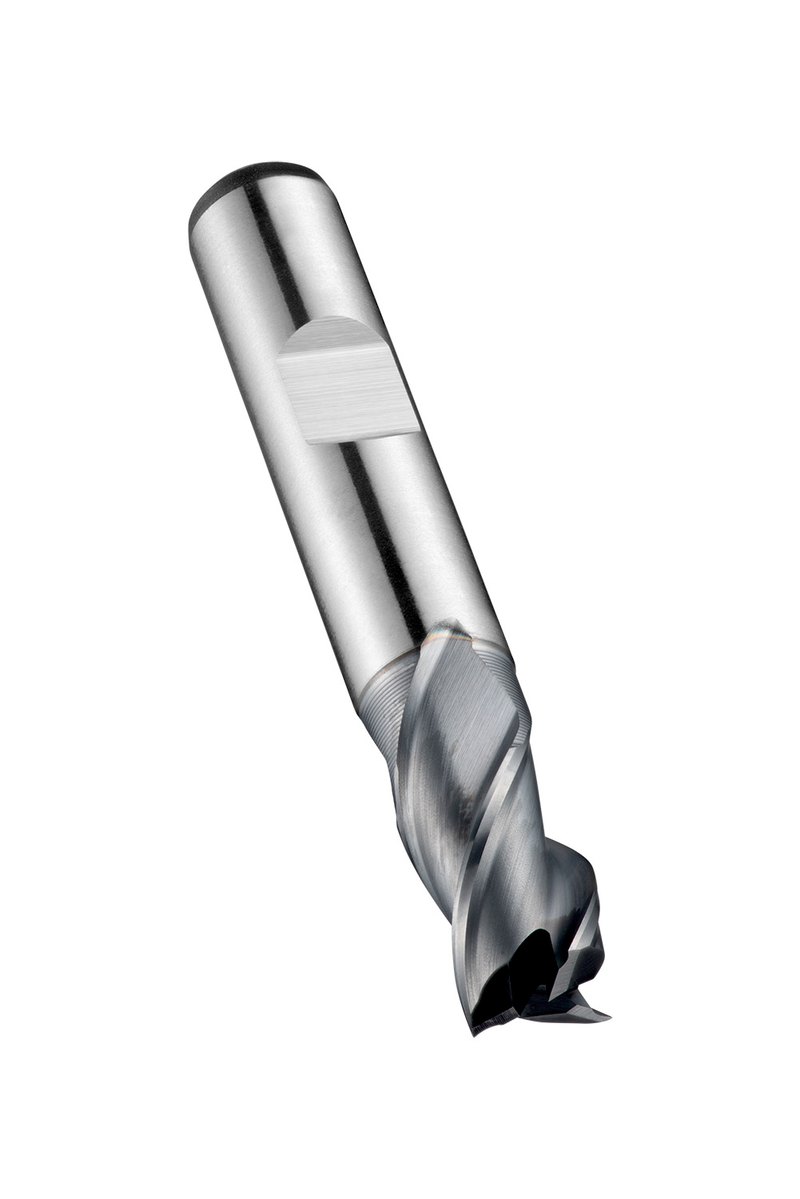

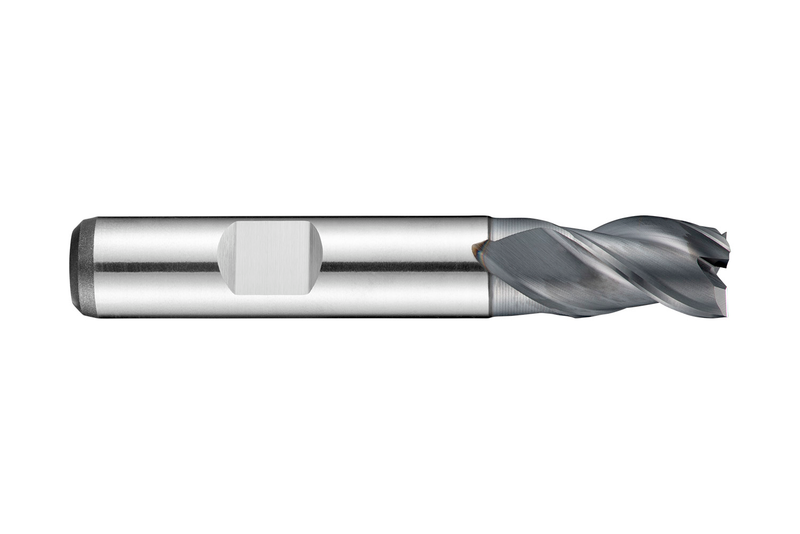

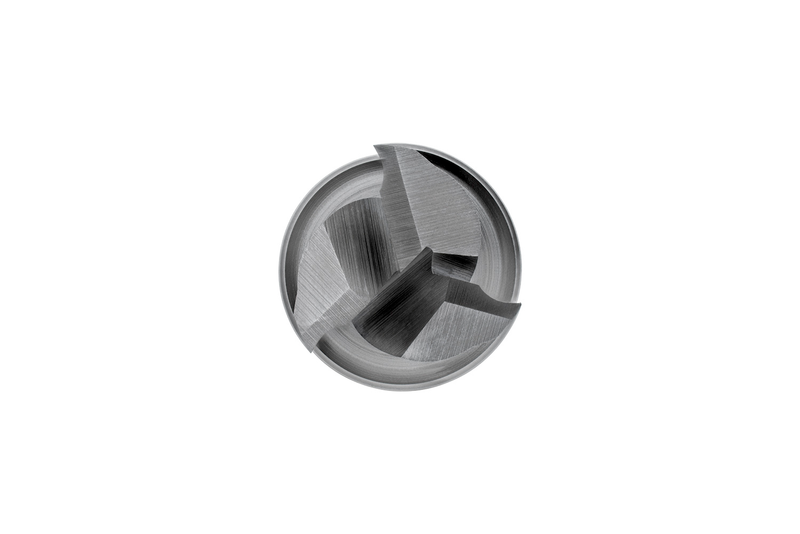

Fraise-scie extra courte à 3 dents, diamètre de 16mm avec une longueur de coupe de 19mm, une longueur totale de 79mm et une portée de 30,5mm avec dégagement de col, conforme à la norme DIN 327 D avec une queue Weldon de 16mm, HSS-E métallurgie des poudres avec revêtement Alcrona, hélice de 40° et angle de coupe de 15° pour le fraisage en bout, le fraisage de rainures et l'interpolation hélicoïdale dans l'acier de décolletage, l'acier inoxydable et l'aluminium corroyé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C36716.0
GradeALCRONA
Product Number5984001
Product FamilyC367
Insert Geometry
Depth of Cut Max — in (APMX)0.748"
Depth of Cut Max — mm (APMX)19.0 mm

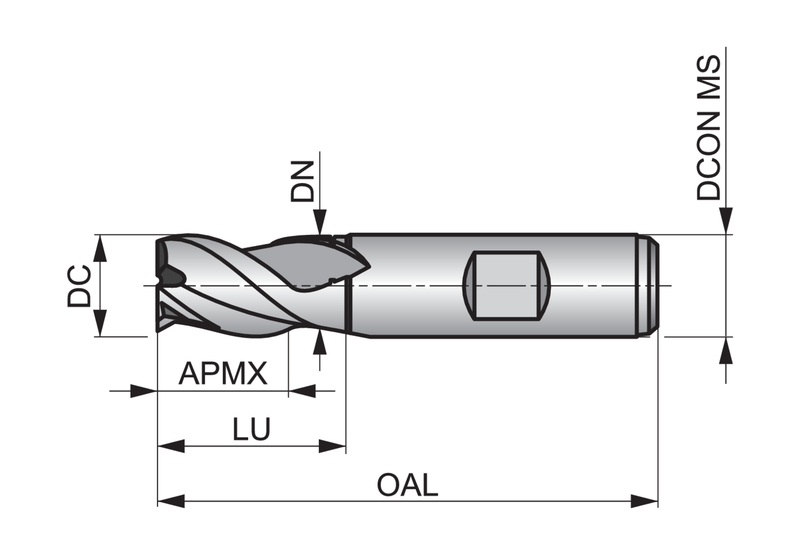

Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)3.1102"
Overall Length — mm (OAL)79.0 mm
Usable Length — mm (LU)30.5 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number355329
EAN7320760355329
File Type Download
C36716.0 — Line Drawing PDF Download
