UGC DOR5984008
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$356.40 CAD - $356.40 CAD
$356.40 CAD
$356.40 CAD - $356.40 CAD
$356.40 CAD

Vendu en lots de : 1

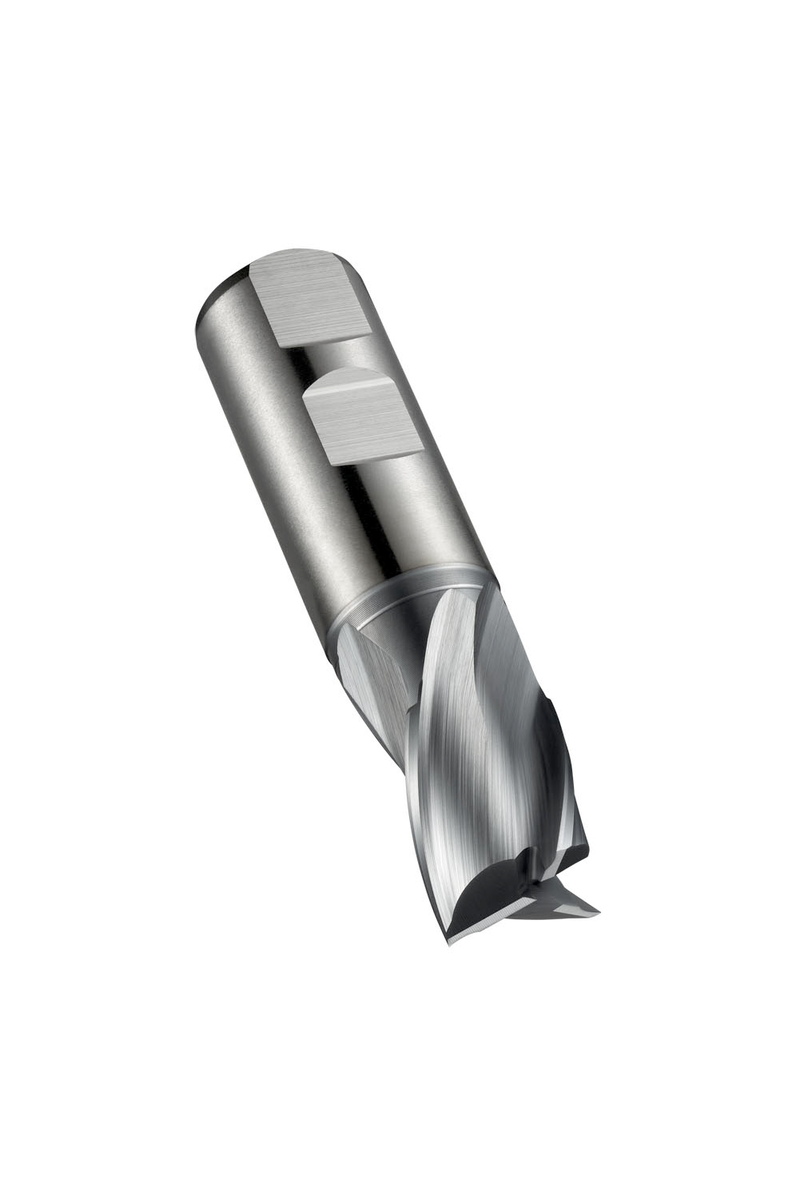

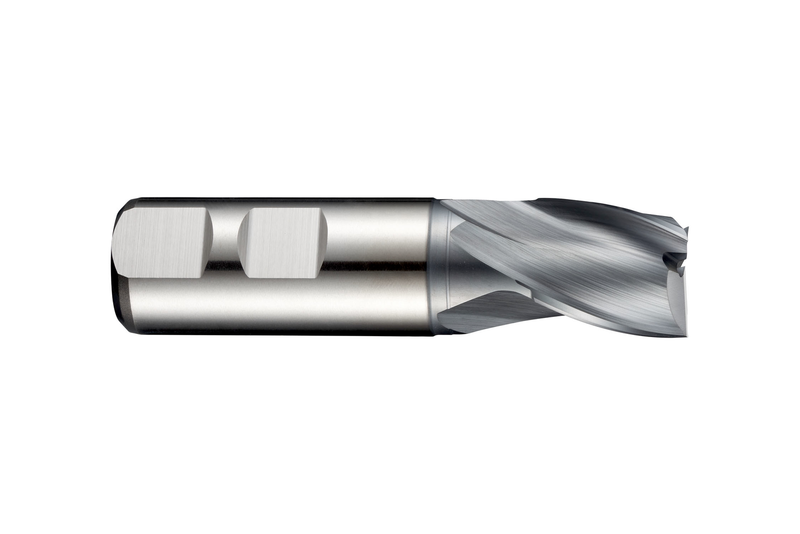

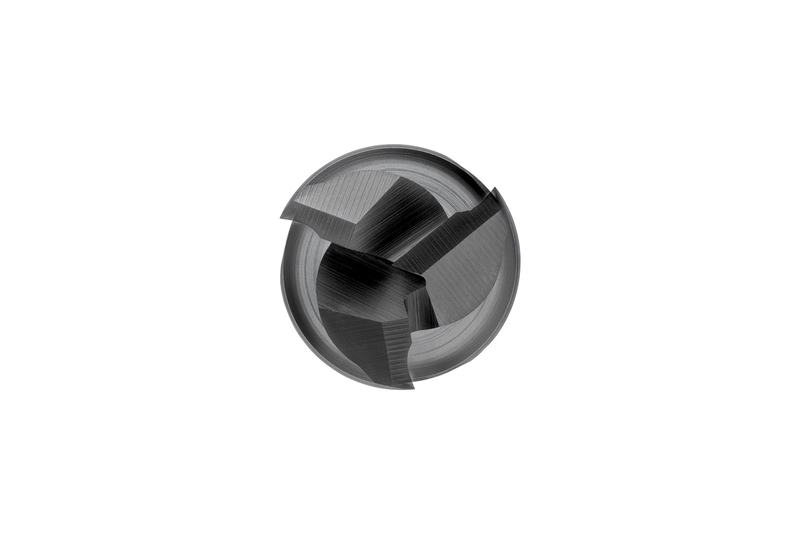

Fraise-scie à rainurer extra courte à 3 arêtes, diamètre 28 mm avec une longueur de coupe de 26 mm, longueur totale de 102 mm et un dégagement de 45,5 mm avec un dégagement de col, selon la norme DIN 327 D avec une queue Weldon de 25 mm, en HSS-E métallurgie des poudres avec revêtement Alcrona, hélice de 30° et angle de dépouille de 12° pour le surfaçage, le rainurage et l'interpolation hélicoïdale dans l'acier et l'acier moulé, la fonte, le cuivre ou les alliages de cuivre et le titane ou les alliages de titane

For more information about this product, click here

Identification
Ordering Code (ANSI)C35328.0
Product Name (ISO)C35328,0
GradeALCRONA
Product Number5984008
Product FamilyC353
Insert Geometry
Depth of Cut Max — in (APMX)1.0236"
Depth of Cut Max — mm (APMX)26.0 mm
Dimensions
Cutting Diameter — in (DC)1.1024"
Cutting Diameter — mm (DC)28.0 mm
Overall Length — in (OAL)4.0157"
Overall Length — mm (OAL)102.0 mm
Usable Length — mm (LU)45.5 mm
Connection Dia. — in (DCON)0.9843"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number573228
EAN7320760573228
File Type Download
C35328.0 — Line Drawing PDF Download
