UGC DOR5984009
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$59.73 CAD - $59.73 CAD
$59.73 CAD
$59.73 CAD - $59.73 CAD
$59.73 CAD

Vendu en lots de : 1

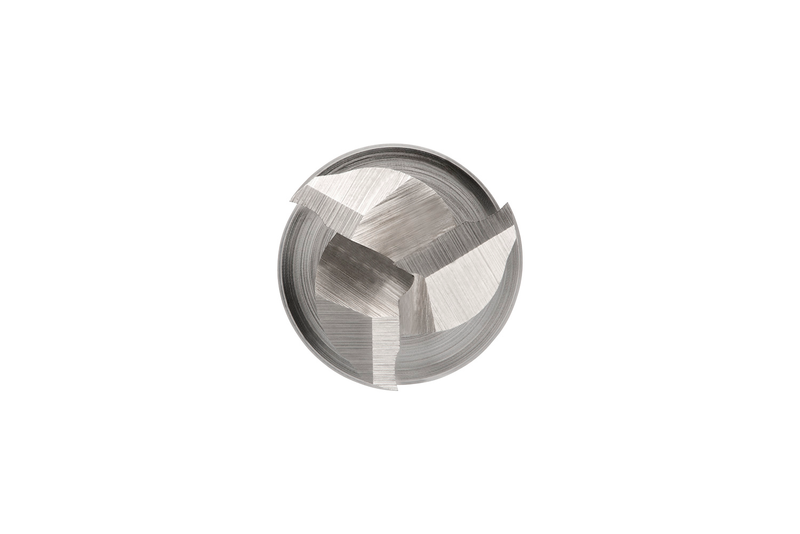

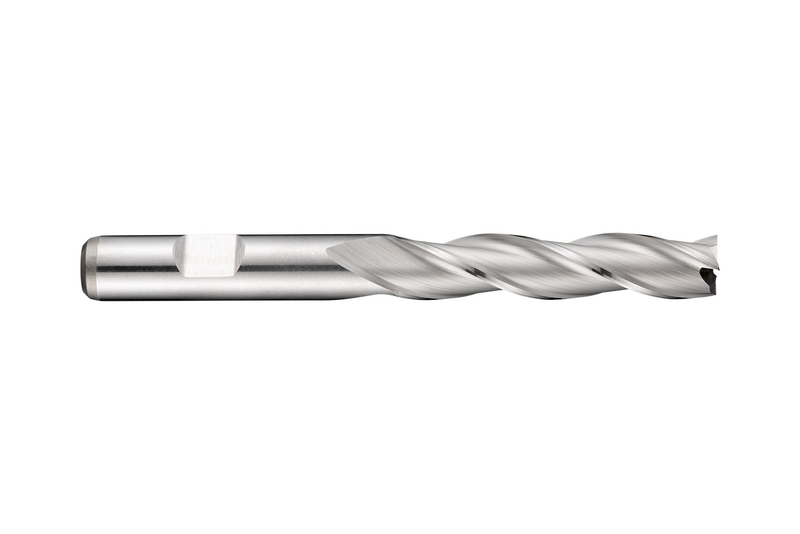

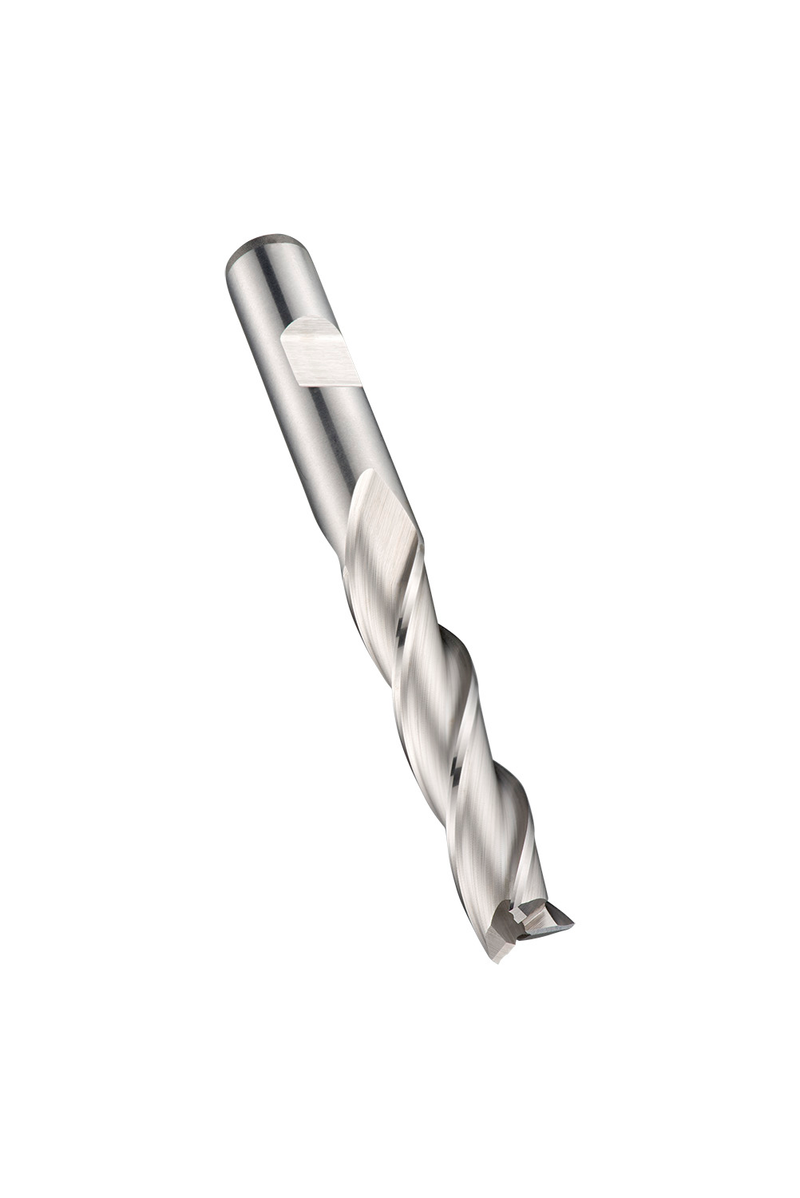

Fraise 3 dents queue longue, diamètre 10mm, longueur de coupe 45mm et longueur totale 95mm, selon norme DIN 844 L avec queue Weldon 10mm, HSS-E cobalt, finition brillante, hélice 30° et angle de dépouille 12° pour le surfaçage-dressage et le rainurage dans l'acier de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C34610.0
GradeLumineux
Product Number5984009
Product FamilyC346

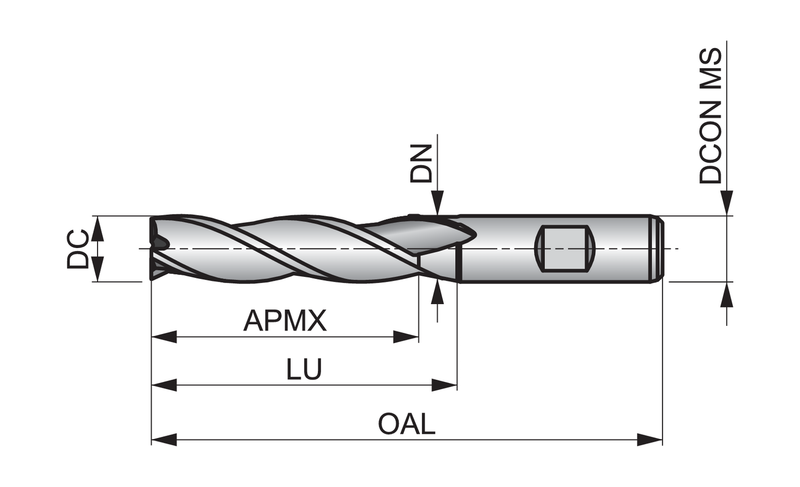

Insert Geometry
Depth of Cut Max — in (APMX)1.7717"
Depth of Cut Max — mm (APMX)45.0 mm
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)3.7402"
Overall Length — mm (OAL)95.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique Weldon DIN 1835B
StandardDIN 844 L
Reference Numbers
EDP Number126233
EAN7320760126233
File Type Download
C34610.0 — Line Drawing PDF Download
