UGC DOR5984013
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$62.40 CAD - $62.40 CAD
$62.40 CAD
$62.40 CAD - $62.40 CAD
$62.40 CAD

Vendu en lots de : 1

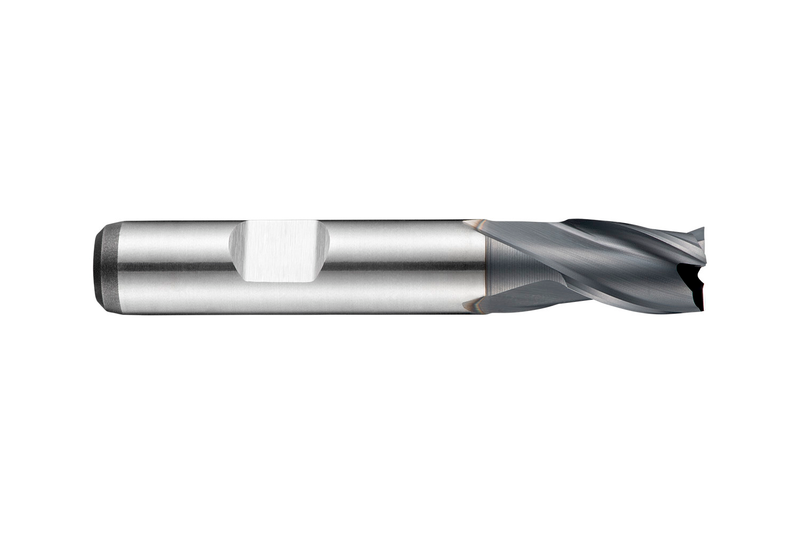

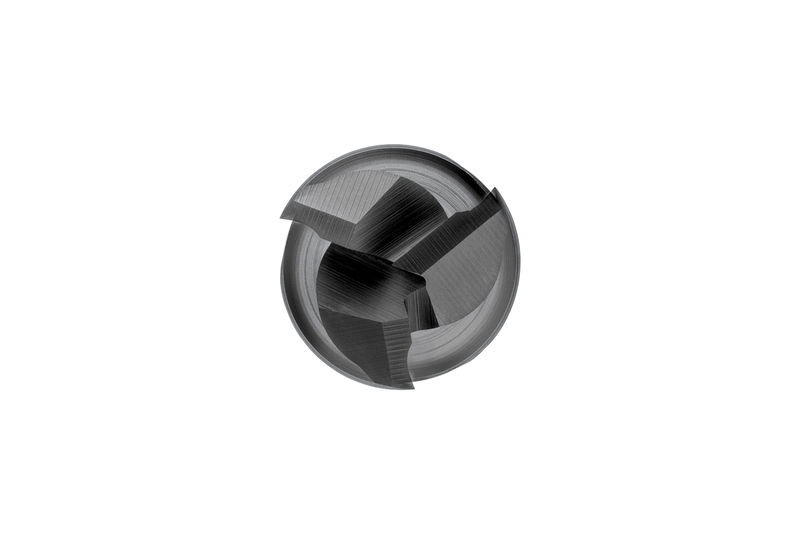

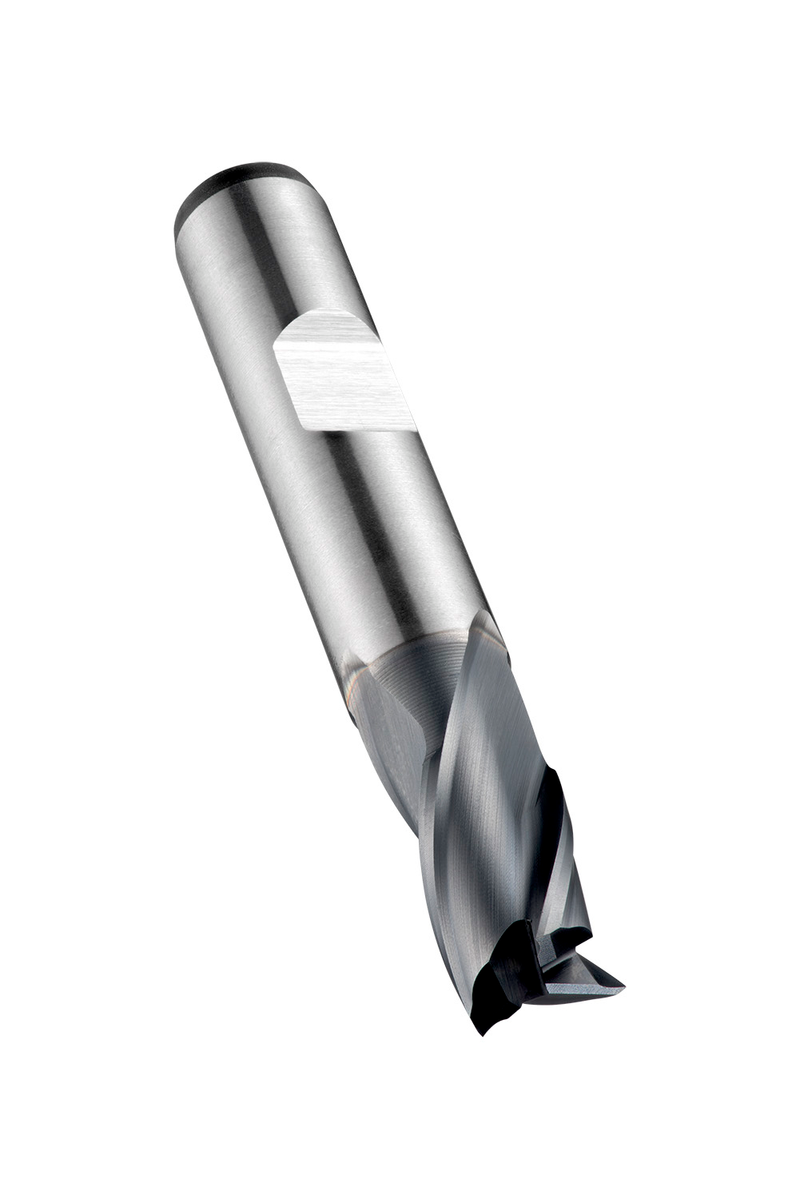

Fraise-scie extra courte à 3 dents, diamètre de 3mm, longueur de coupe de 5mm et longueur totale de 49mm, conforme à la norme DIN 327 D avec une queue Weldon de 6mm, en HSS-E métallurgie des poudres avec revêtement Alcrona, hélice à 30° et angle de coupe de 12° pour le fraisage d'épaulement, le fraisage de rainures et l'interpolation hélicoïdale dans l'acier et l'acier moulé, la fonte, le cuivre ou les alliages de cuivre et le titane ou les alliages de titane

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C3533.0
GradeALCRONA
Product Number5984013
Product FamilyC353
Insert Geometry
Depth of Cut Max — in (APMX)0.1969"
Depth of Cut Max — mm (APMX)5.0 mm
Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)1.9291"
Overall Length — mm (OAL)49.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number573235
EAN7320760573235
File Type Download
C3533.0 — Line Drawing PDF Download
