UGC DOR5984014
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$77.17 CAD - $77.17 CAD
$77.17 CAD
$77.17 CAD - $77.17 CAD
$77.17 CAD

Vendu en lots de : 1

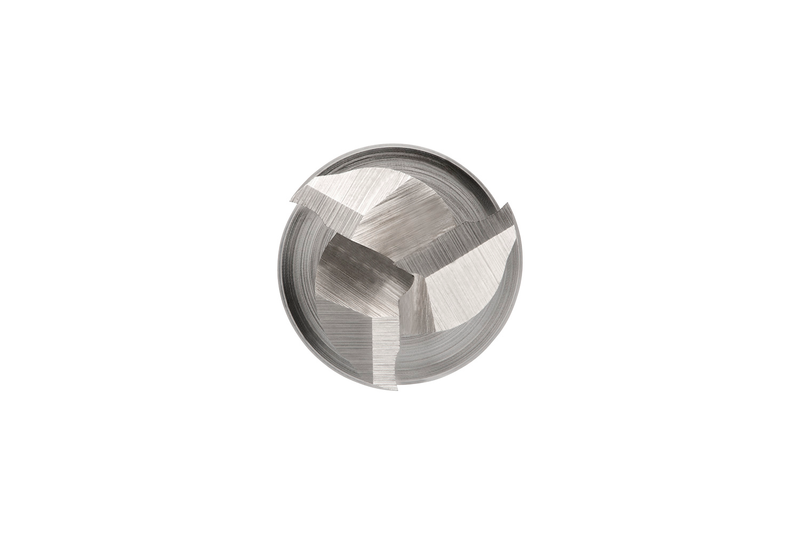

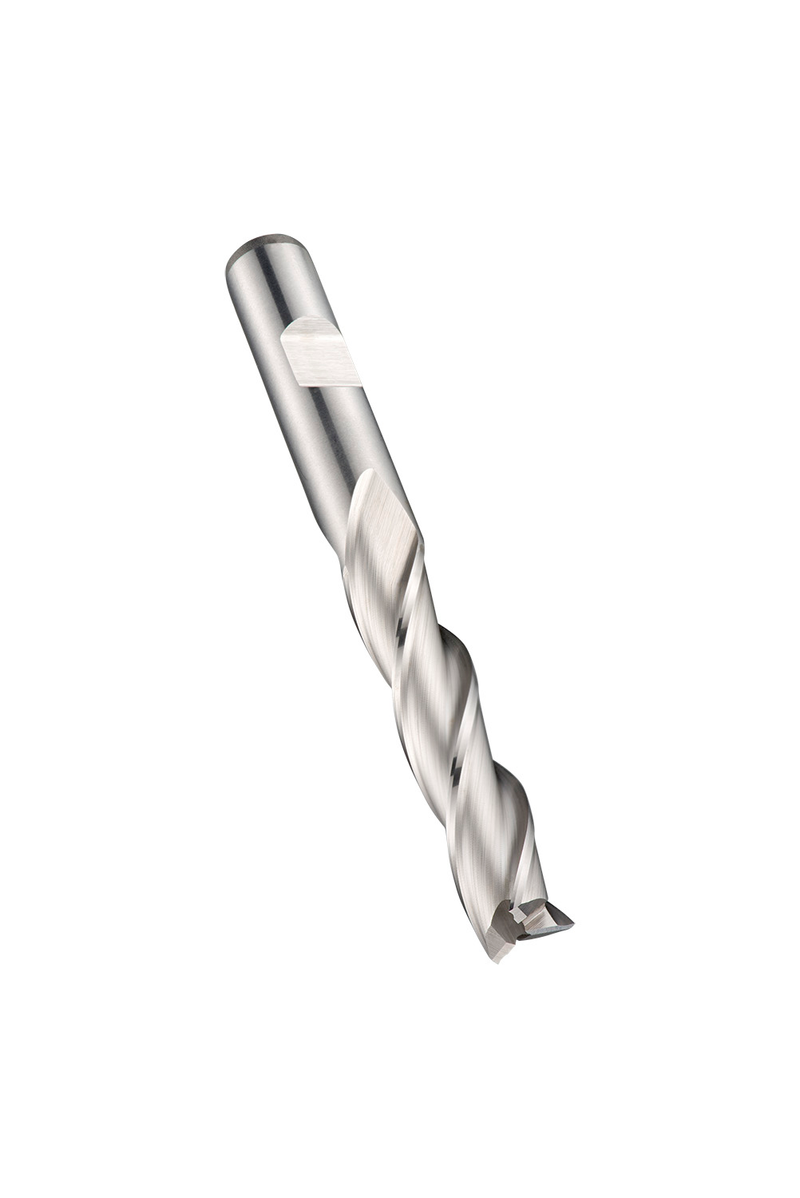

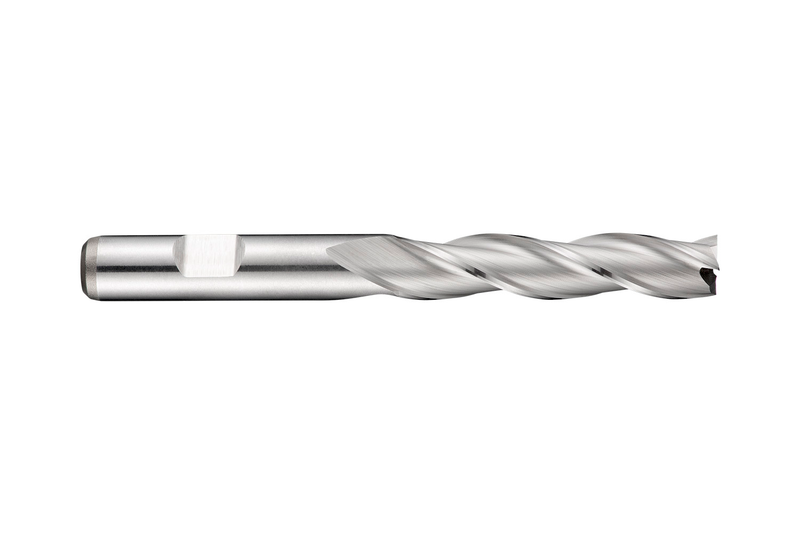

Fraise trois tailles à queue longue, diamètre 11mm avec une longueur de coupe de 45mm et une longueur totale de 102mm, conforme à la norme DIN 844 L avec un queue Weldon de 12mm, en HSS-E au cobalt avec finition brillante, hélice de 30° et angle de dépouille de 12° pour le fraisage en bout et l'usinage de rainures dans l'acier de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C34611.0
GradeLumineux
Product Number5984014
Product FamilyC346
Insert Geometry
Depth of Cut Max — in (APMX)1.7717"
Depth of Cut Max — mm (APMX)45.0 mm

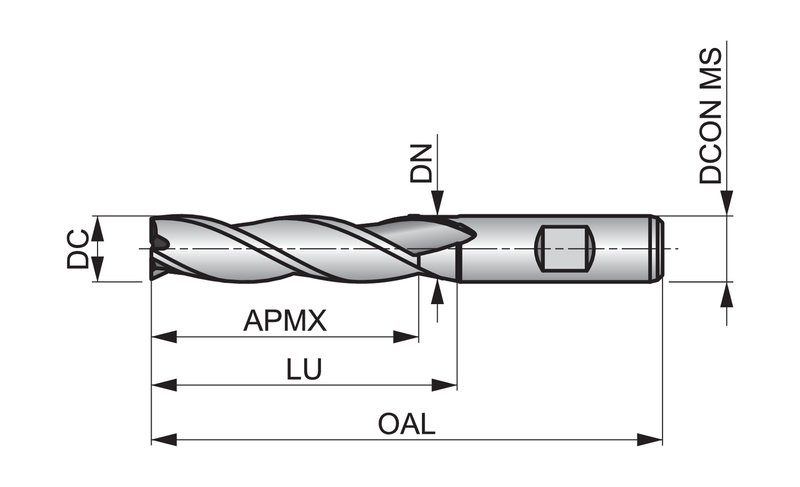

Dimensions
Cutting Diameter — in (DC)0.4331"
Cutting Diameter — mm (DC)11.0 mm
Overall Length — in (OAL)4.0157"
Overall Length — mm (OAL)102.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 L
Reference Numbers
EDP Number126240
EAN7320760126240
File Type Download
C34611.0 — Line Drawing PDF Download
