UGC DOR5984020
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$160.20 CAD - $160.20 CAD
$160.20 CAD
$160.20 CAD - $160.20 CAD
$160.20 CAD

Vendu en lots de : 1

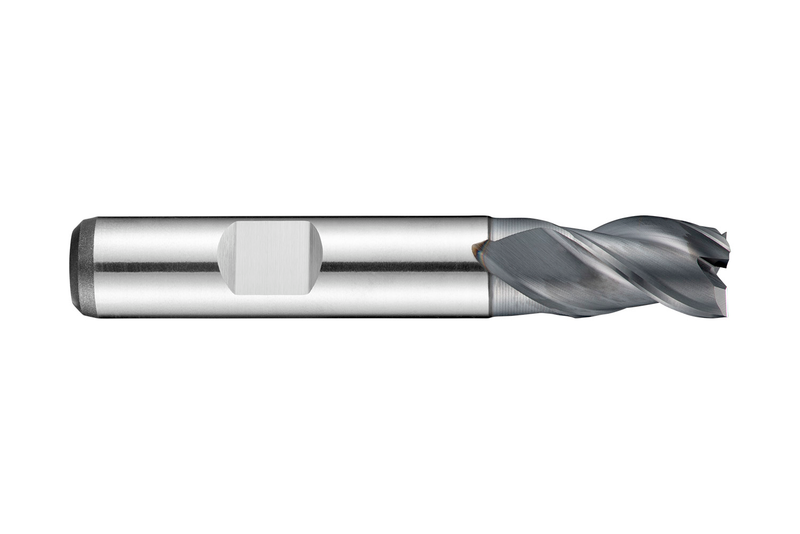

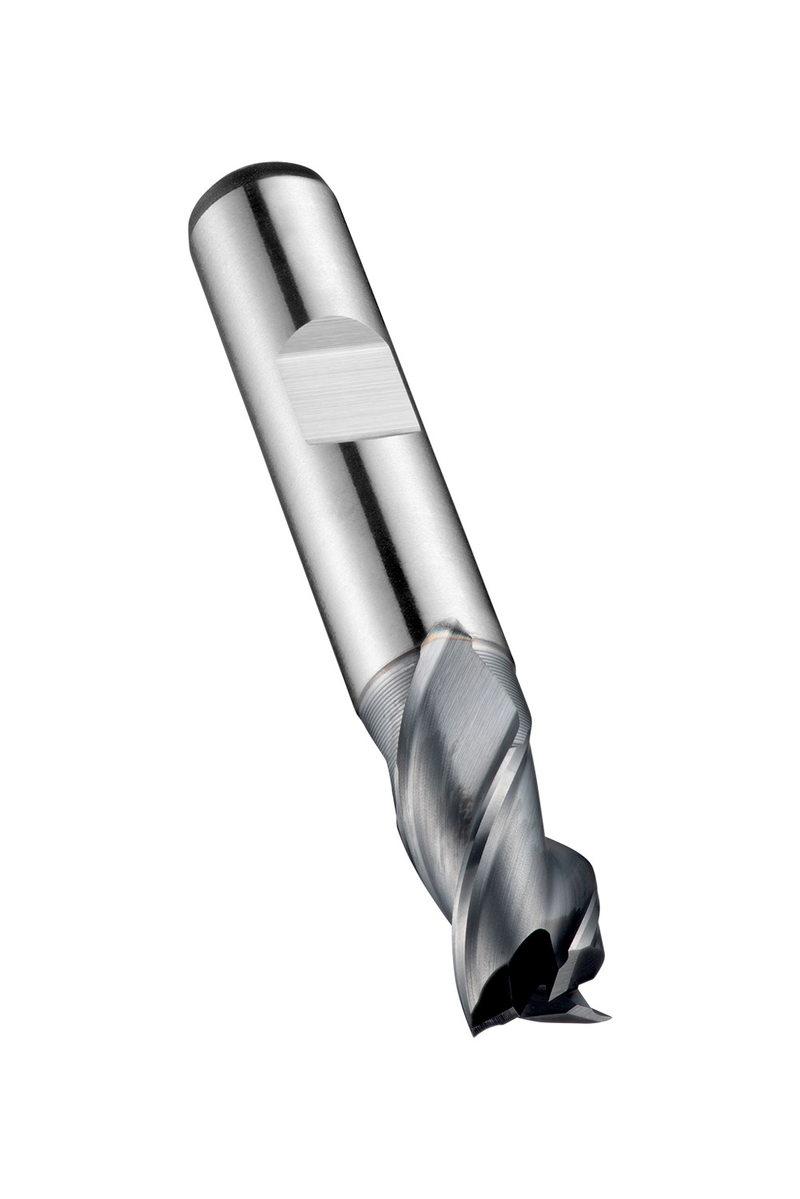

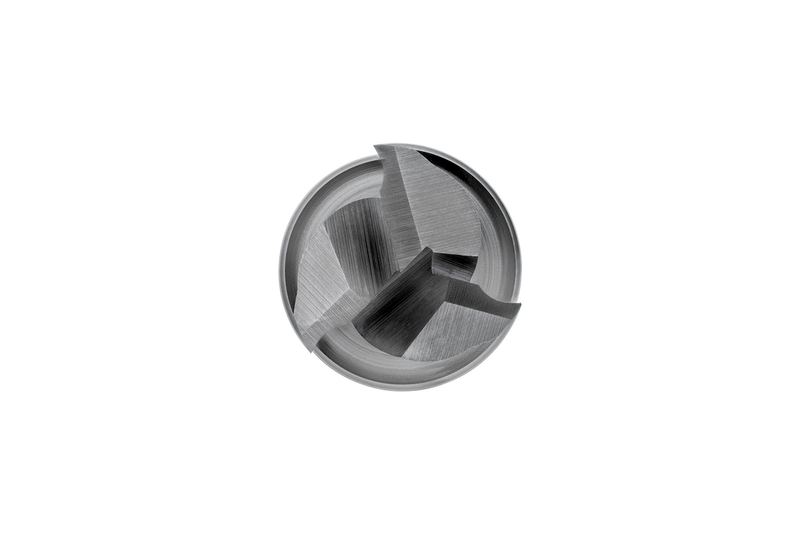

Fraise-scie extra-courte à 3 dents, diamètre 20mm, longueur de coupe 22mm, longueur totale 88mm et longueur utile 37.5mm avec dégagement, selon la norme DIN 327 D avec une queue Weldon de 20mm, en HSS-E métallurgie des poudres avec revêtement Alcrona, hélice 40° et angle de dépouille 15° pour le fraisage d'épaulements, le fraisage de rainures et l'interpolation hélicoïdale dans les aciers à usinage libre, les aciers inoxydables et l'aluminium corroyé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C36720.0
GradeALCRONA
Product Number5984020
Product FamilyC367
Insert Geometry
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm

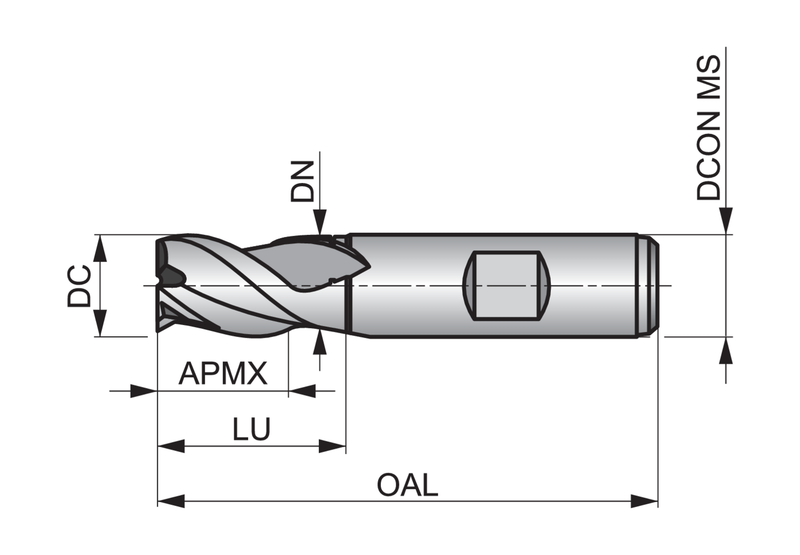

Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)3.4646"
Overall Length — mm (OAL)88.0 mm
Usable Length — mm (LU)37.5 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)40.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number355343
EAN7320760355343
File Type Download
C36720.0 — Line Drawing PDF Download
