UGC DOR5984022
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$158.04 CAD - $158.04 CAD
$158.04 CAD
$158.04 CAD - $158.04 CAD
$158.04 CAD

Vendu en lots de : 1

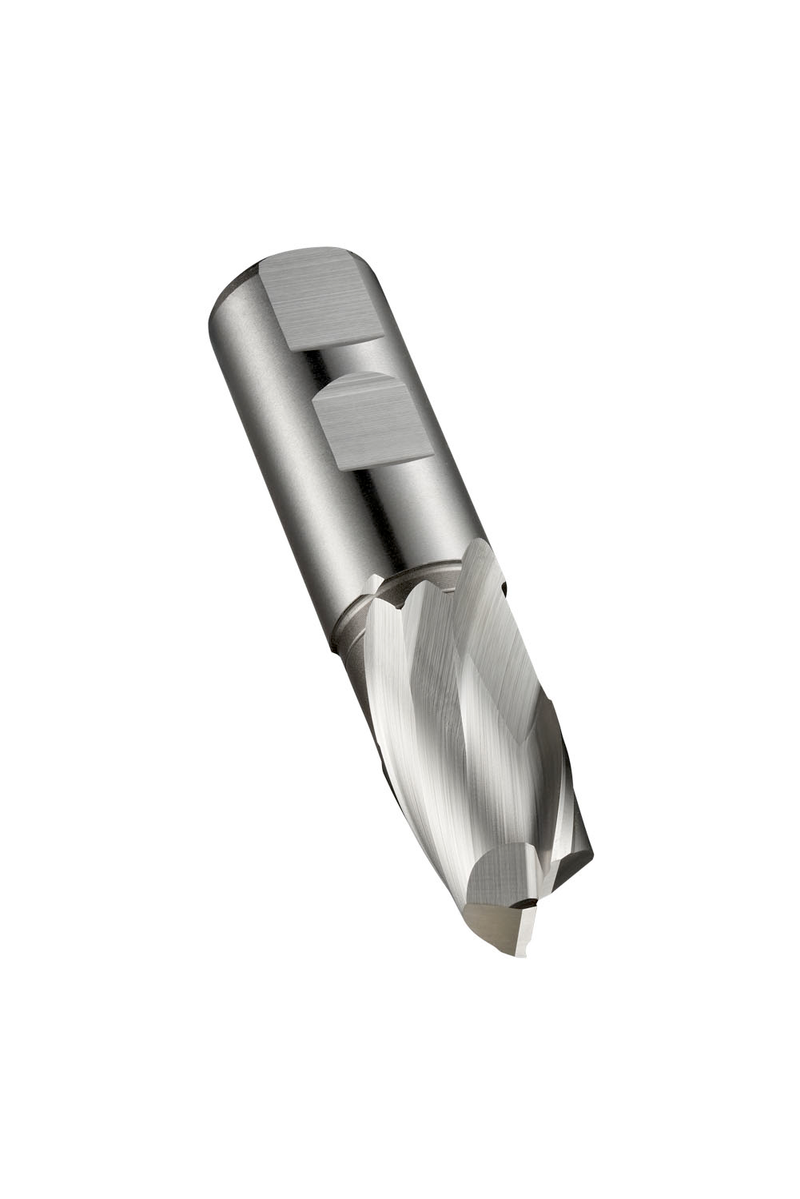

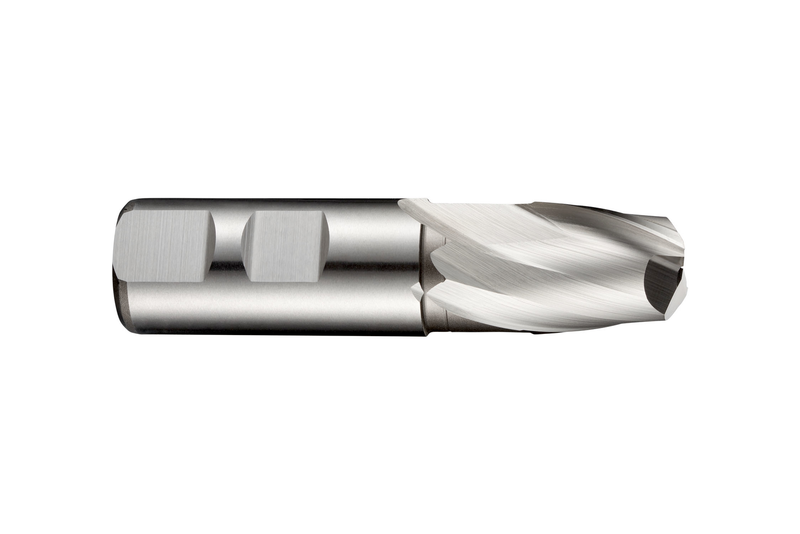

Fraise-scie à rainurer extra-courte à 2 dents, diamètre 26 mm avec longueur de coupe de 26 mm, longueur totale de 102 mm et portée de 45,5 mm avec dégagement de collet, selon la norme DIN 327 D avec une queue Weldon de 25 mm, HSS-E métallurgie des poudres avec finition brillante, hélice de 30° et angle de coupe de 12° pour le fraisage d'épaulement, le fraisage de rainures et le fraisage en rampe dans l'acier de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C11026.0
GradeLumineux
Product Number5984022
Product FamilyC110
Insert Geometry
Depth of Cut Max — in (APMX)1.0236"
Depth of Cut Max — mm (APMX)26.0 mm
Dimensions
Cutting Diameter — in (DC)1.0236"
Cutting Diameter — mm (DC)26.0 mm
Overall Length — in (OAL)4.0157"
Overall Length — mm (OAL)102.0 mm
Usable Length — mm (LU)45.5 mm
Connection Dia. — in (DCON)0.9843"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number628980
EAN7320760628980
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
File Type Download
C11026.0 — Line Drawing PDF Download
