UGC DOR5984023
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$367.20 CAD - $367.20 CAD
$367.20 CAD
$367.20 CAD - $367.20 CAD
$367.20 CAD

Vendu en lots de : 1

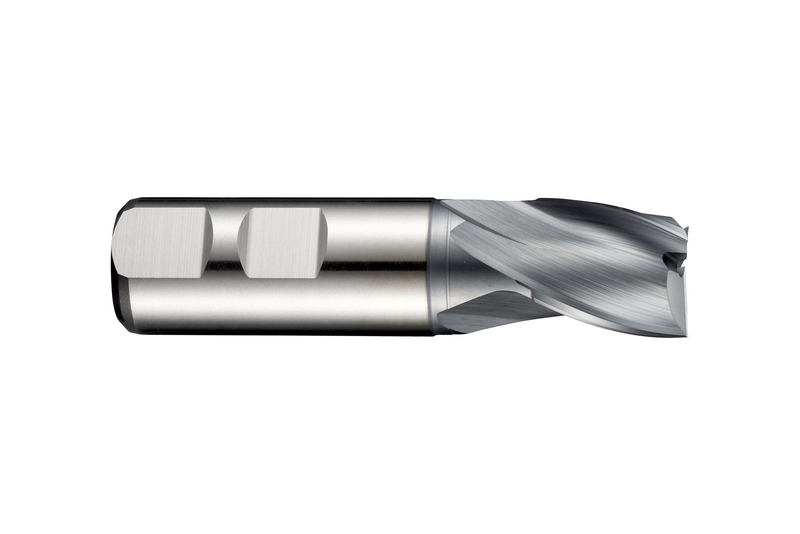

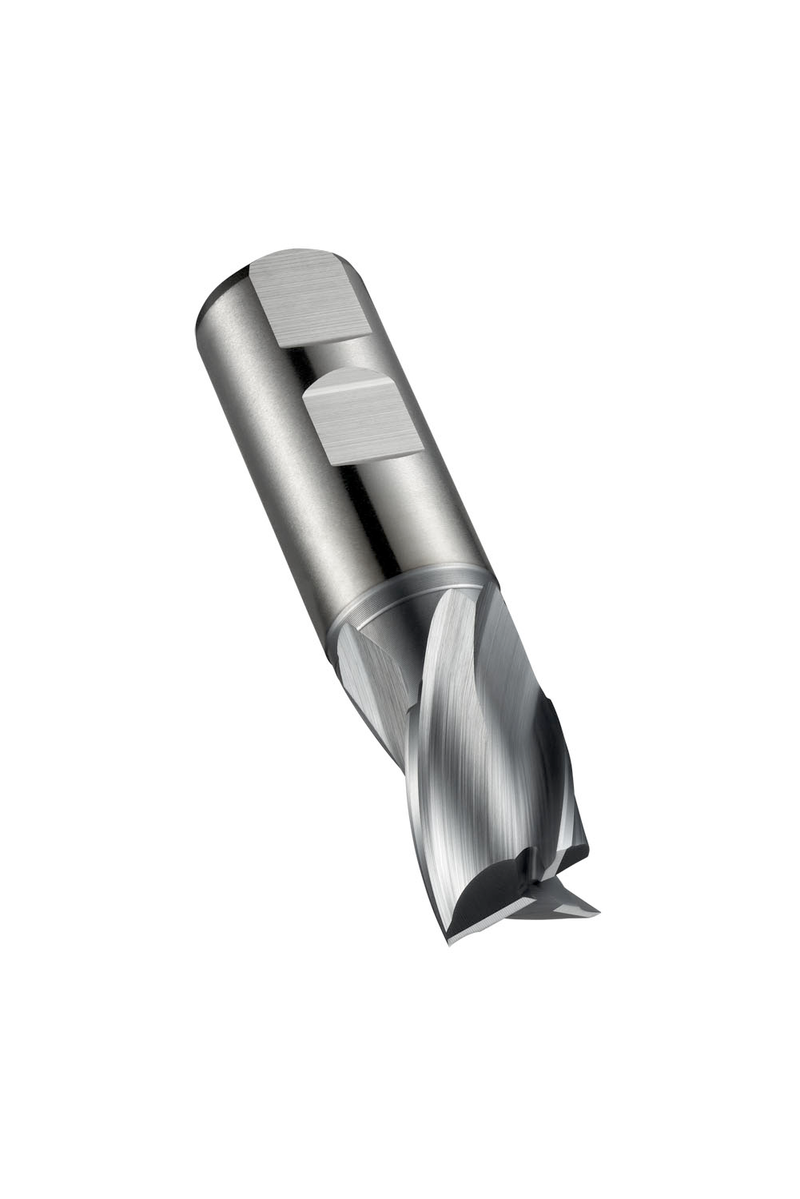

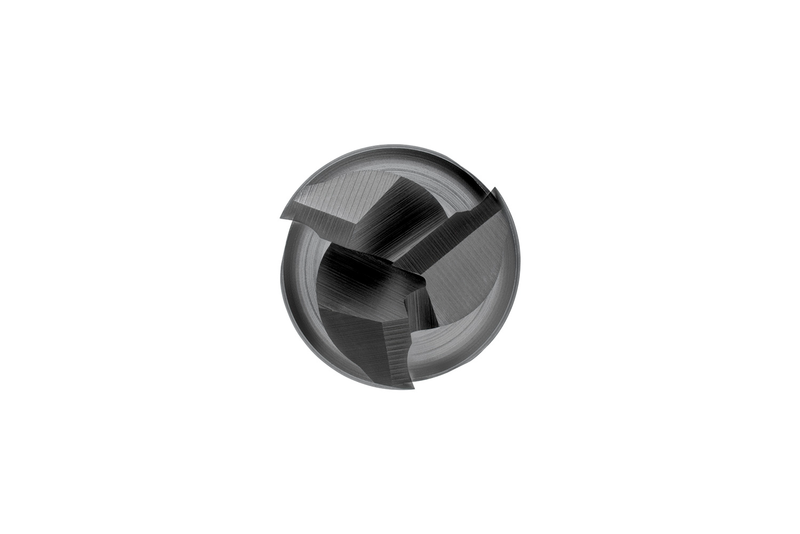

Fraise à rainurer à queue cylindrique 3 dents, série extra-courte, diamètre 30mm avec une longueur de coupe de 26mm, longueur totale 102mm et une longueur utile de 45.5mm avec dégagement, selon la norme DIN 327 D avec un queue Weldon de 25mm, en HSS-E PM avec revêtement Alcrona, hélice 30° et angle de dépouille 12° pour le fraisage d'épaulements, le fraisage de rainures et le fraisage en plongée dans l'acier et l'acier moulé, la fonte, le cuivre ou les alliages de cuivre et le titane ou les alliages de titane

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C35330.0
GradeALCRONA
Product Number5984023
Product FamilyC353
Insert Geometry
Depth of Cut Max — in (APMX)1.0236"
Depth of Cut Max — mm (APMX)26.0 mm
Dimensions
Cutting Diameter — in (DC)1.1811"
Cutting Diameter — mm (DC)30.0 mm
Overall Length — in (OAL)4.0157"
Overall Length — mm (OAL)102.0 mm
Usable Length — mm (LU)45.5 mm
Connection Dia. — in (DCON)0.9843"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number573259
EAN7320760573259
File Type Download
C35330.0 — Line Drawing PDF Download
